Instructions

Everything you need to set up your FaceFocusVR kit. Read each step carefully and don't rush!
If you need any help, join the Discord

This section is coming soon. Join our Discord for updates.

Required Tools

  • M3 Allen key (hex key)
  • T5 Torx screwdriver
  • (Self-holding) Tweezers optional but recommended
  1. 1

    Preparation

    Before you begin, prepare your headset by adjusting a few settings and removing detachable parts.

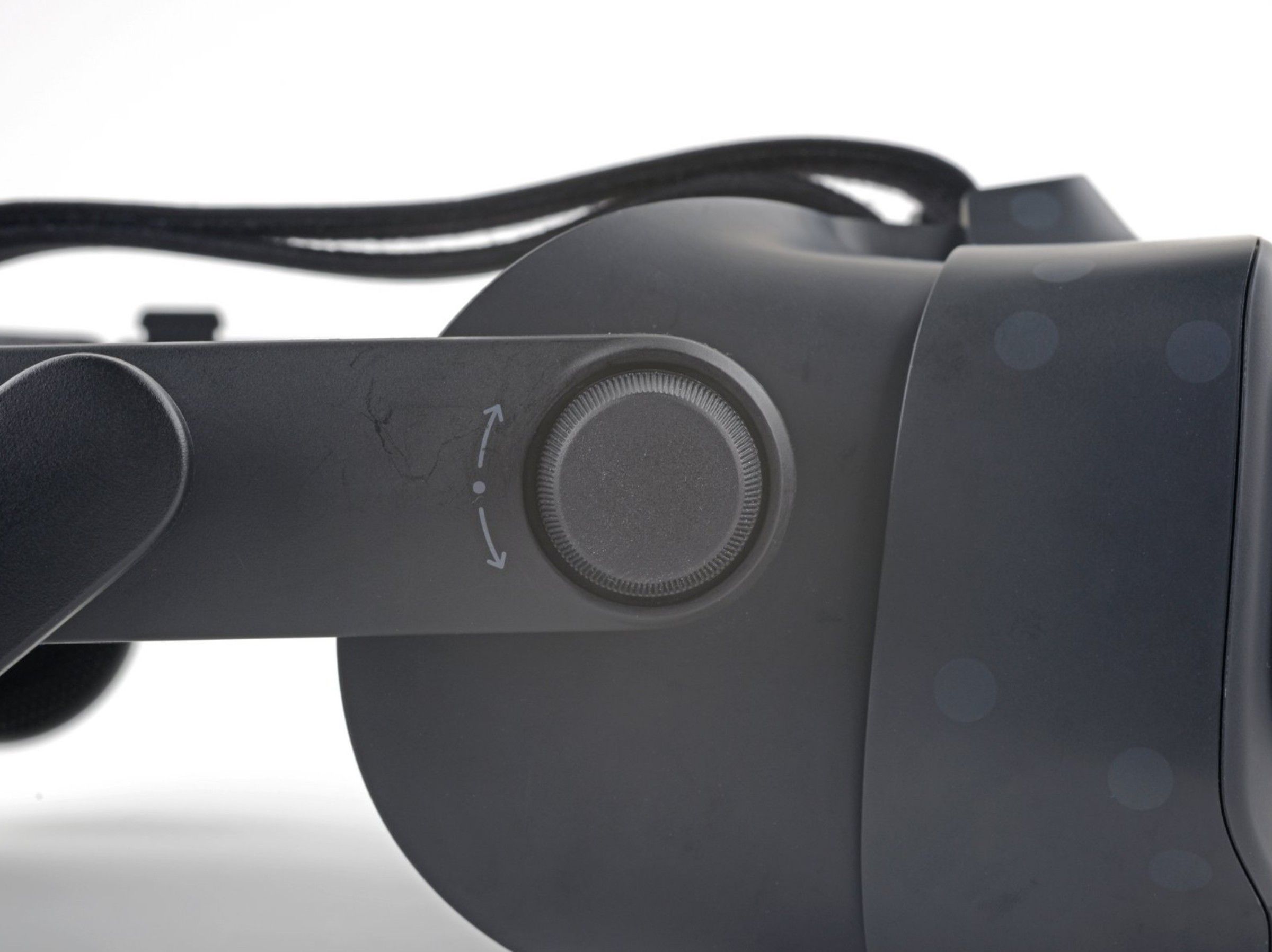

    FOV adjustment knob on the Valve Index

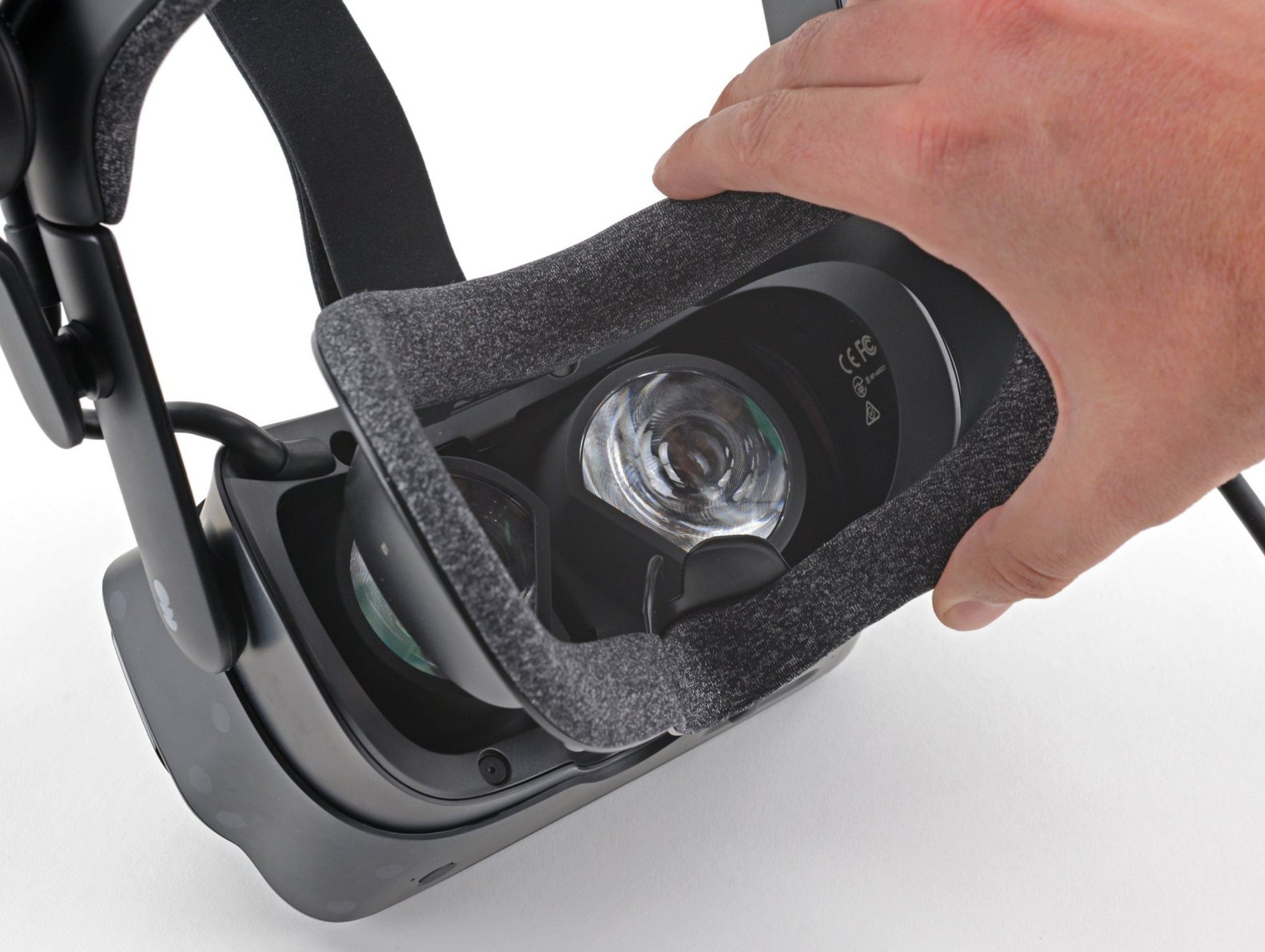

    Removing the magnetic face cushion

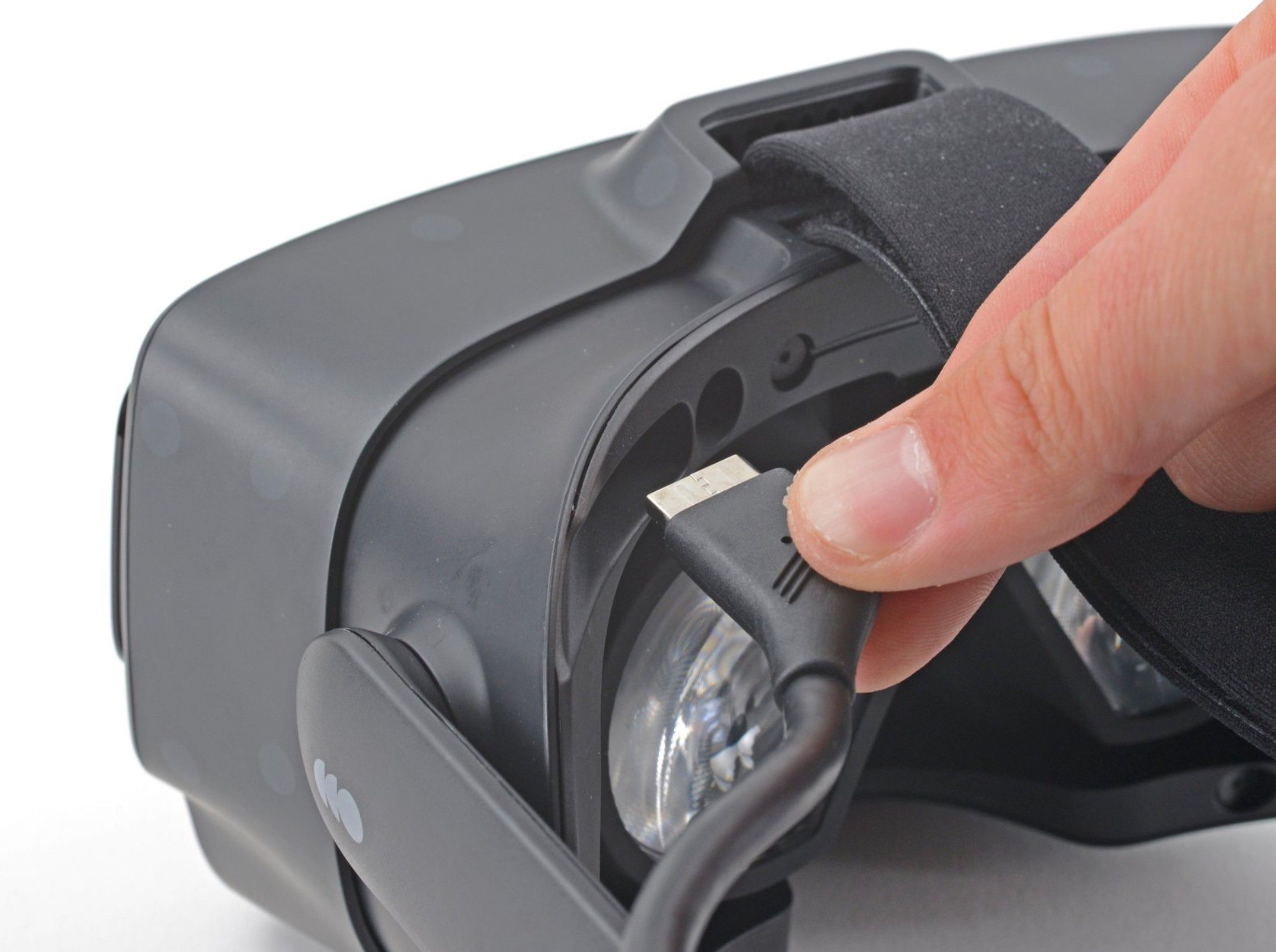

    Pulling the tether cable out of the headset
    1 / 3
    • Rotate the field-of-view adjustment knob clockwise until it is fully extended.
    • Set the IPD to its minimum value (lenses fully inward).
    • Remove the magnetic face cushion.
    • Gently pull the tether cable straight out of the headset (only the cable itself; there's no need to remove the cable clips from the head strap).
  2. 2

    Remove the Face Gasket Bezel

    The face gasket bezel needs to come off so you can access the internal components.

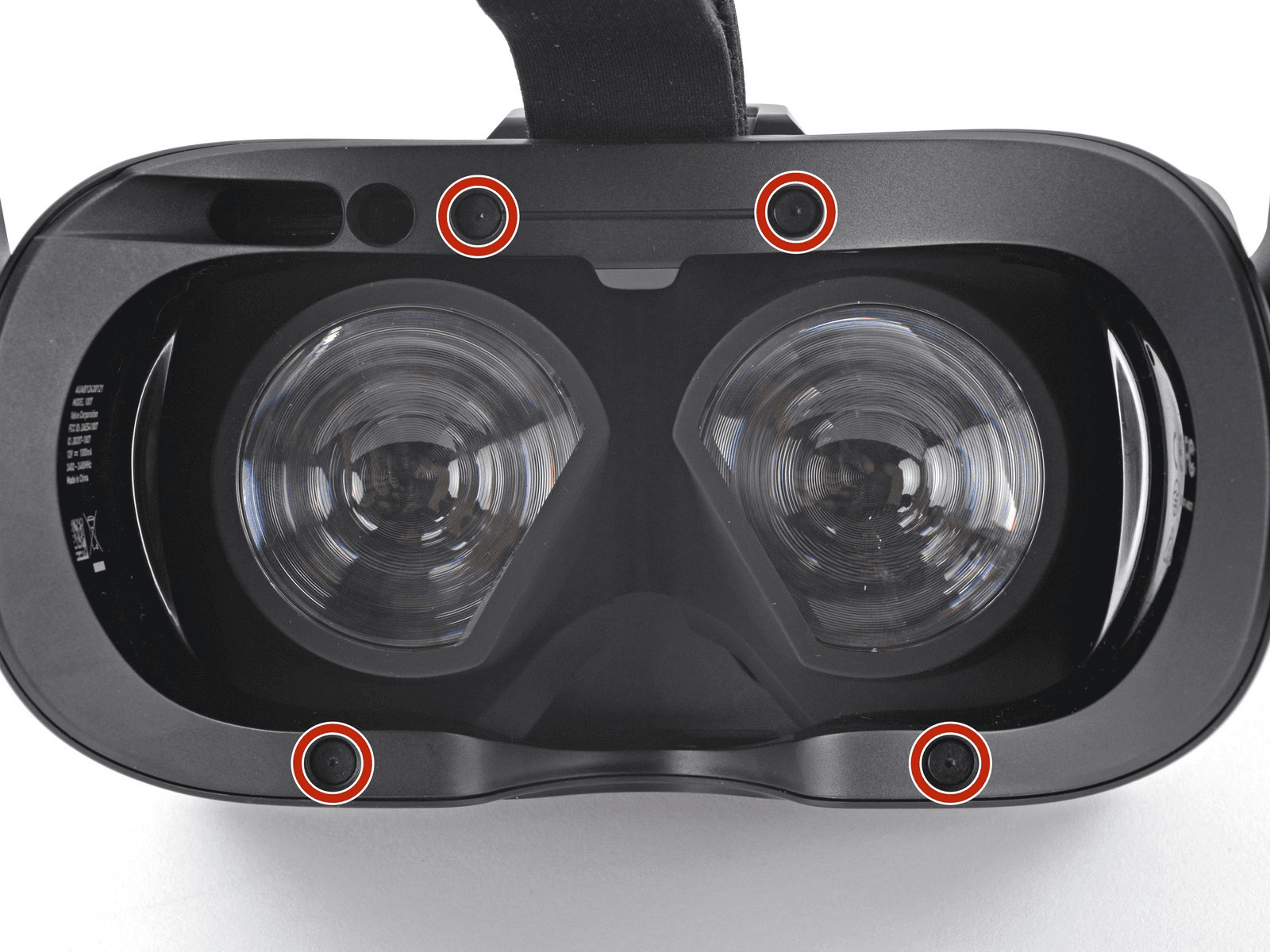

    Four T5 Torx screws highlighted on the headset

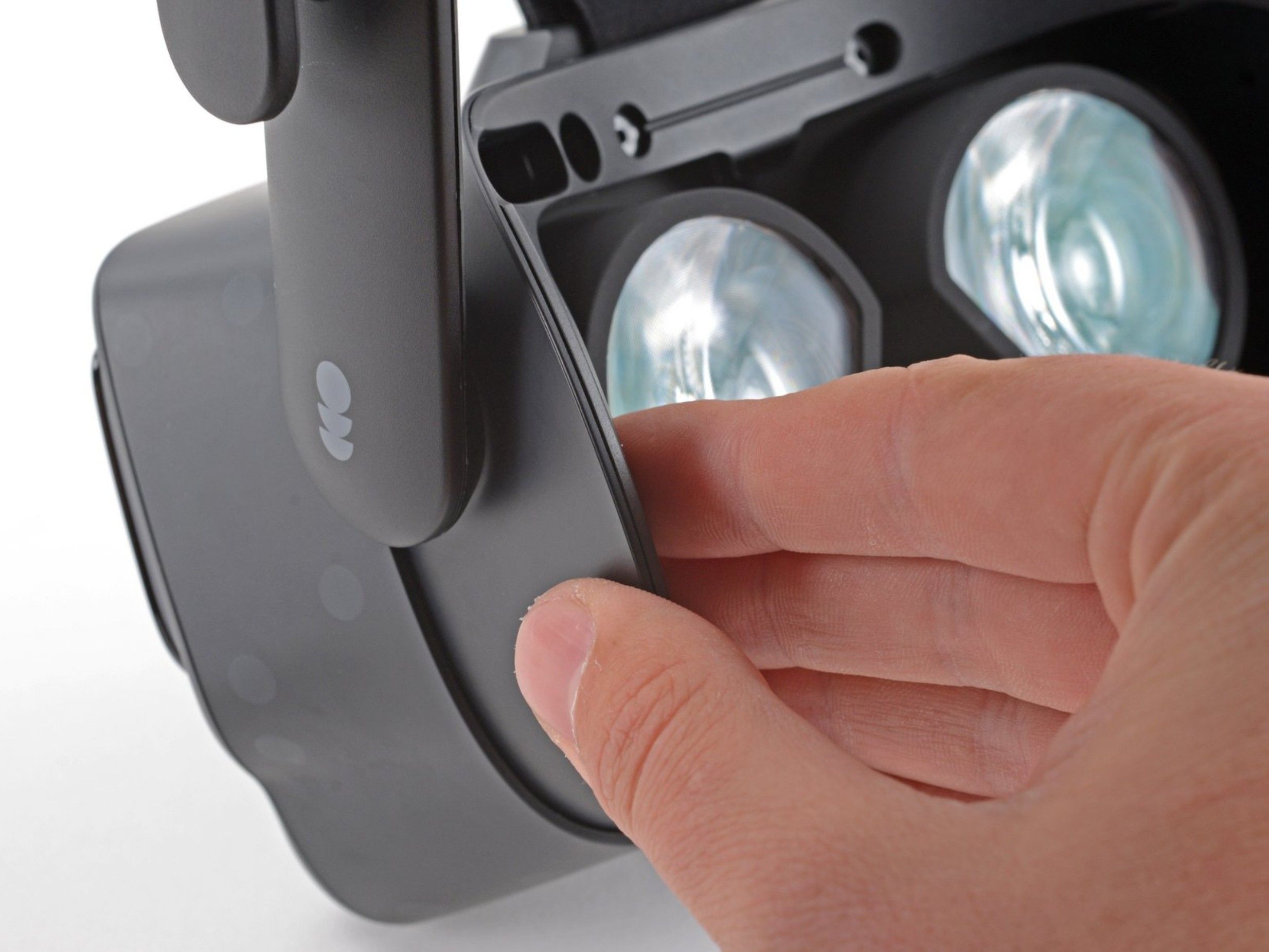

    Grabbing the left edge of the bezel

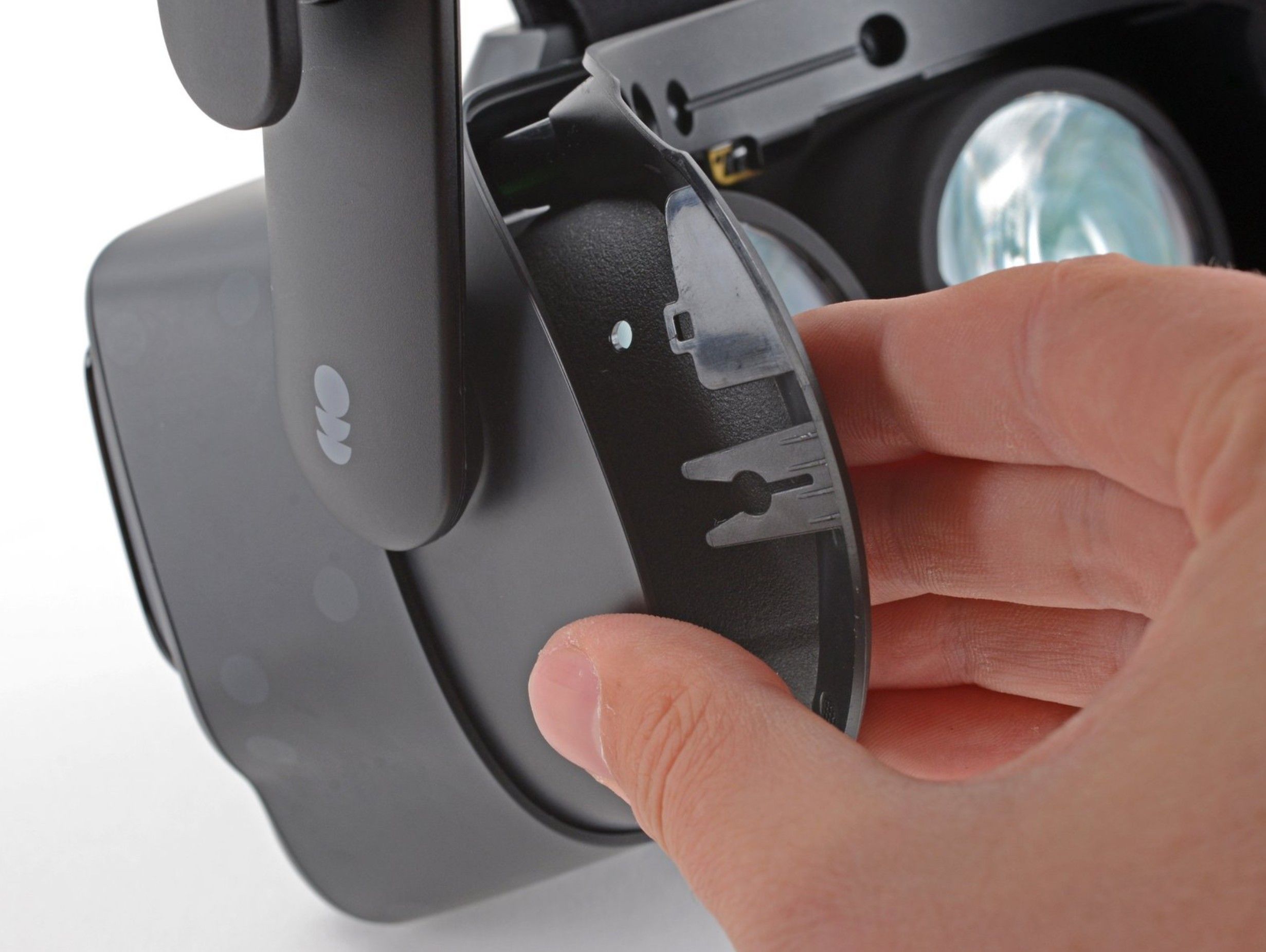

    Sliding the left side of the bezel off

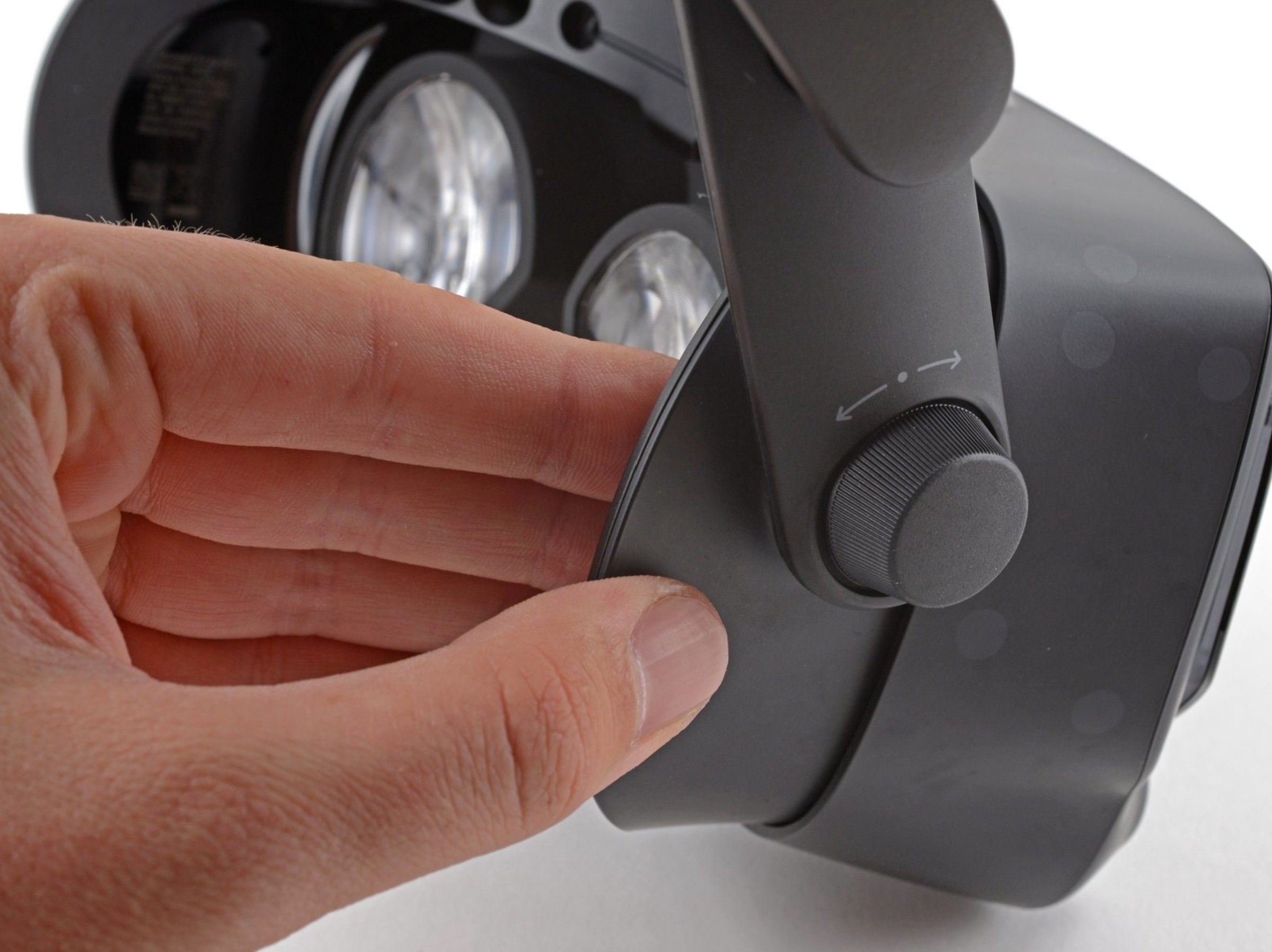

    Sliding the right side of the bezel off

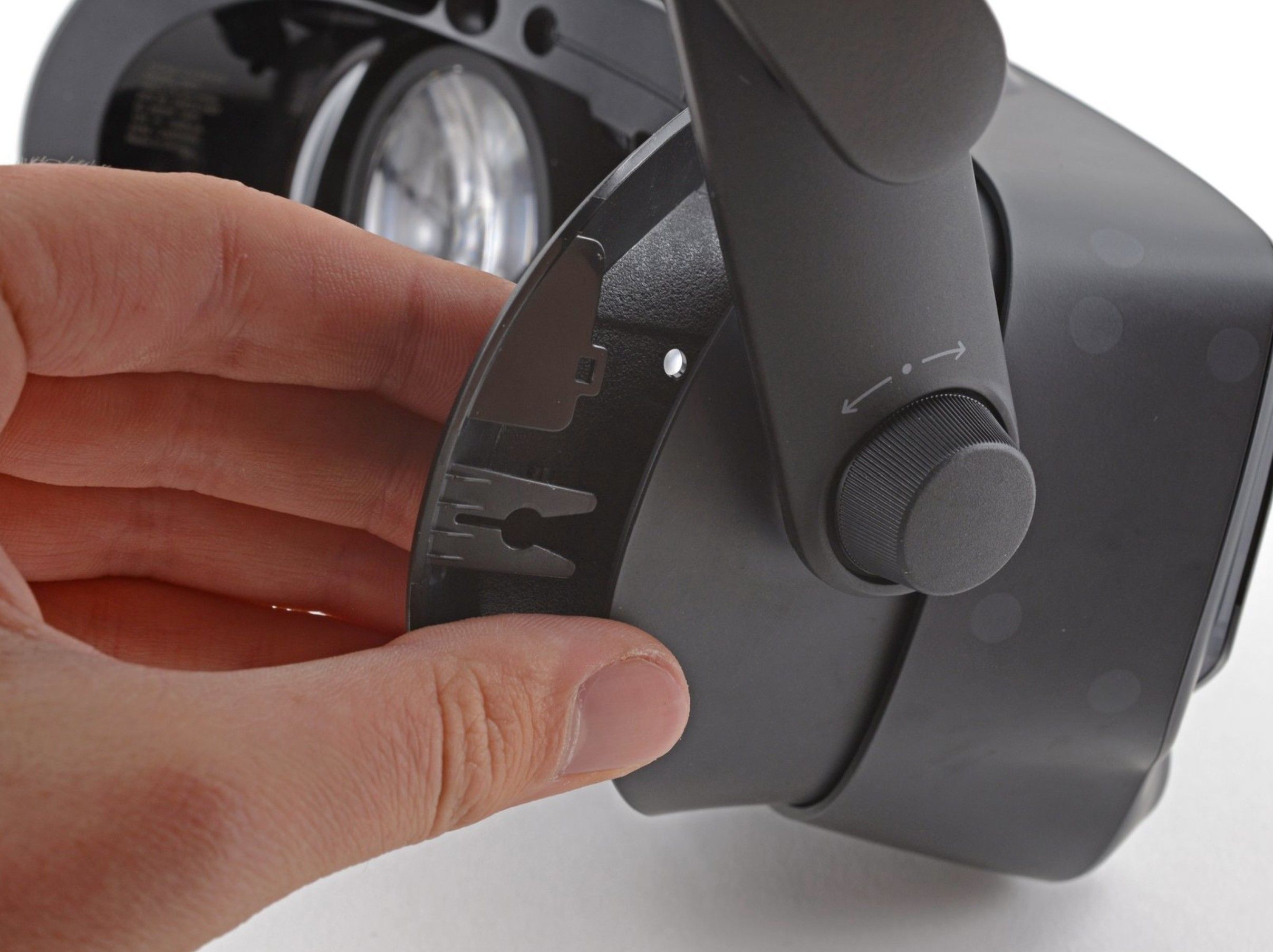

    Pulling the bezel further away

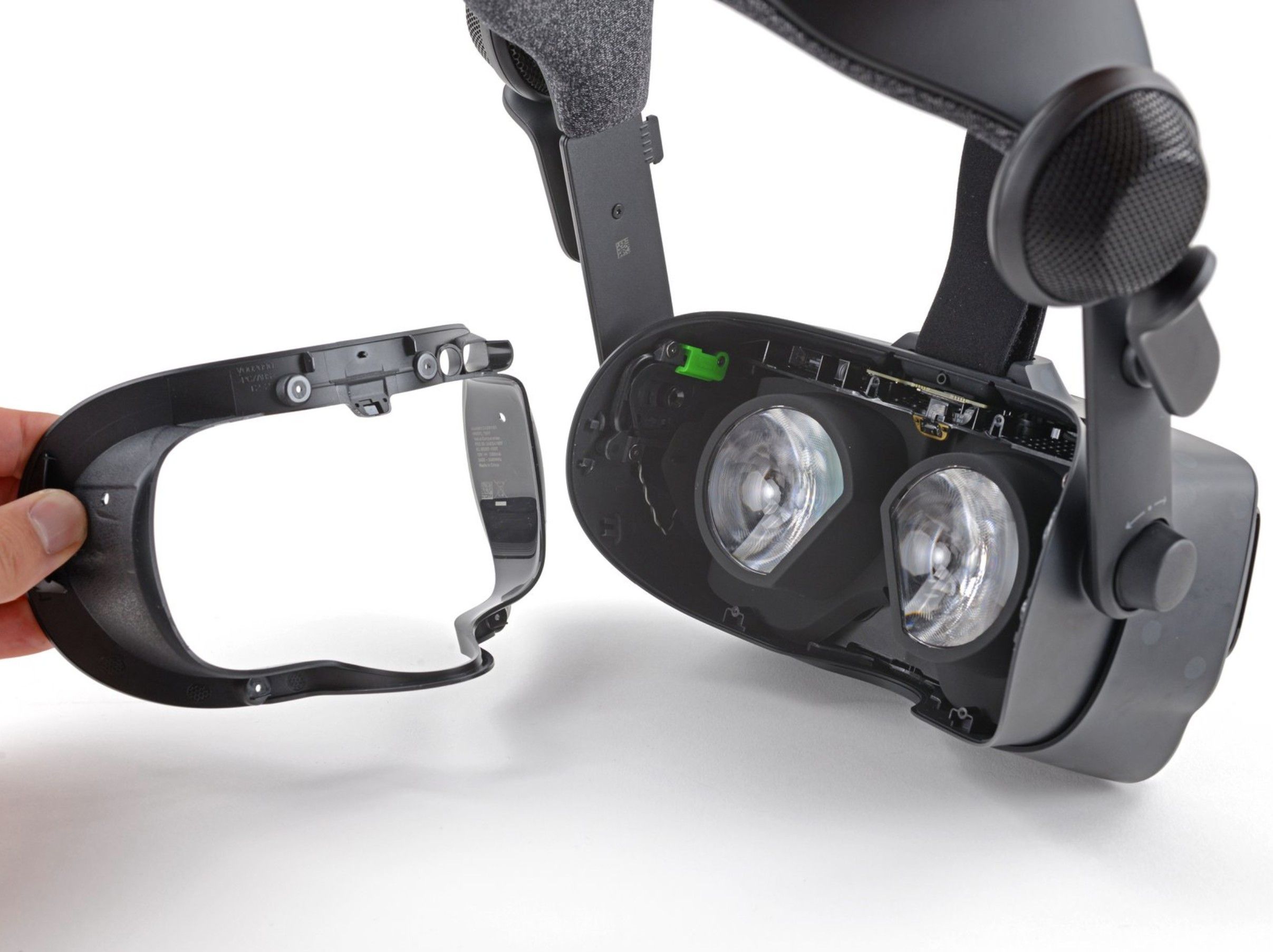

    Bezel fully removed, headset internals visible
    1 / 6
    • Use a T5 Torx screwdriver to remove the four 6 mm screws securing the faceplate frame to the headset.
    • Grab the left edge of the face gasket bezel with your hand and slide it off of the headset.
    • Repeat the previous step for the right side of the face gasket bezel.
    • Remove the face gasket bezel.

    Do not try and pry the face gasket bezel off, or you will damage the headset.

  3. 3

    Remove the Eye Tube Gasket

    With the bezel removed, carefully detach the eye tube gasket using tweezers.

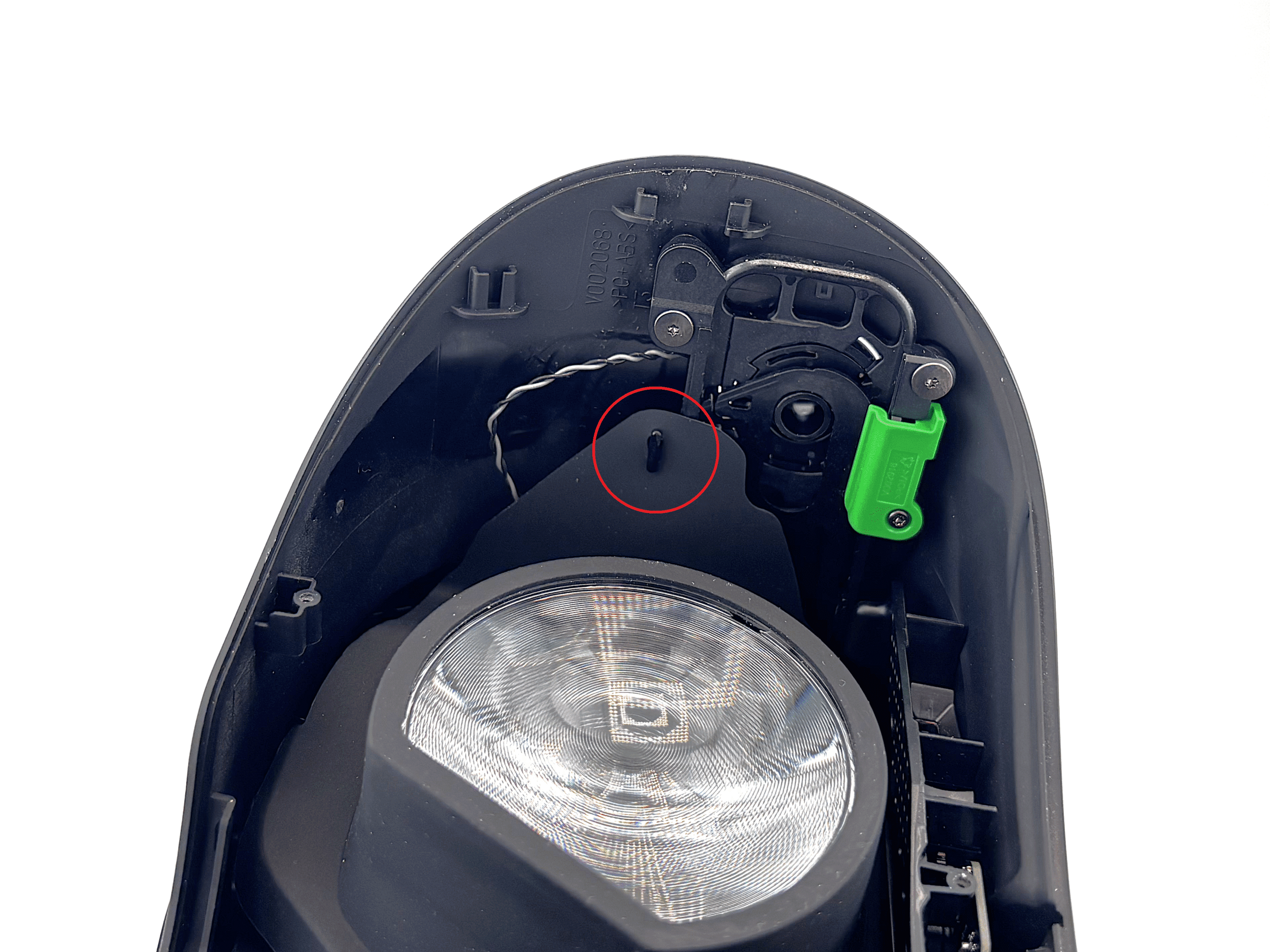

    Eye tube gasket area overview

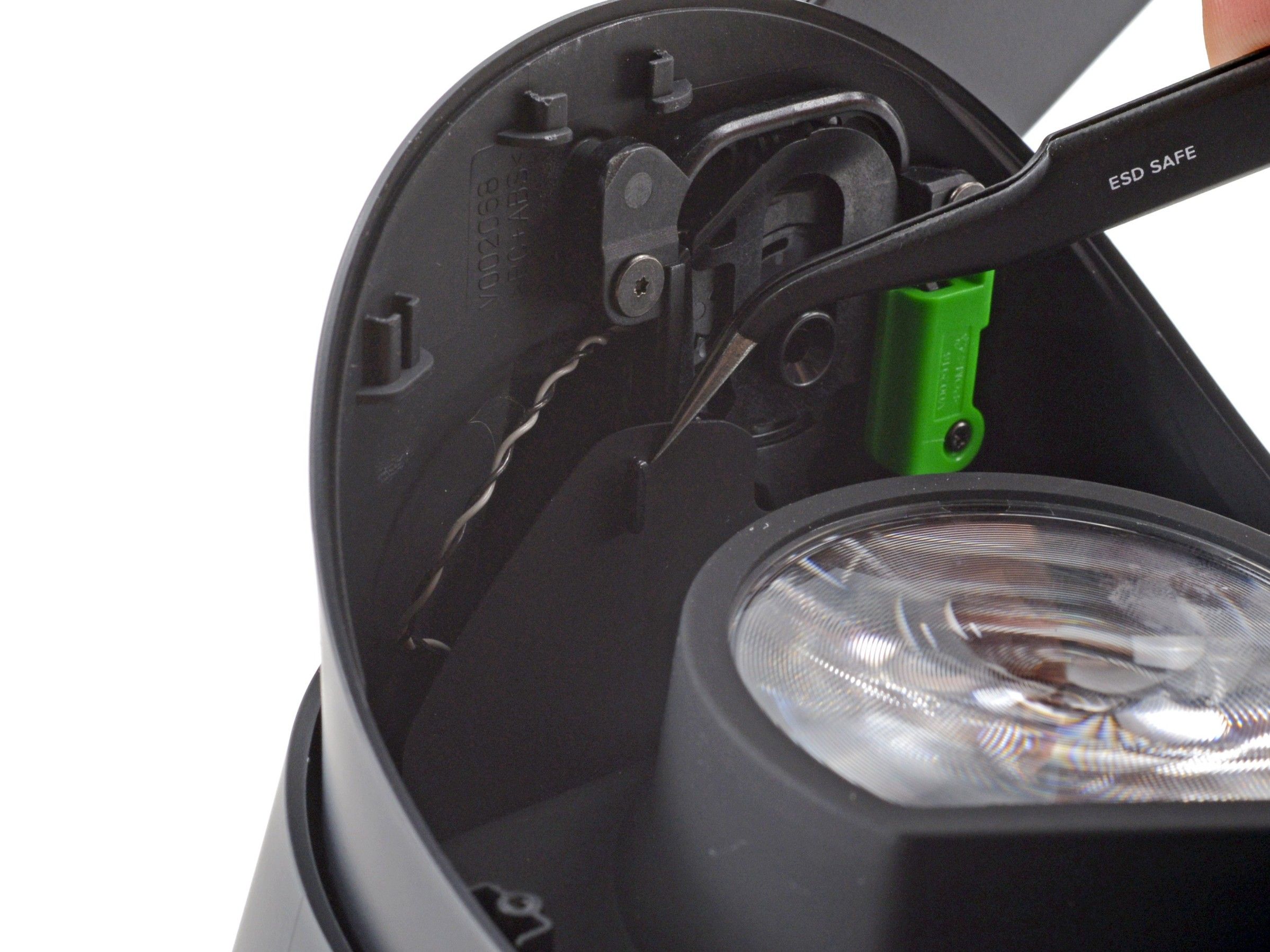

    Using tweezers to separate left gasket edge

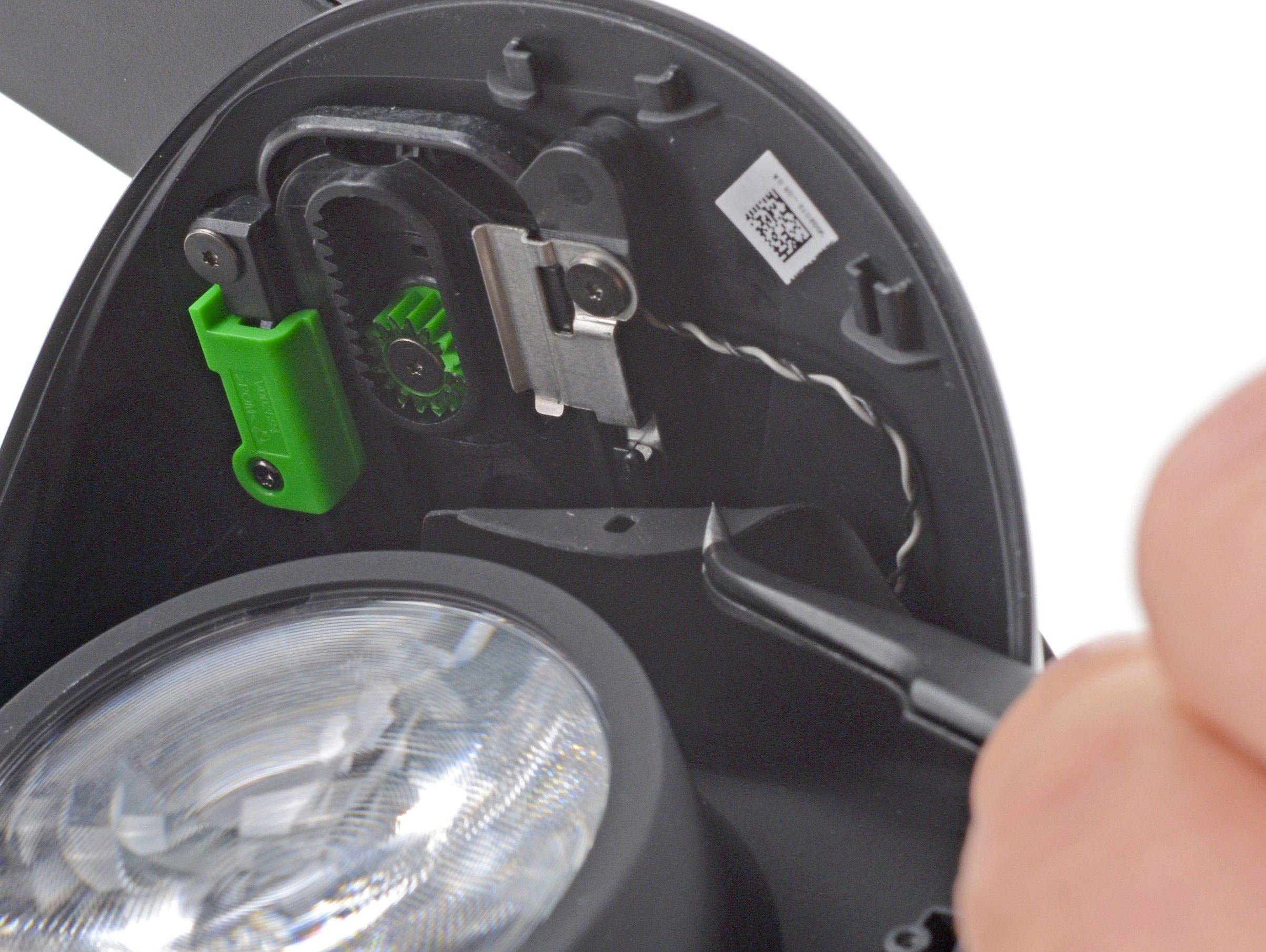

    Separating right gasket edge with tweezers
    1 / 3
    • Use a pair of tweezers to separate the left edge of the eye tube gasket from the headset by lifting the gasket carefully over the hooks on each side.
    • Repeat the process for the right edge of the gasket.
  4. 4

    Remove the Motherboard Cover

    With the gasket removed, take off the front cover and motherboard cover to access the internals.

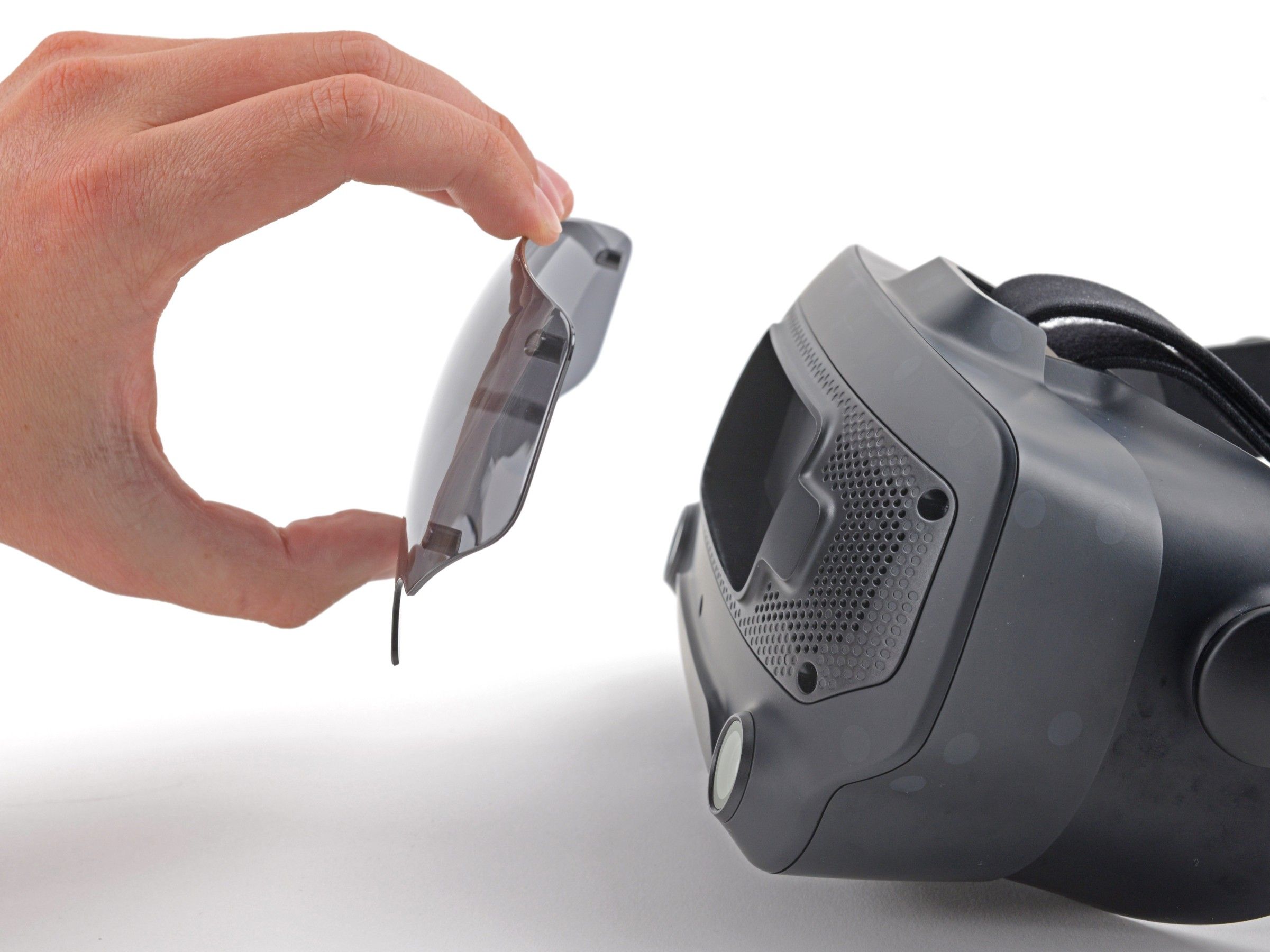

    Pulling the magnetic front cover off the headset

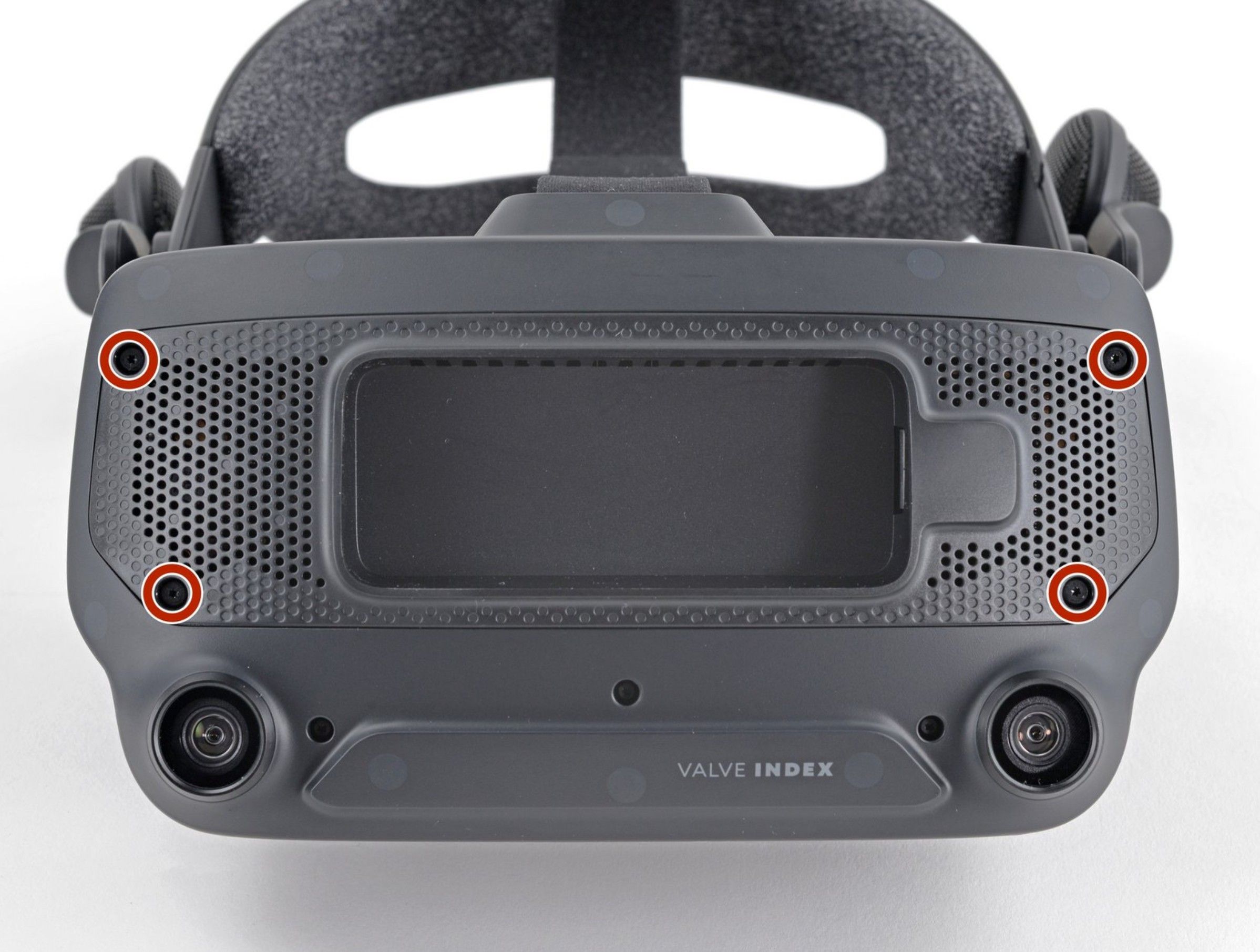

    Four T5 Torx screws highlighted on the motherboard cover

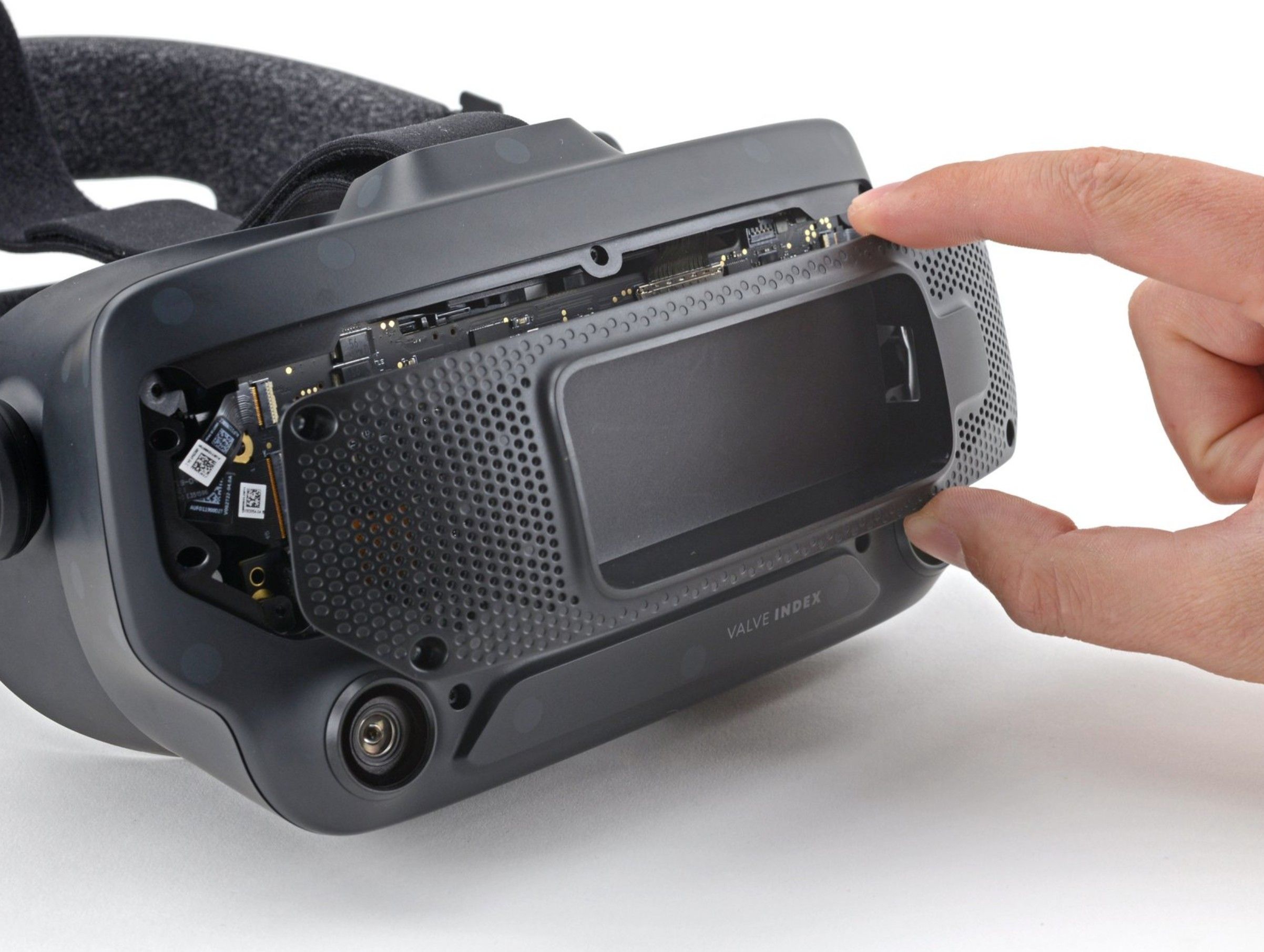

    Removing the motherboard cover, internals visible
    1 / 3
    • Pull the front cover straight off of the front of the headset. It is held in place by four magnets.
    • Use a T5 Torx screwdriver to remove the four 5.4 mm screws securing the motherboard cover to the headset.
    • Remove the motherboard cover from the headset.

  5. Goal for Steps 5, 6, 7 and 8

    From this point onward, the process becomes more delicate because you are working with ribbon cables. Take your time!

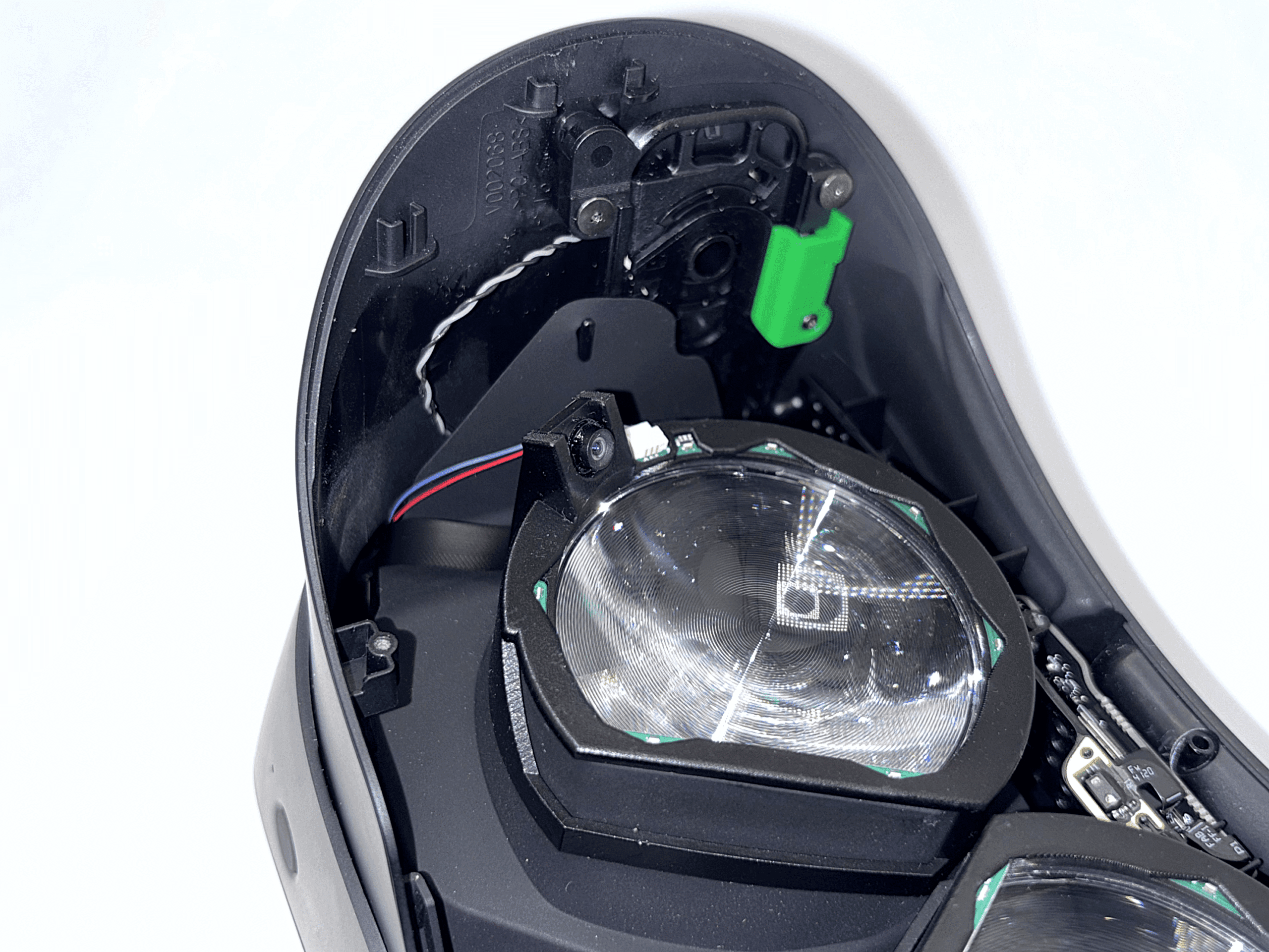

    Completed setup with four ribbon cables routed through the front of the headset

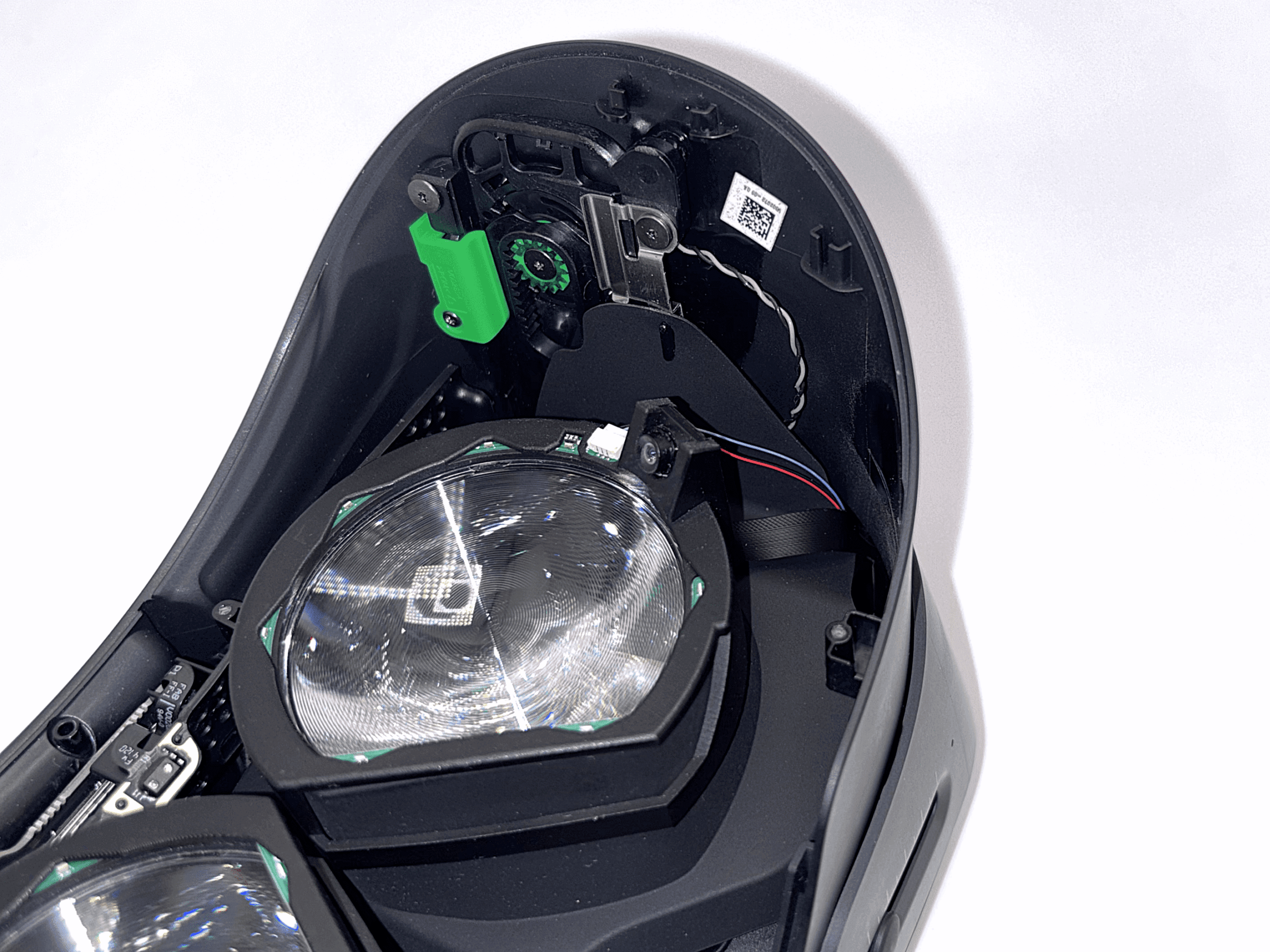

    Close-up of the left side cable routing

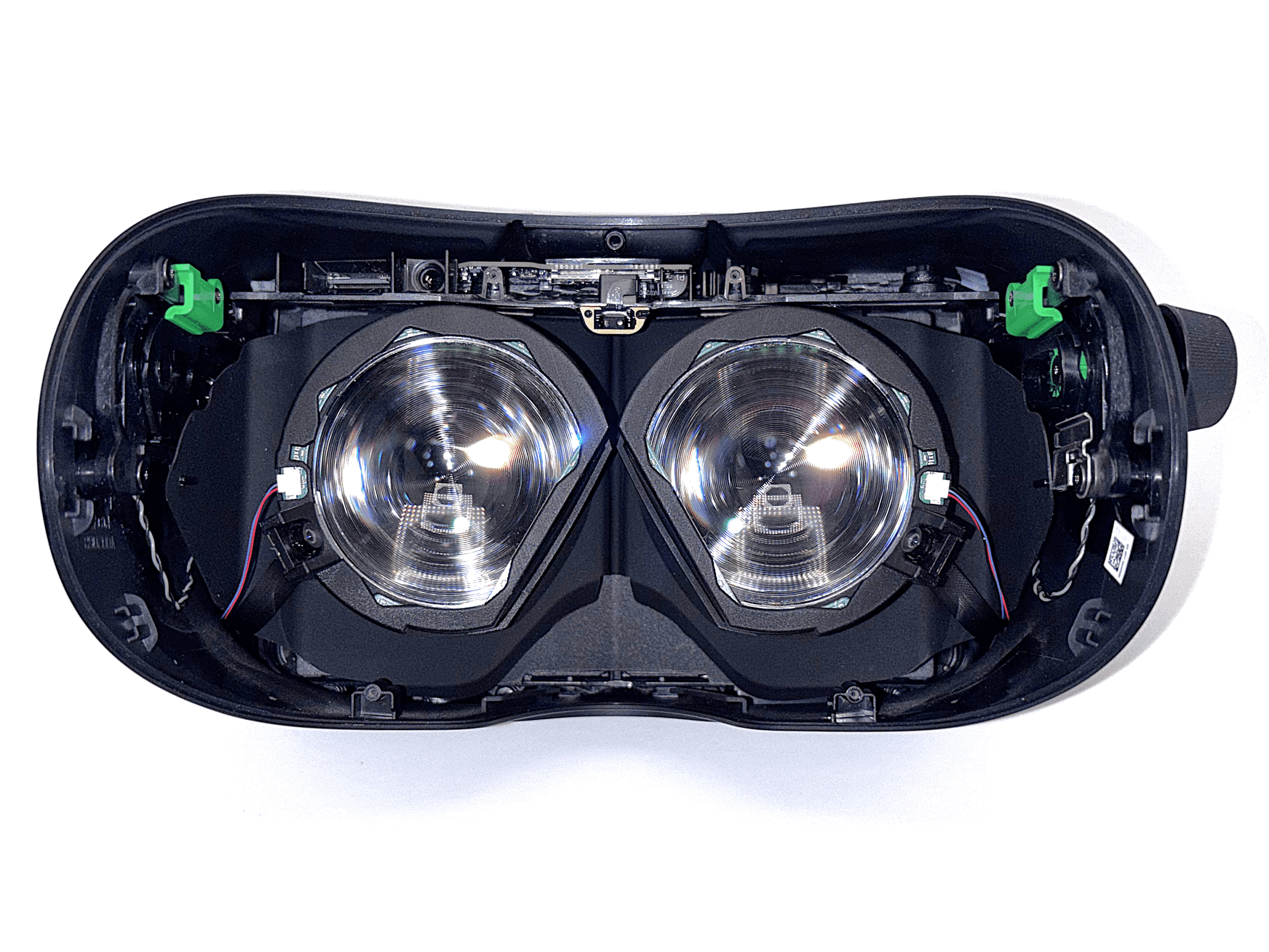

    Close-up of the right side cable routing

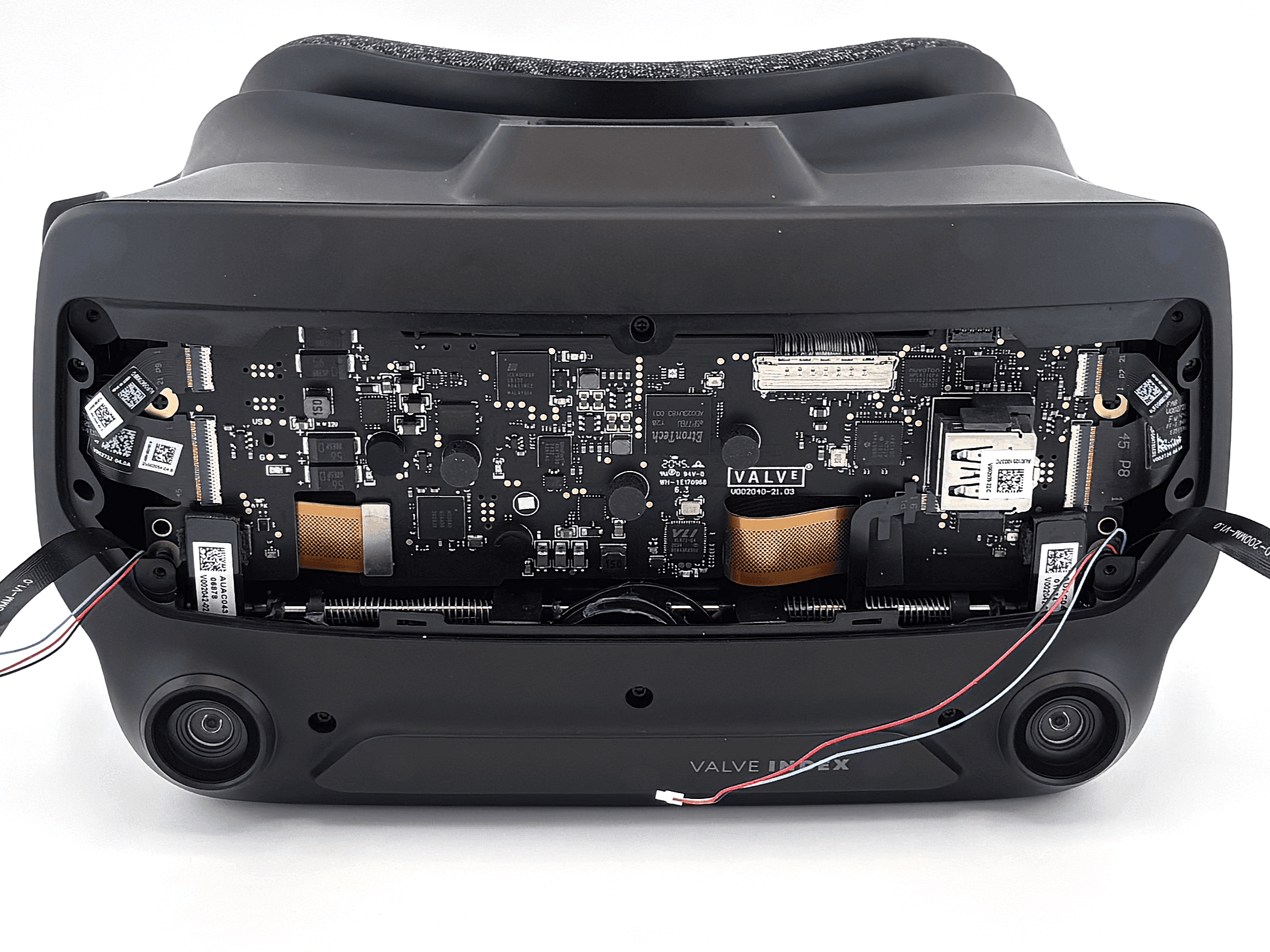

    Final overview of all four cables in position
    1 / 4

    In the next four steps, you will install the two rings used for eye tracking. Each ring contains a circuit board with LEDs for eye illumination and a camera.

    Since it's often easier to work toward a visible goal, the images show what your setup should look like after completing steps 5, 6, 7, and 8.

    In step 5, you will route the ribbon cable for the left side through the headset. In step 6, you will do the same for the right side. Steps 7 and 8 will then connect the LED modules.

    In the end, there should be four cables coming out of the front of your Index, positioned exactly as shown.

    On newer revisions of the kit, the LEDs and connector are recessed into the ring, with the LED cable pre-attached.

  6. 5

    Routing the Left Ribbon Cable

    Guide the left ribbon cable through the headset so it exits on the front side.

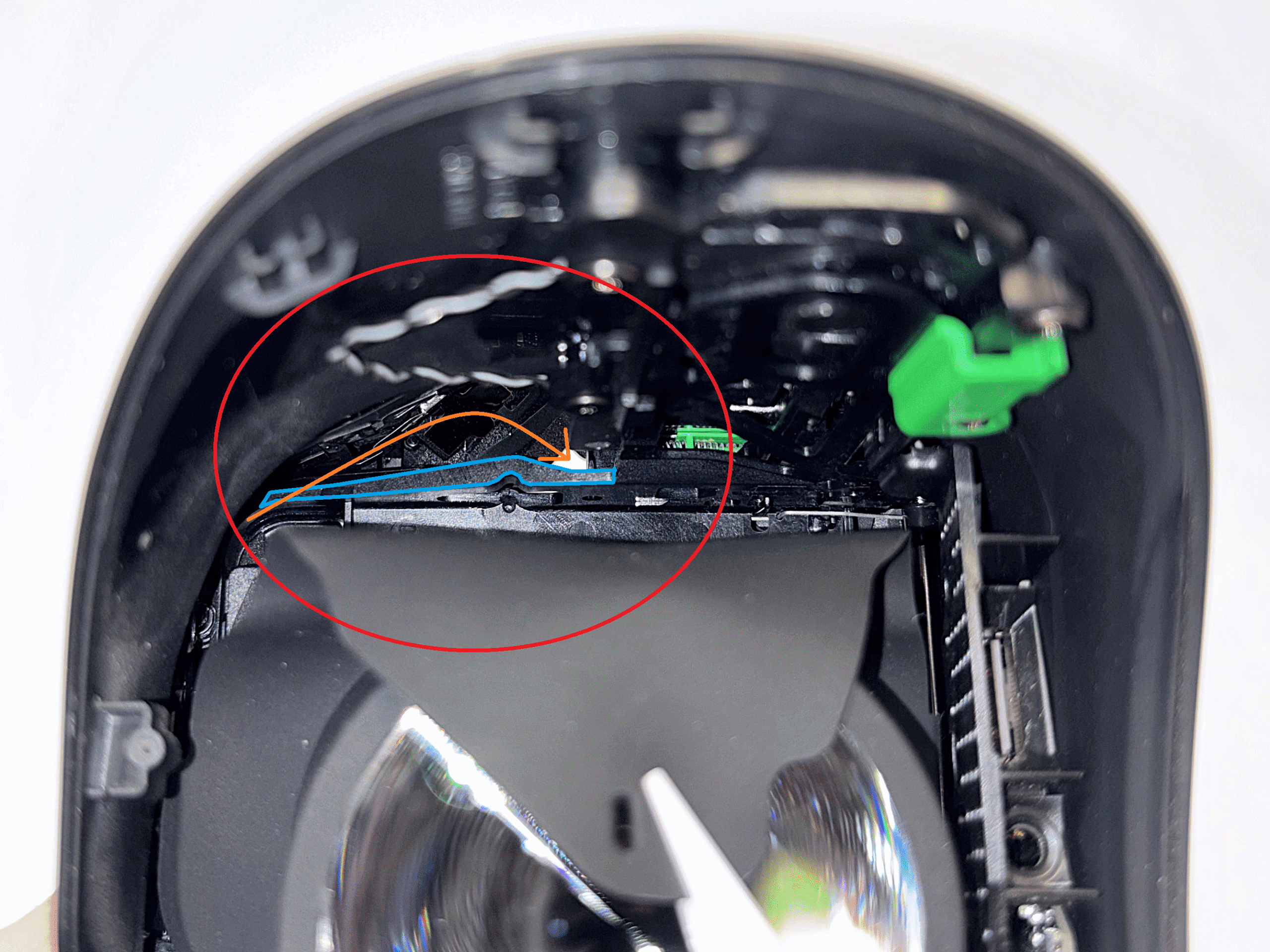

    Reference image showing blue-marked plastic piece and orange arrow for cable routing

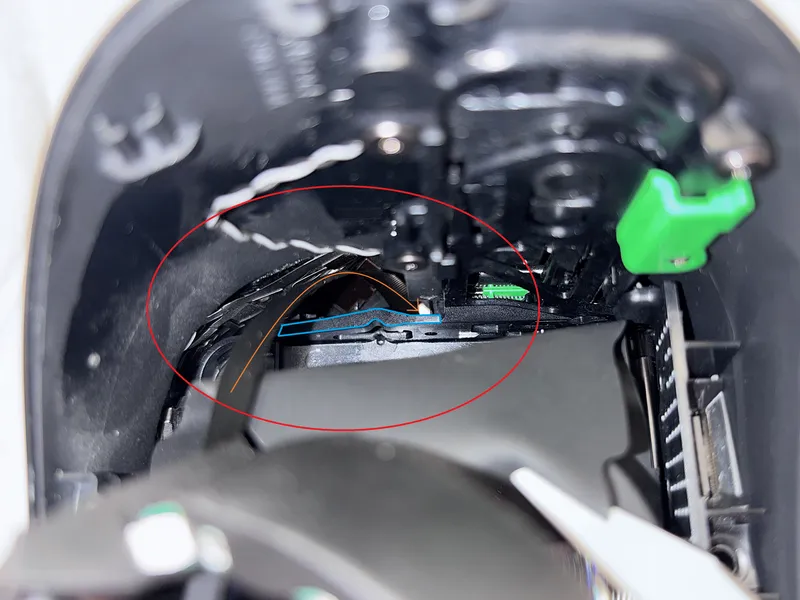

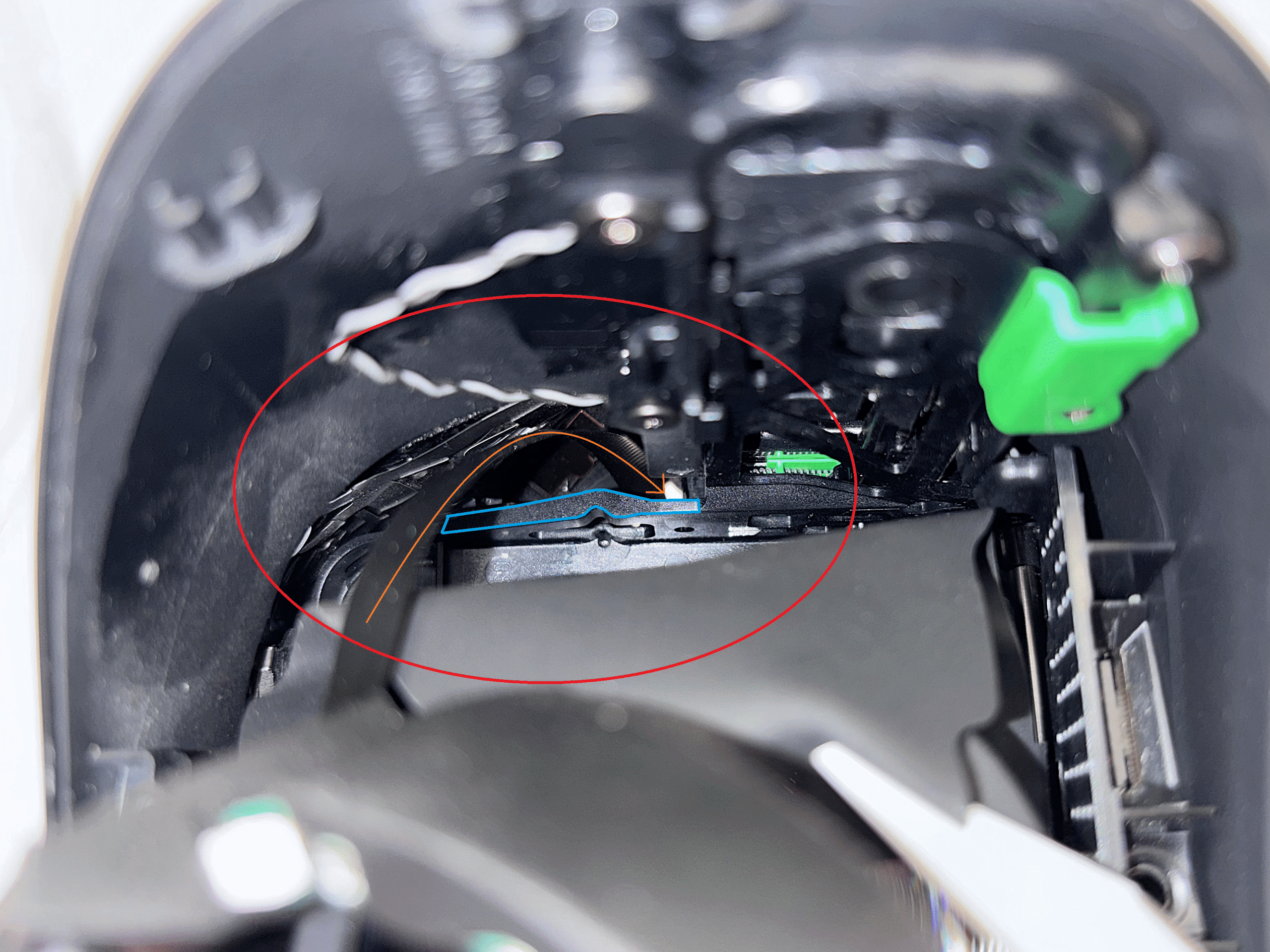

    Using a light source to illuminate the cable exit hole

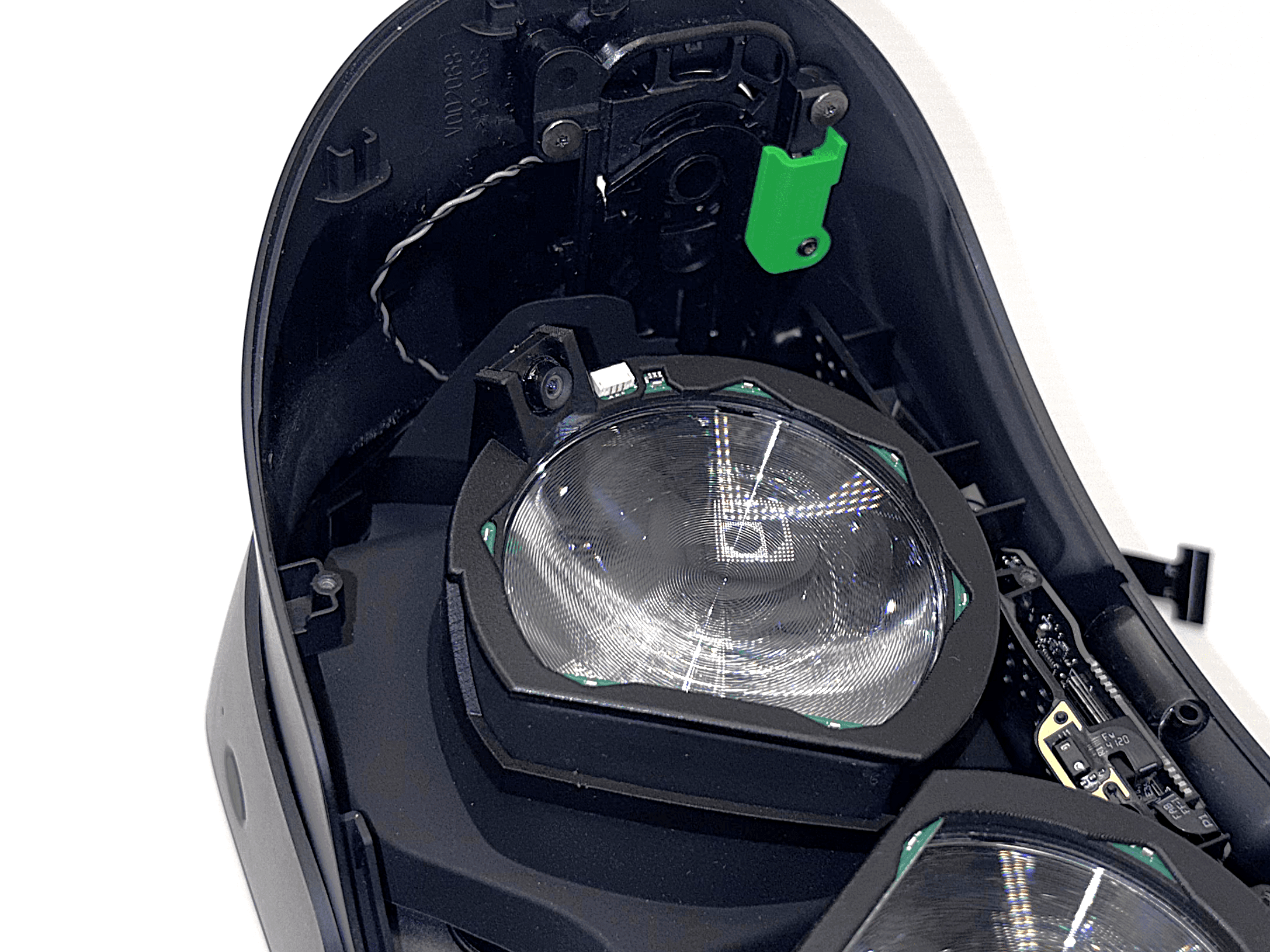

    Inside view showing the ribbon cable exit point

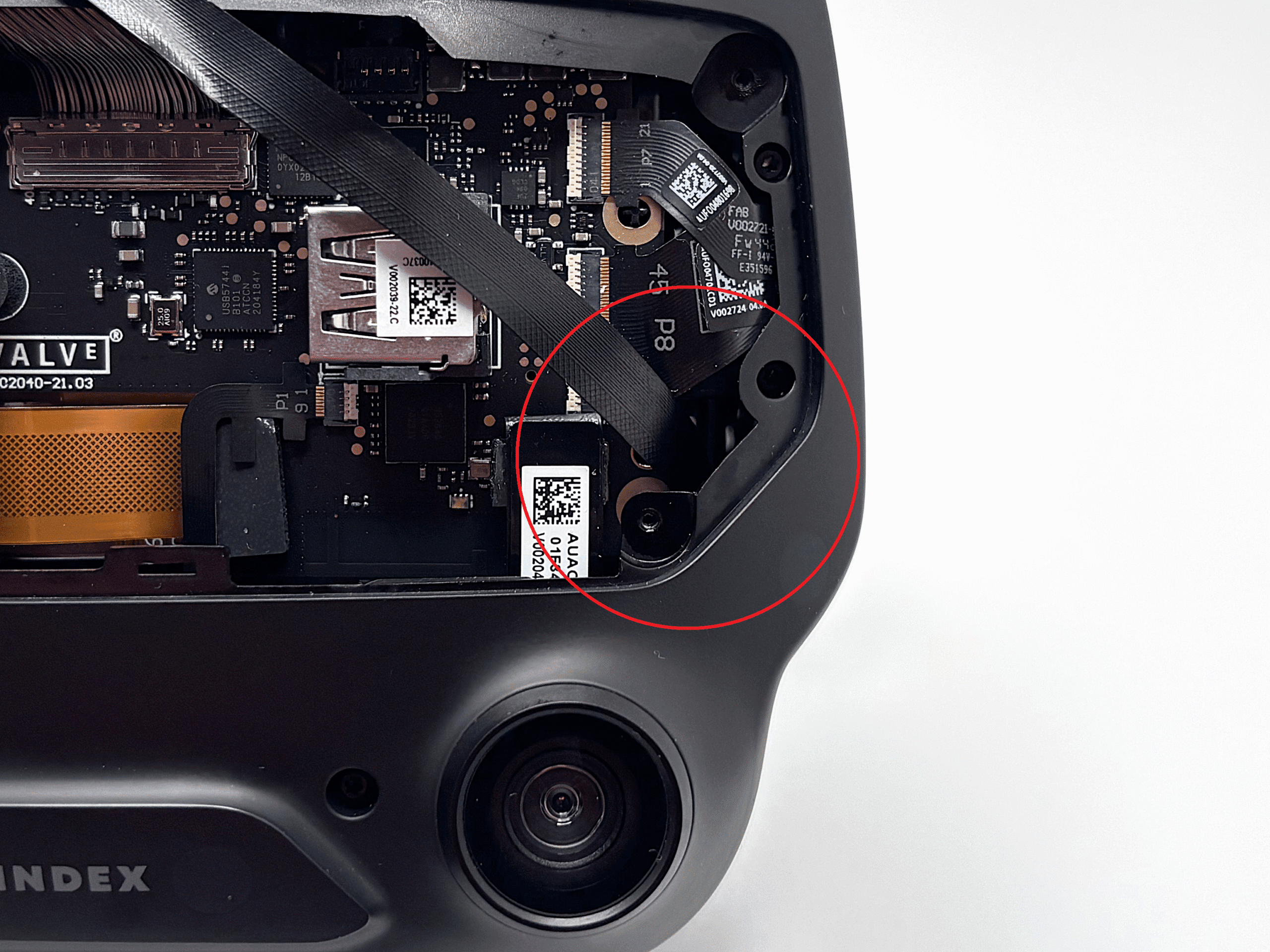

    Front view with highlighted area where the cable exits
    1 / 4

    The ribbon cable should pass behind the blue-marked plastic piece and exit through the bright hole, following the orange arrow shown in the reference image.

    If you have difficulty guiding the cable through the hole or seeing it, place a light source in front of the headset to clearly see where the cable should exit.

    In the last image, you can see where the ribbon cable should exit. With enough light and some patience, it's quite easy to guide the ribbon cable through the hole.

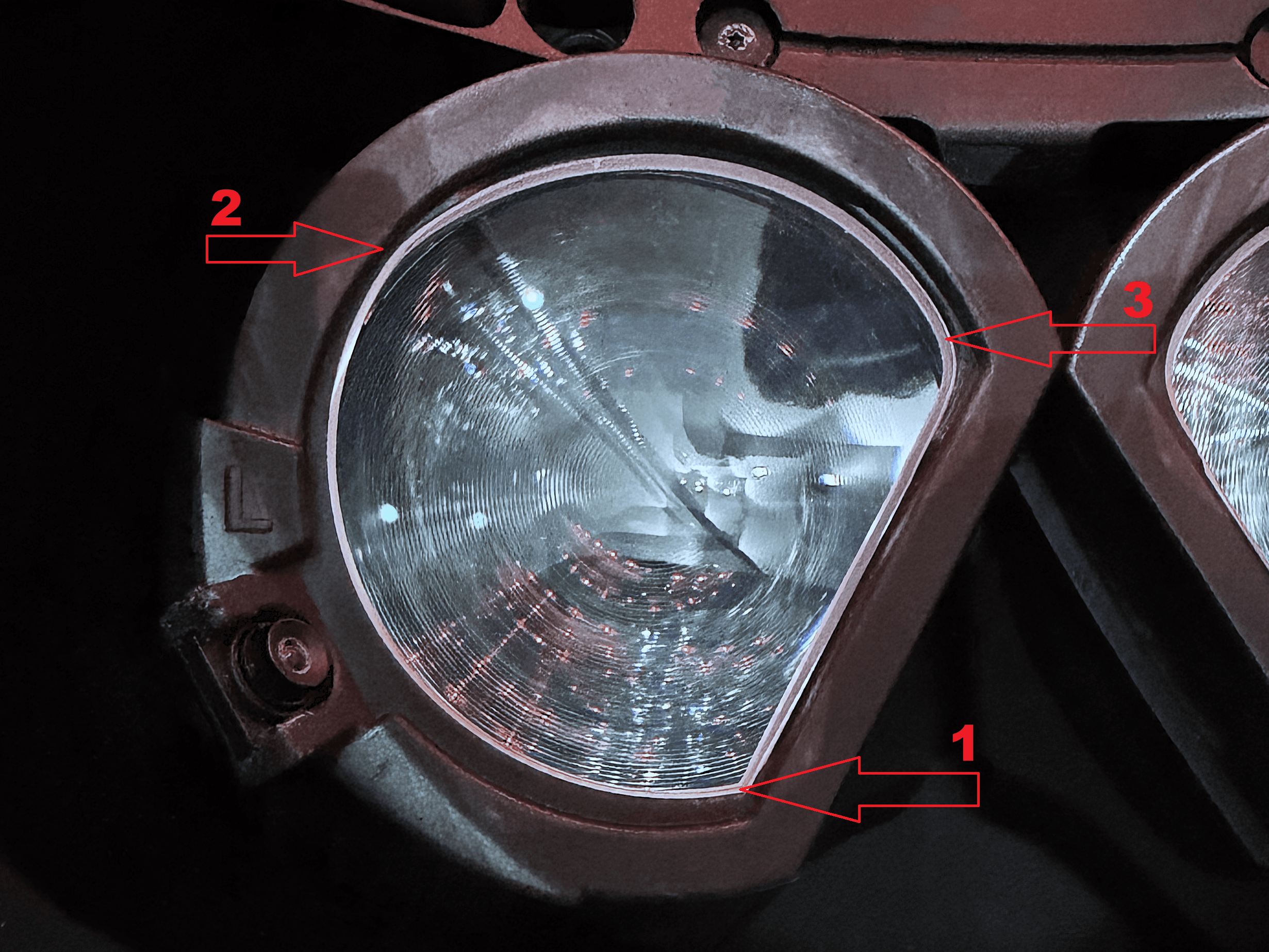

    Once the cable has reached the other side, gently press the ring onto the lens to keep it in place.

  7. 6

    Routing the Right Ribbon Cable

    Now repeat step 5 for the right side.

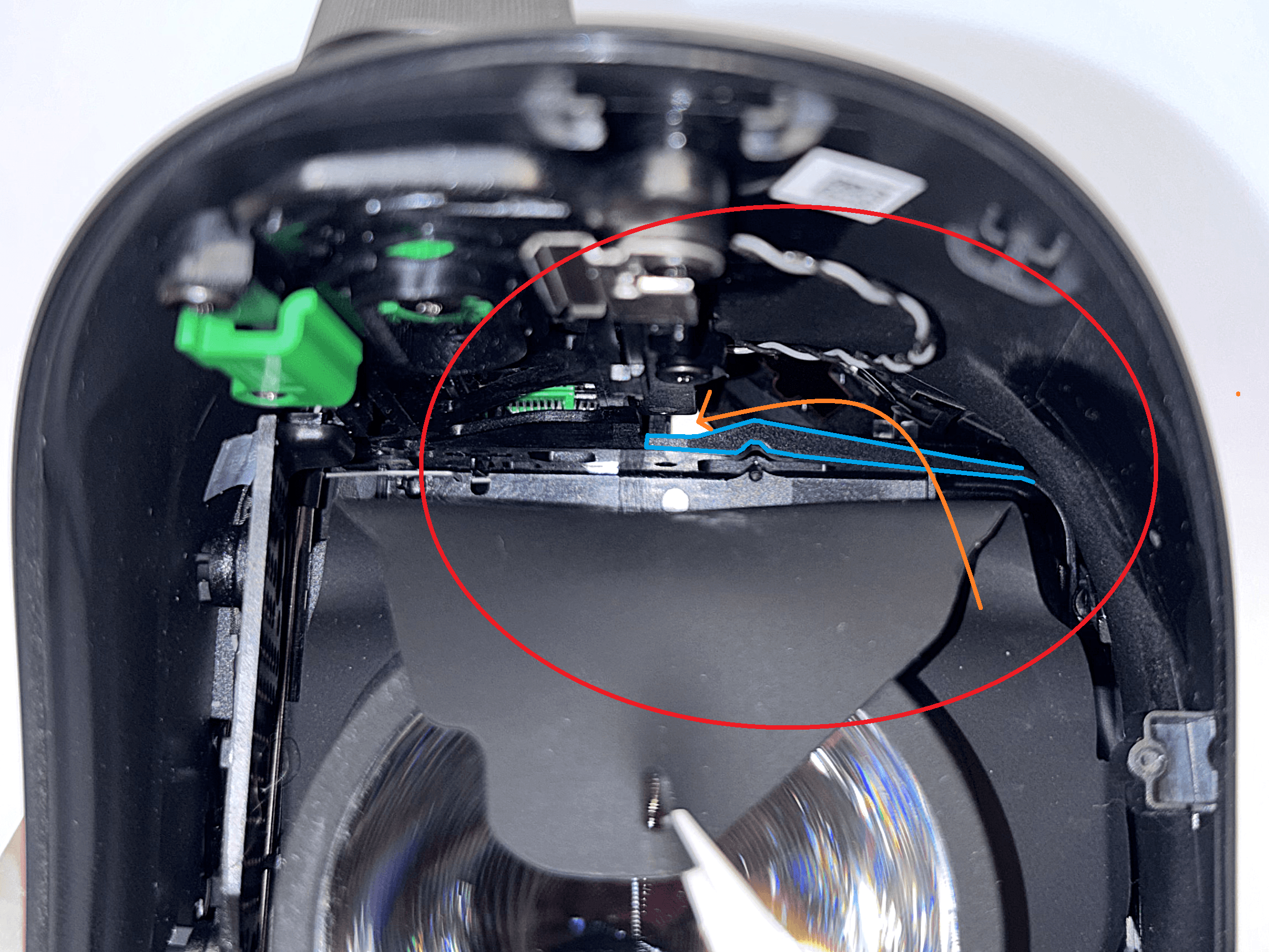

    Reference image showing cable routing path for the right side

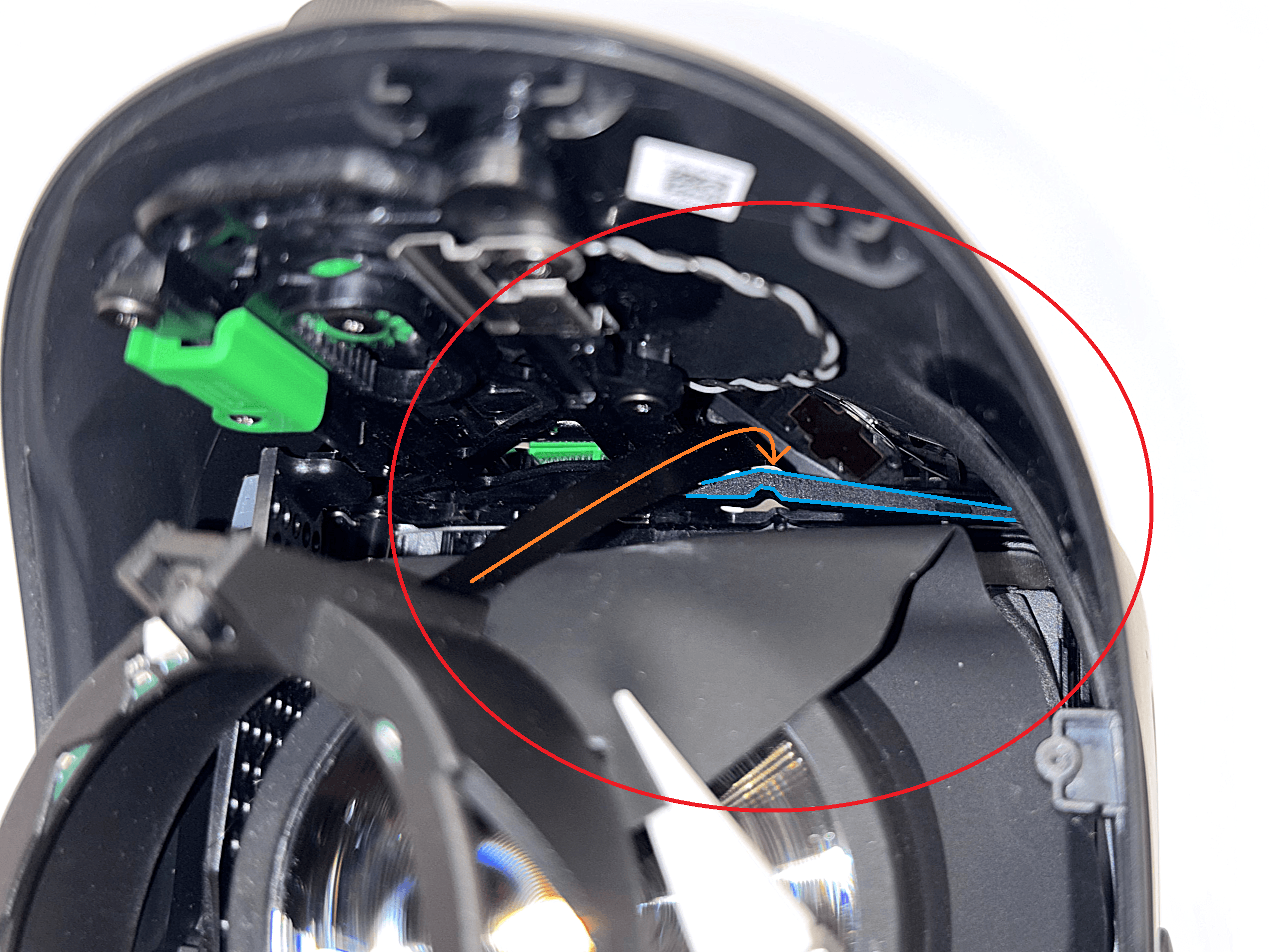

    Guiding the right ribbon cable behind the plastic piece

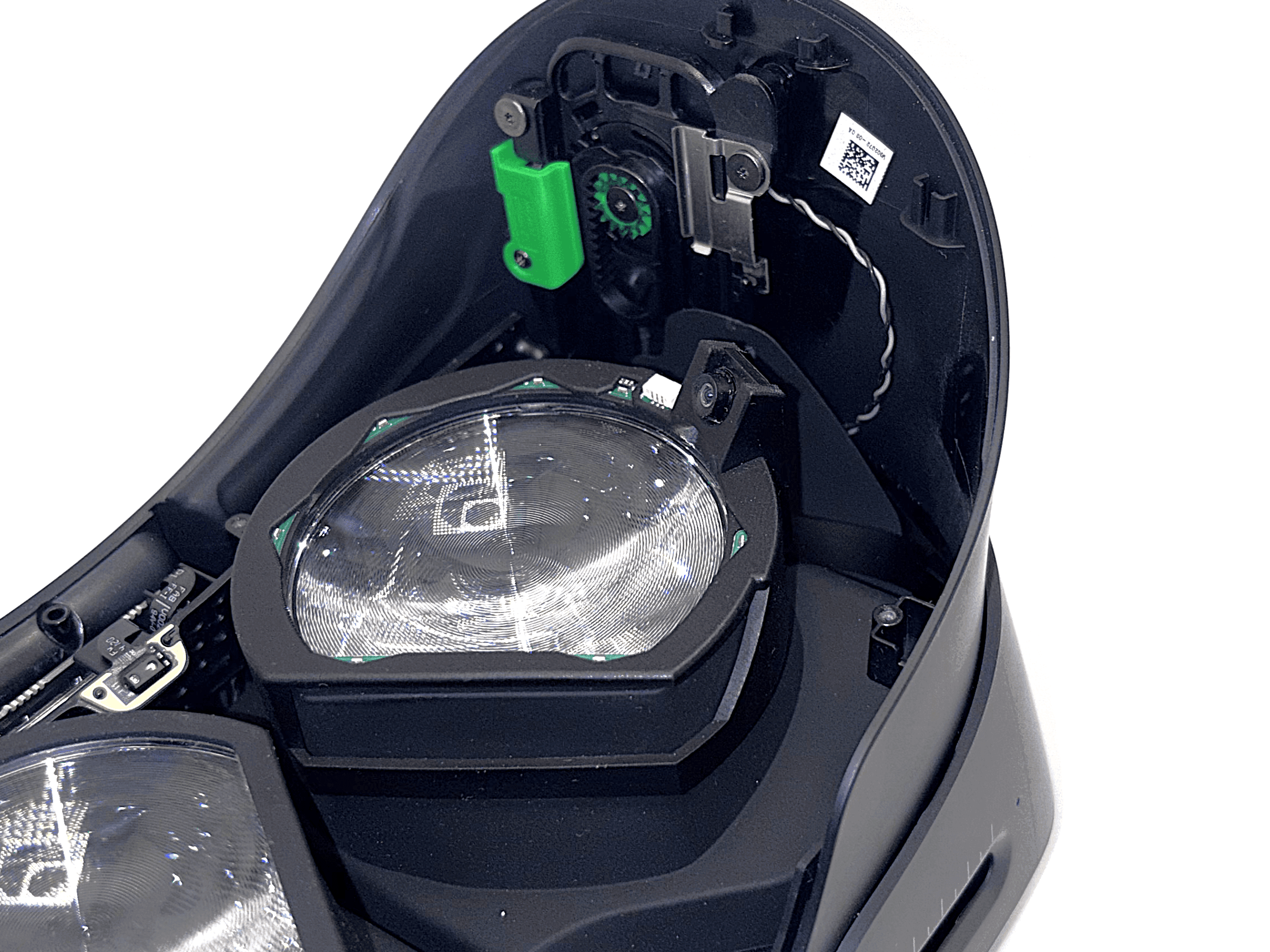

    Inside view showing the right ribbon cable exit point

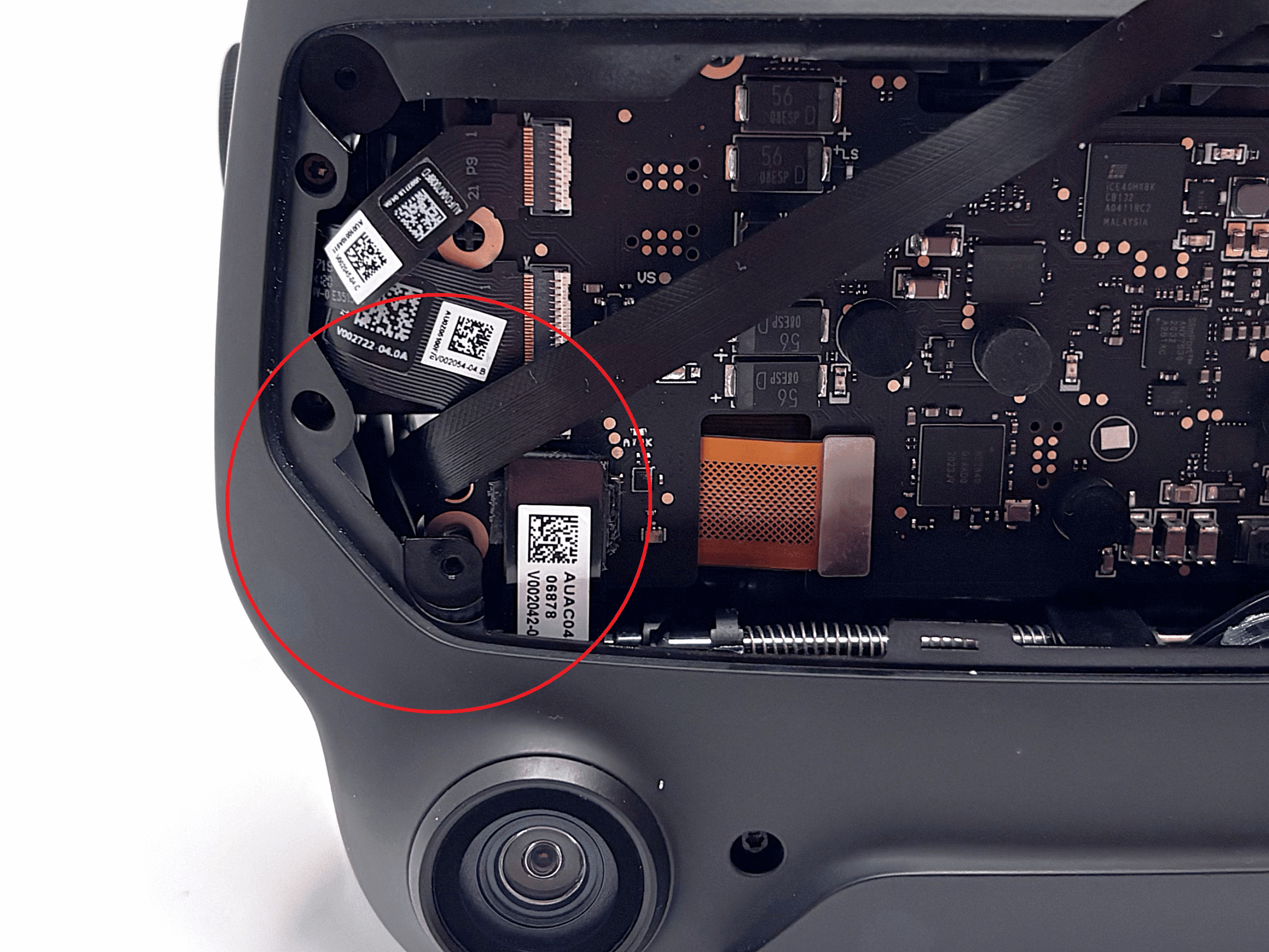

    Front view with highlighted area where the right cable exits
    1 / 4

    The ribbon cable should again pass behind the blue-marked plastic piece and exit through the bright hole, following the orange arrow shown in the reference image.

    In the last image, you can see where the ribbon cable should exit.

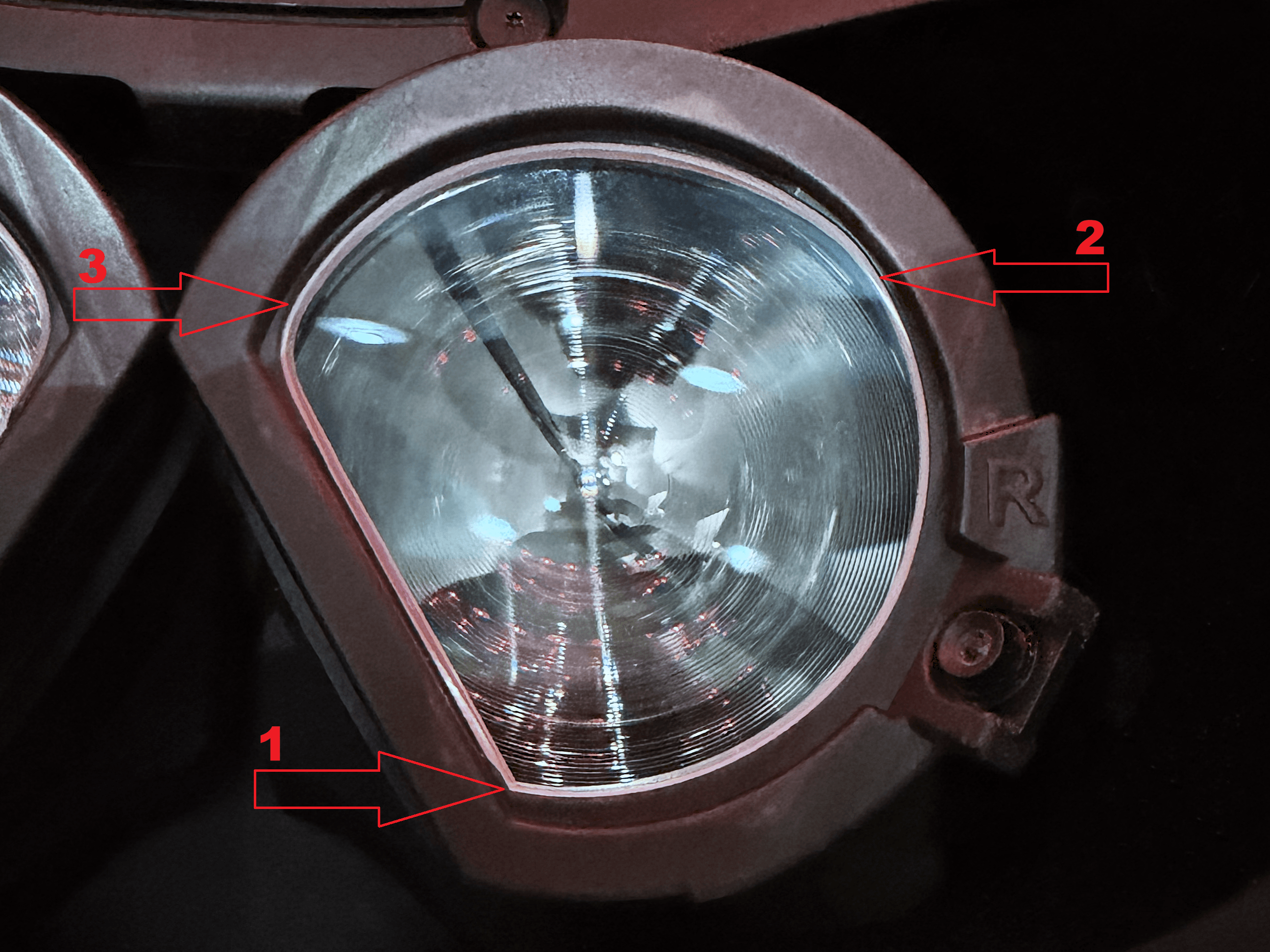

    Once the cable has reached the other side, gently press the ring onto the lens to hold it in place.

  8. 7

    Routing the Left LED Cable

    Route the flexible LED cable on the left side through the same path used in step 5.

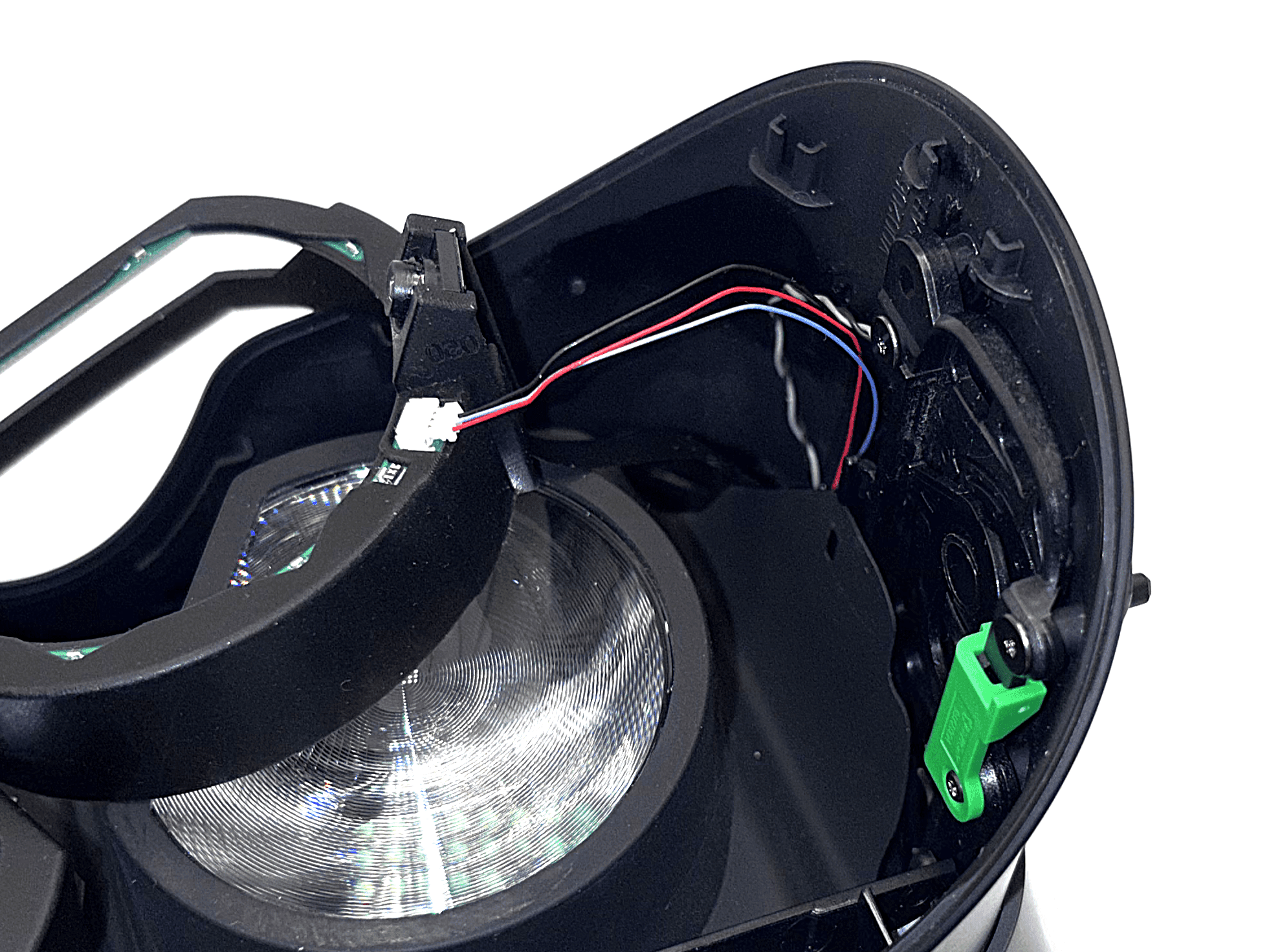

    Left LED cable being routed along the same path as step 5

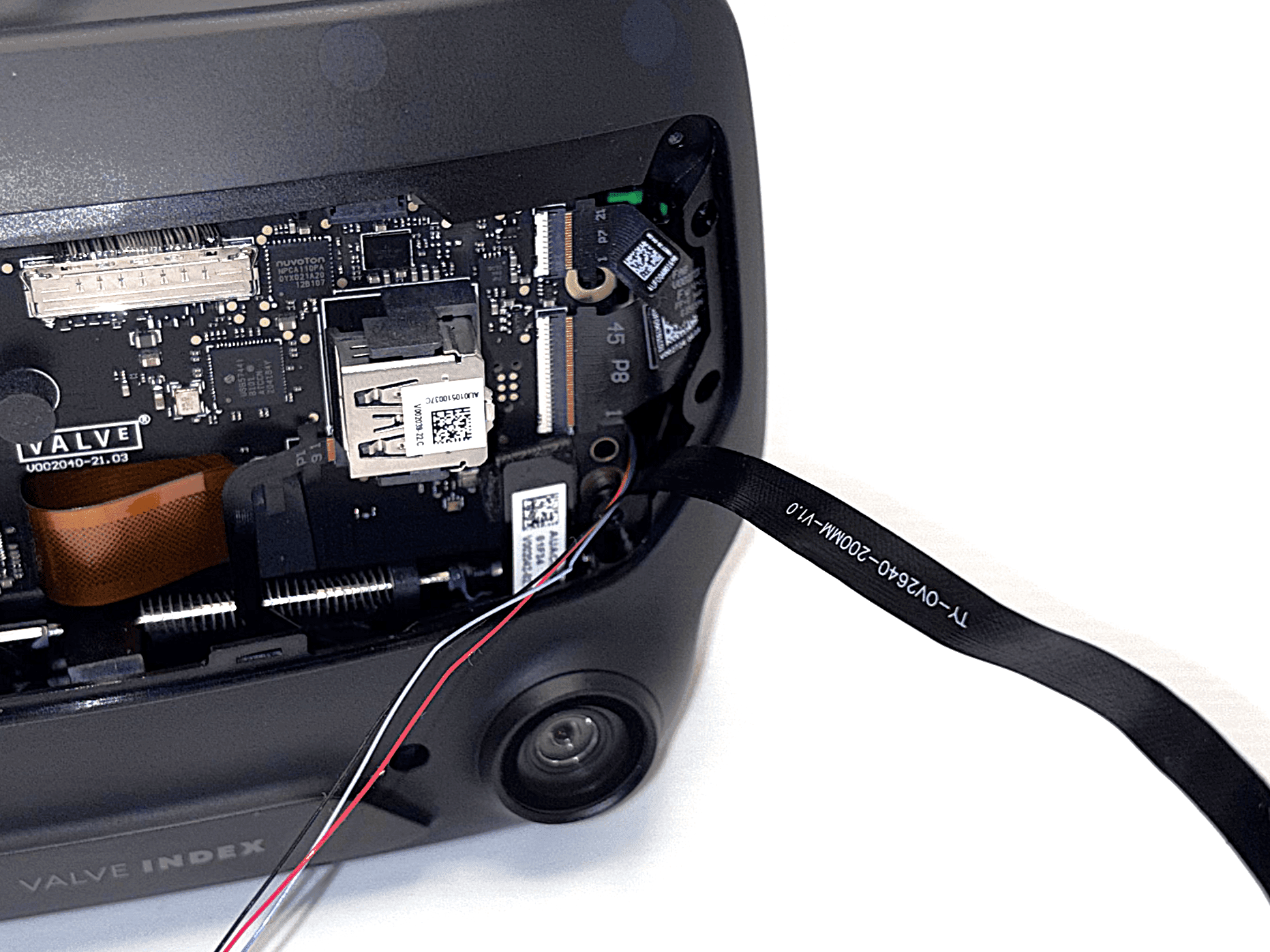

    Connecting the LED cable to the ring

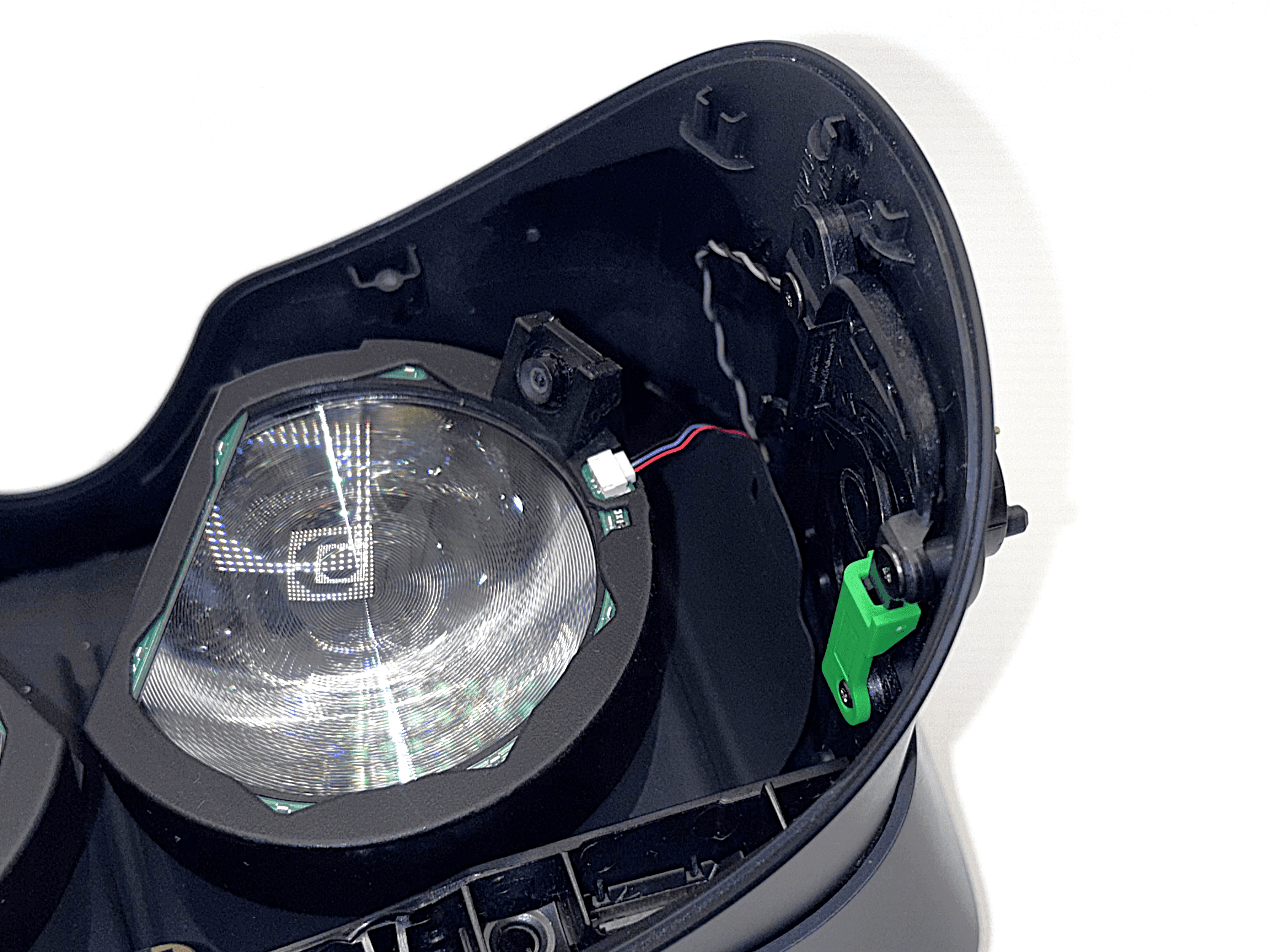

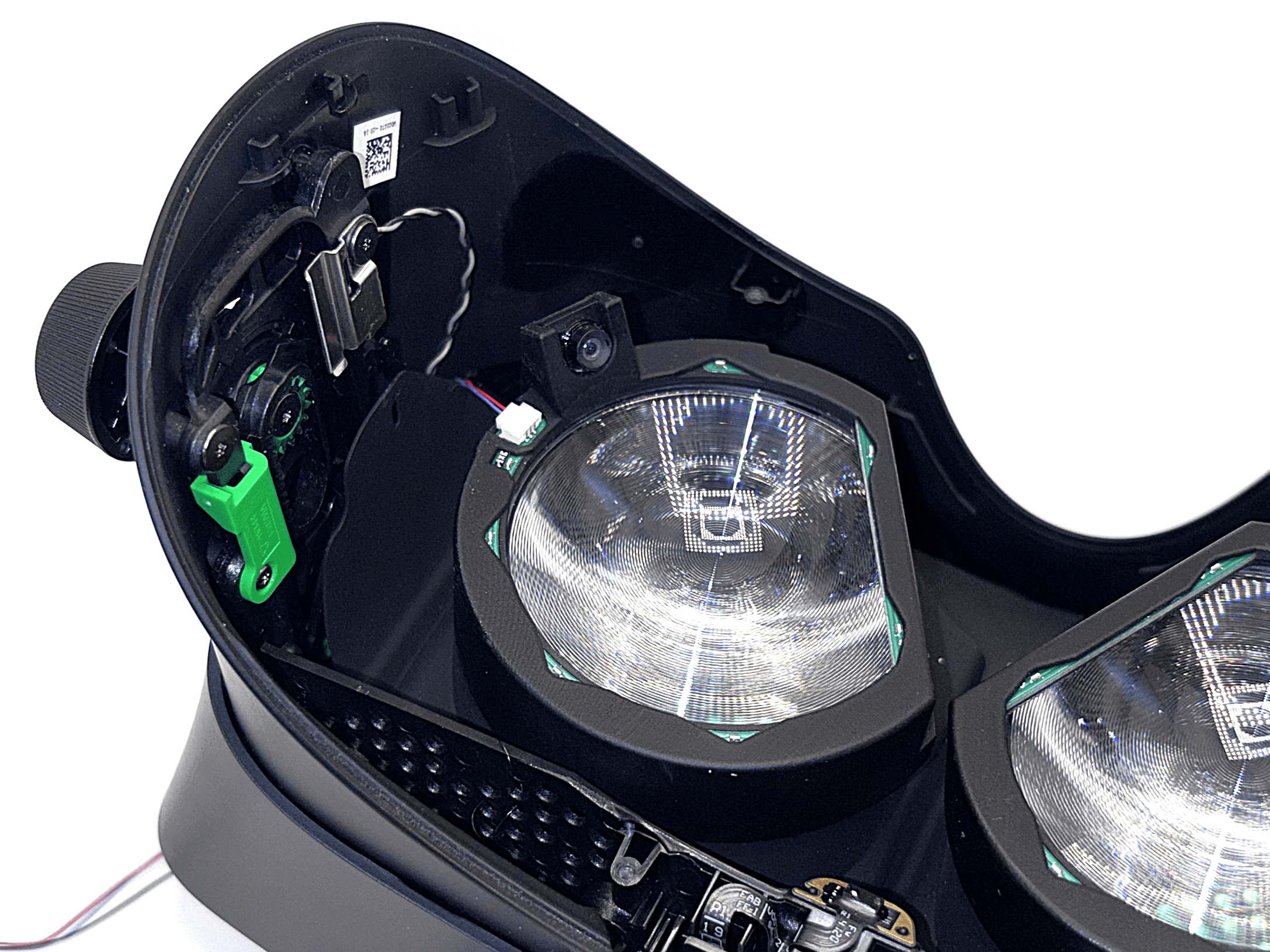

    Ring pressed onto lens with excess cable pulled through
    1 / 3

    After routing the two ribbon cables for the cameras, route the left flexible LED cable along the same path as shown in step 5.

    You may need to slightly lift the ring off the lens to guide the cable through. Be careful not to let the camera ribbon cable slip out while doing so.

    After connecting the cable to the ring, press the ring back onto the lens and gently pull any excess cable out from the front.

  9. 8

    Routing the Right LED Cable

    Route the flexible LED cable on the right side through the same path used in step 6.

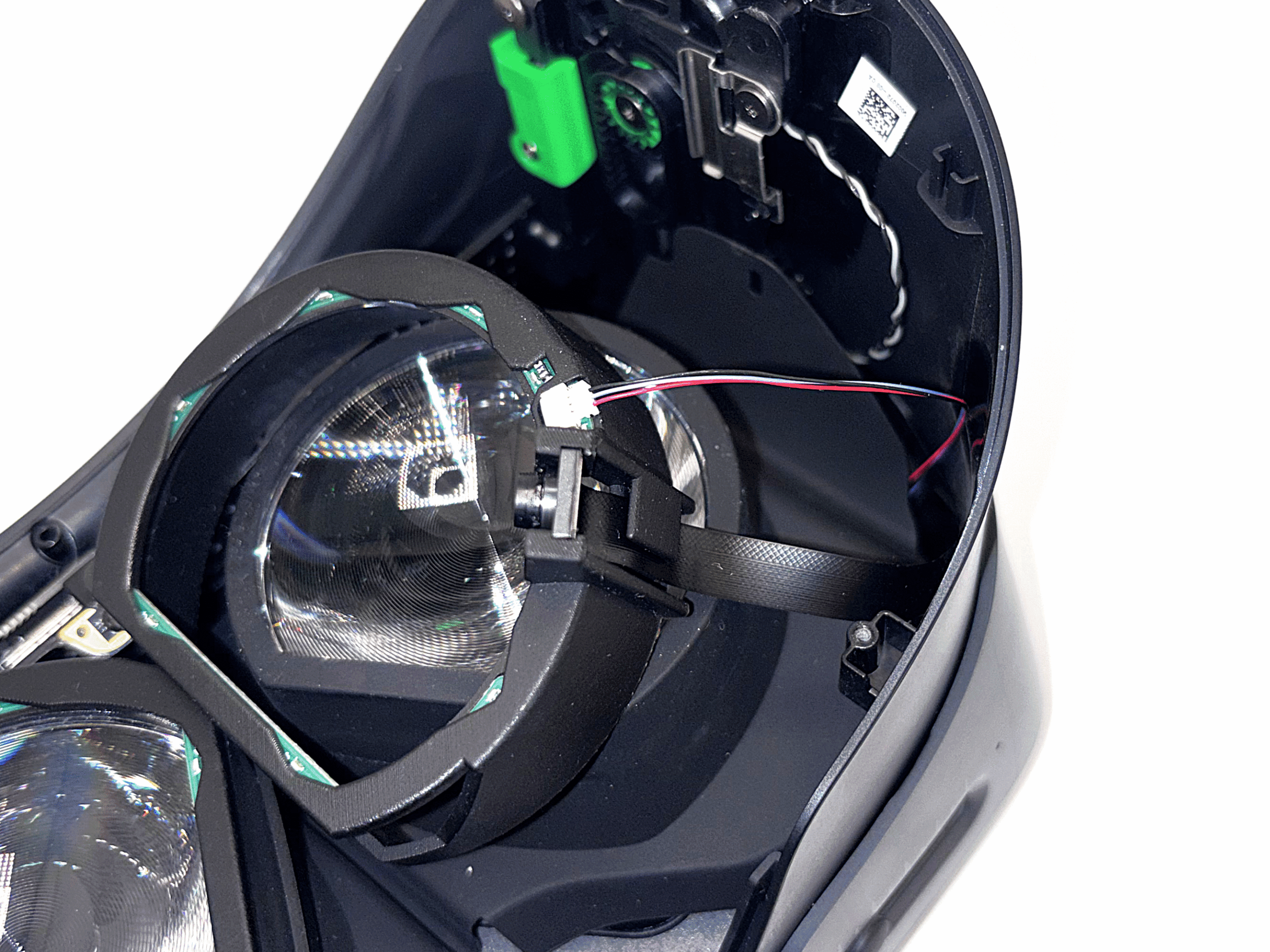

    Right LED cable being routed along the same path as step 6

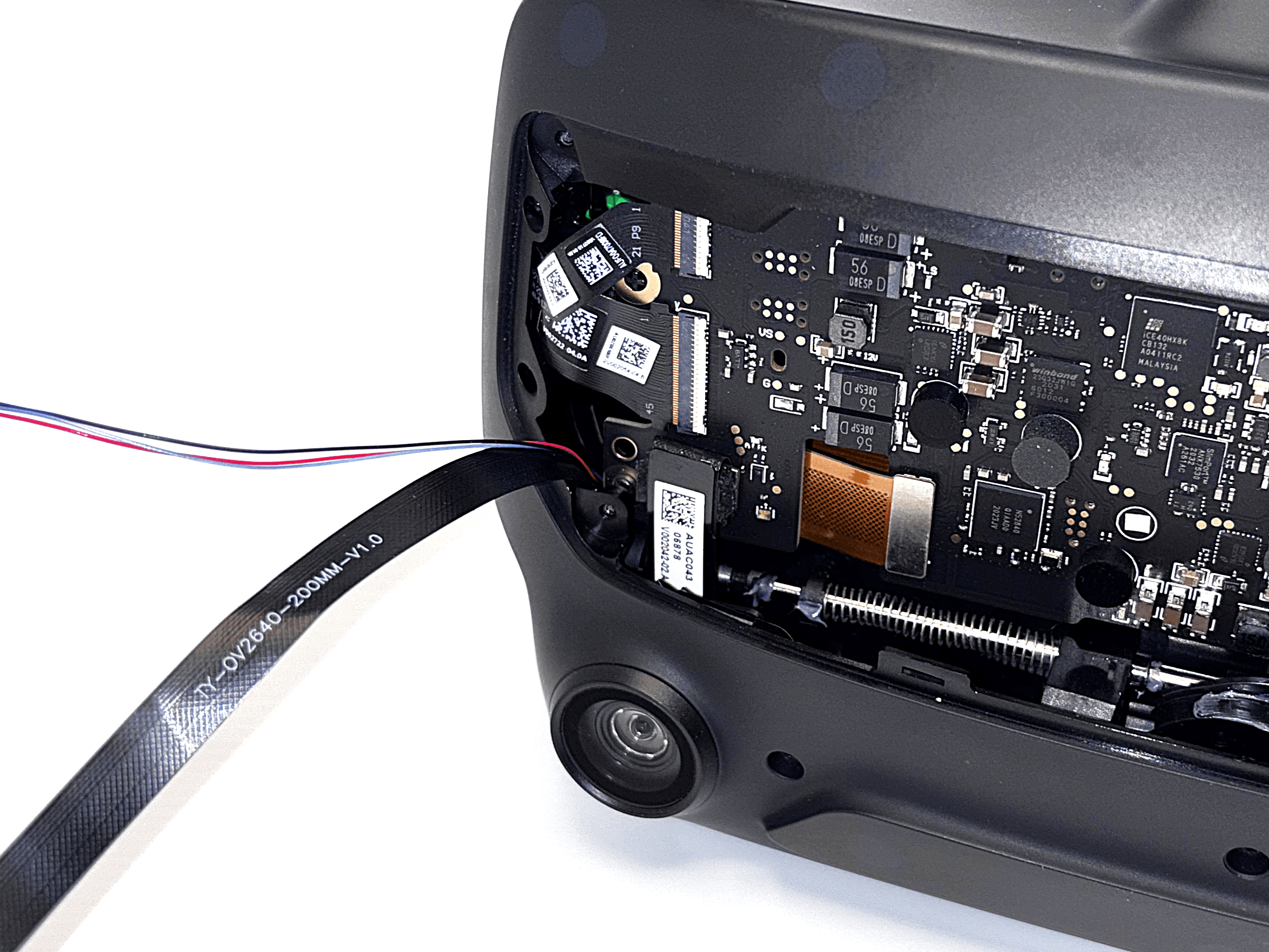

    Connecting the right LED cable to the ring
    Ring pressed onto lens with excess cable pulled through
    1 / 3

    Now repeat step 7 for the right side. Route the right flexible LED cable along the same path as shown in step 6.

    Again, you may need to slightly lift the ring off the lens to guide the cable through. Be careful not to let the camera ribbon cable slip out while doing so.

    After connecting the cable to the ring, press the ring back onto the lens and gently pull any excess cable out from the front.

  10. 9

    Reattach the Eye Tube Gasket

    With all cables routed, reattach the eye tube gasket to the headset.

    Placing the left edge of the eye tube gasket onto the hooks

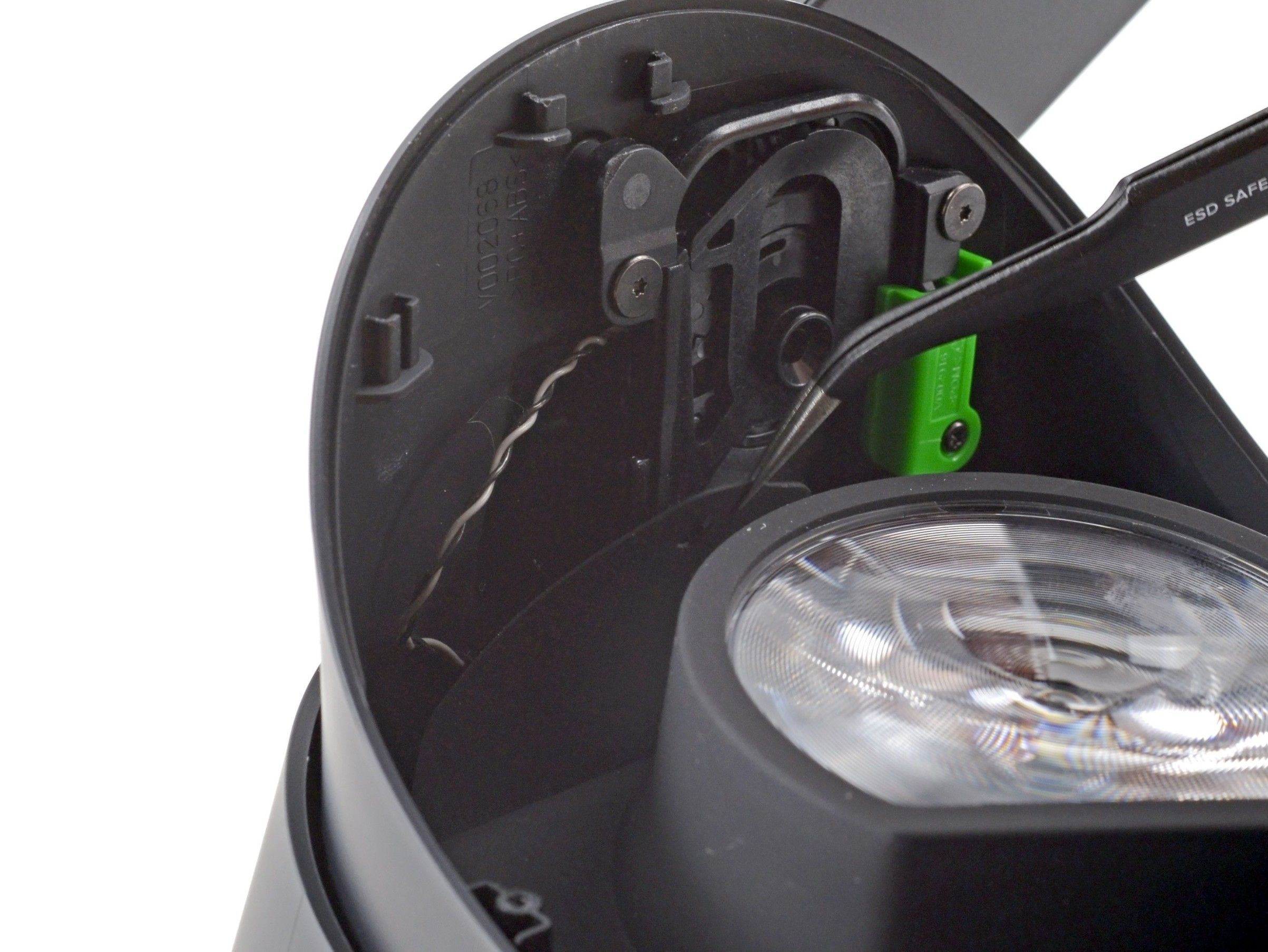

    Attaching the right edge of the gasket
    Eye tube gasket fully reattached
    1 / 3
    • Use a pair of tweezers to place the left edge of the eye tube gasket onto the small hooks on the headset.
    • Repeat the process for the right side of the gasket.
  11. 10

    Reattach the Face Gasket Bezel

    With all cables in place, reattach the face gasket bezel to complete the hardware installation.

    Positioning the left side of the face gasket bezel
    Positioning the right side of the face gasket bezel

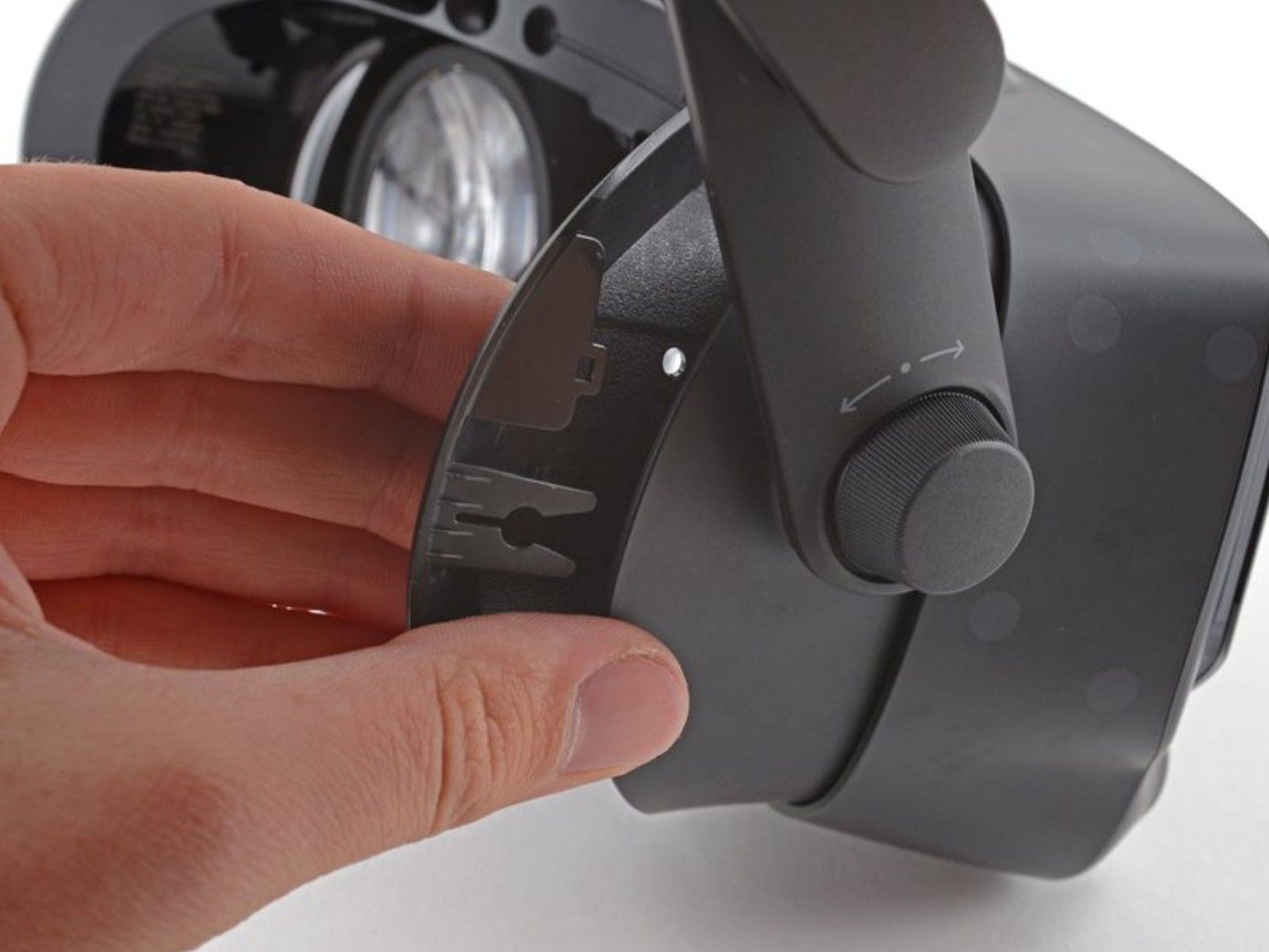

    Sliding the bezel onto the headset
    Bezel fully slid into place
    Fastening the four T5 Torx screws

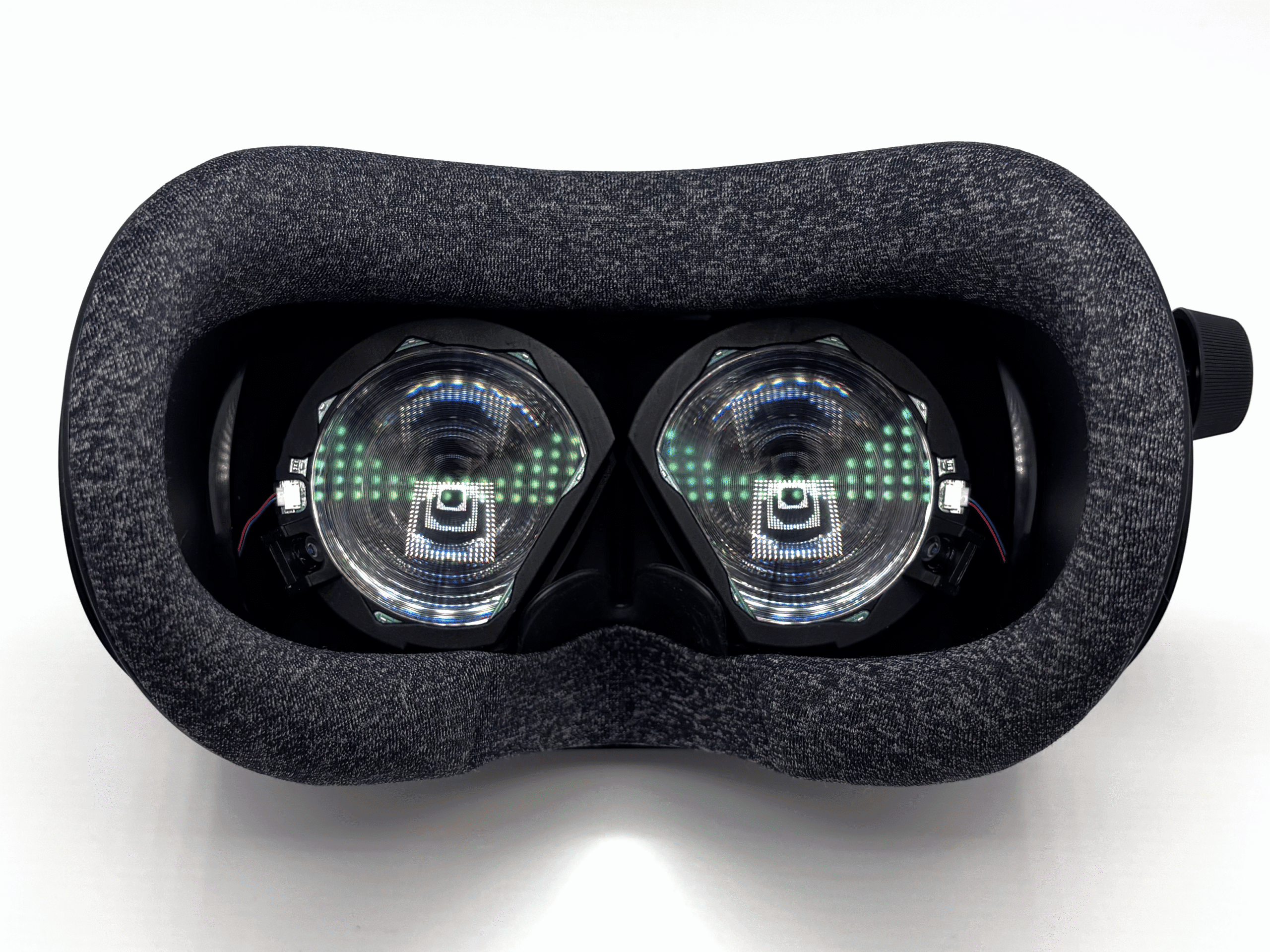

    Face gasket bezel fully reattached
    1 / 6
    • Position both sides of the face gasket bezel and carefully slide it onto the headset.
    • Use a T5 Torx screwdriver to fasten the four 6 mm screws, securing the bezel to the headset and reattach the magnetic face cushion.

    Make sure the clips on the face gasket bezel are properly aligned with the headset before sliding it fully into place.

  12. 11

    Cable Routing Preparation

    To prevent the left ribbon cable from getting caught in the fan, it needs to be routed through a specific gap.

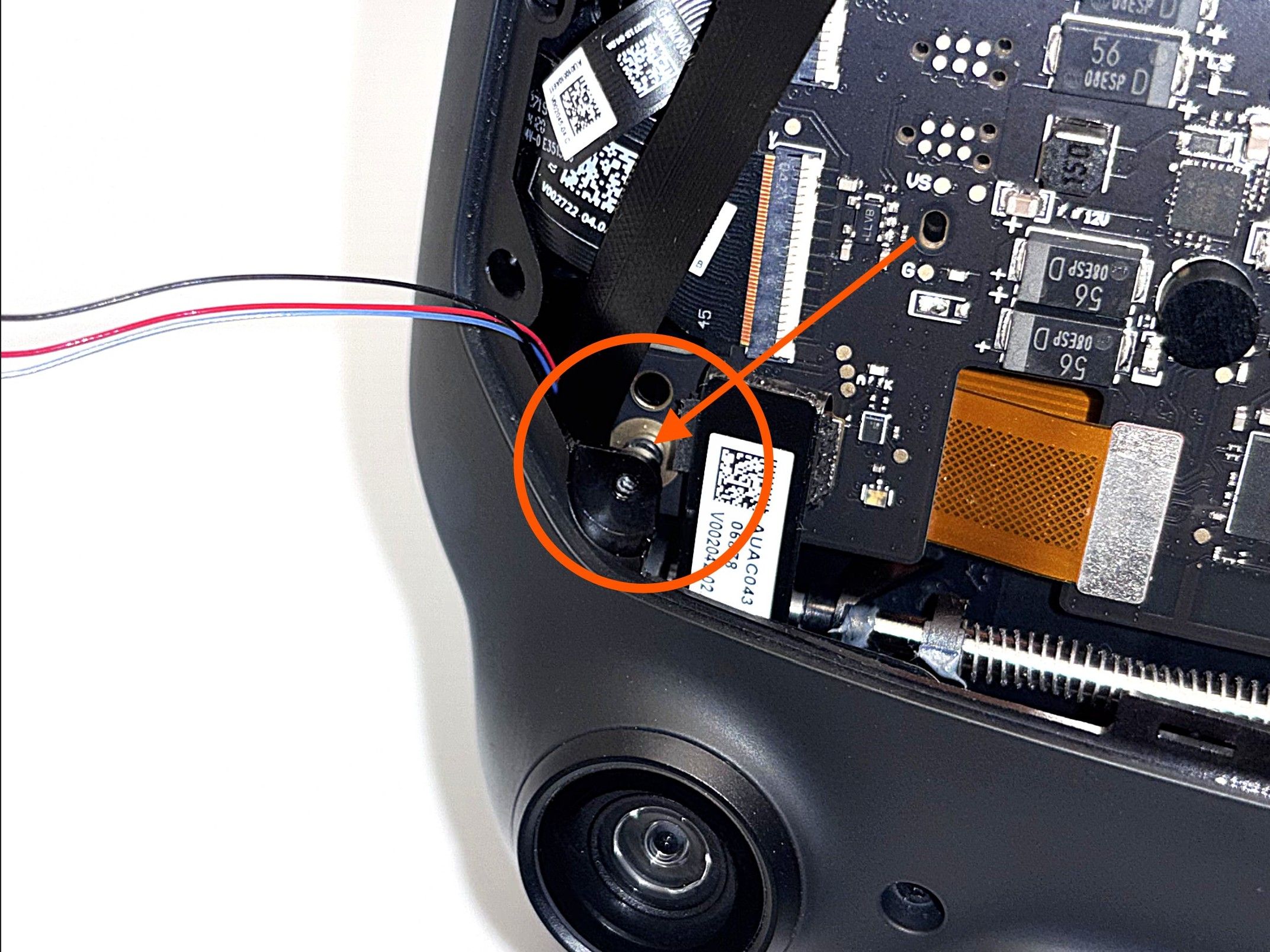

    Overview of the cable routing gap on the left side

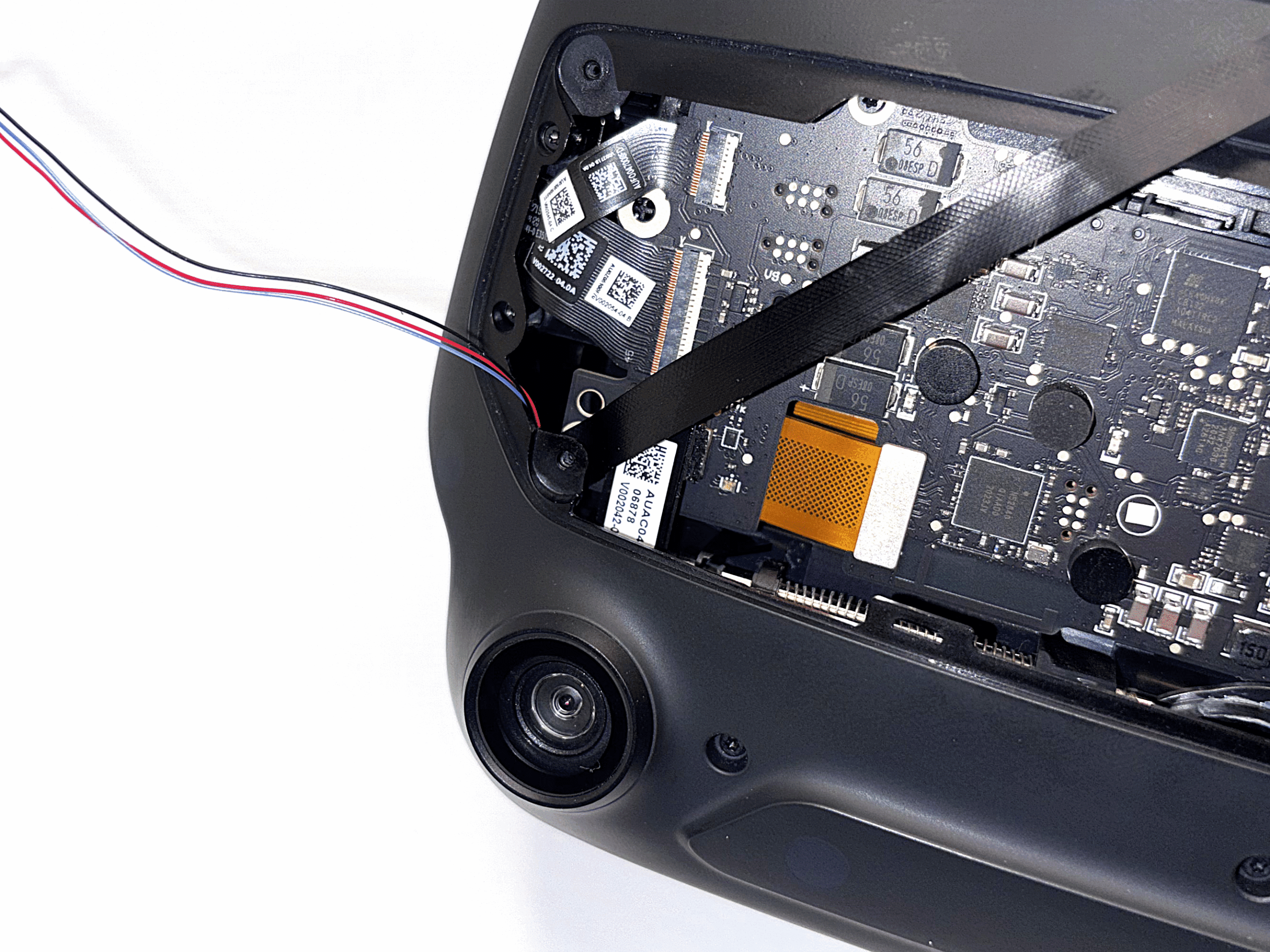

    Gap between plastic housing and threaded insert highlighted

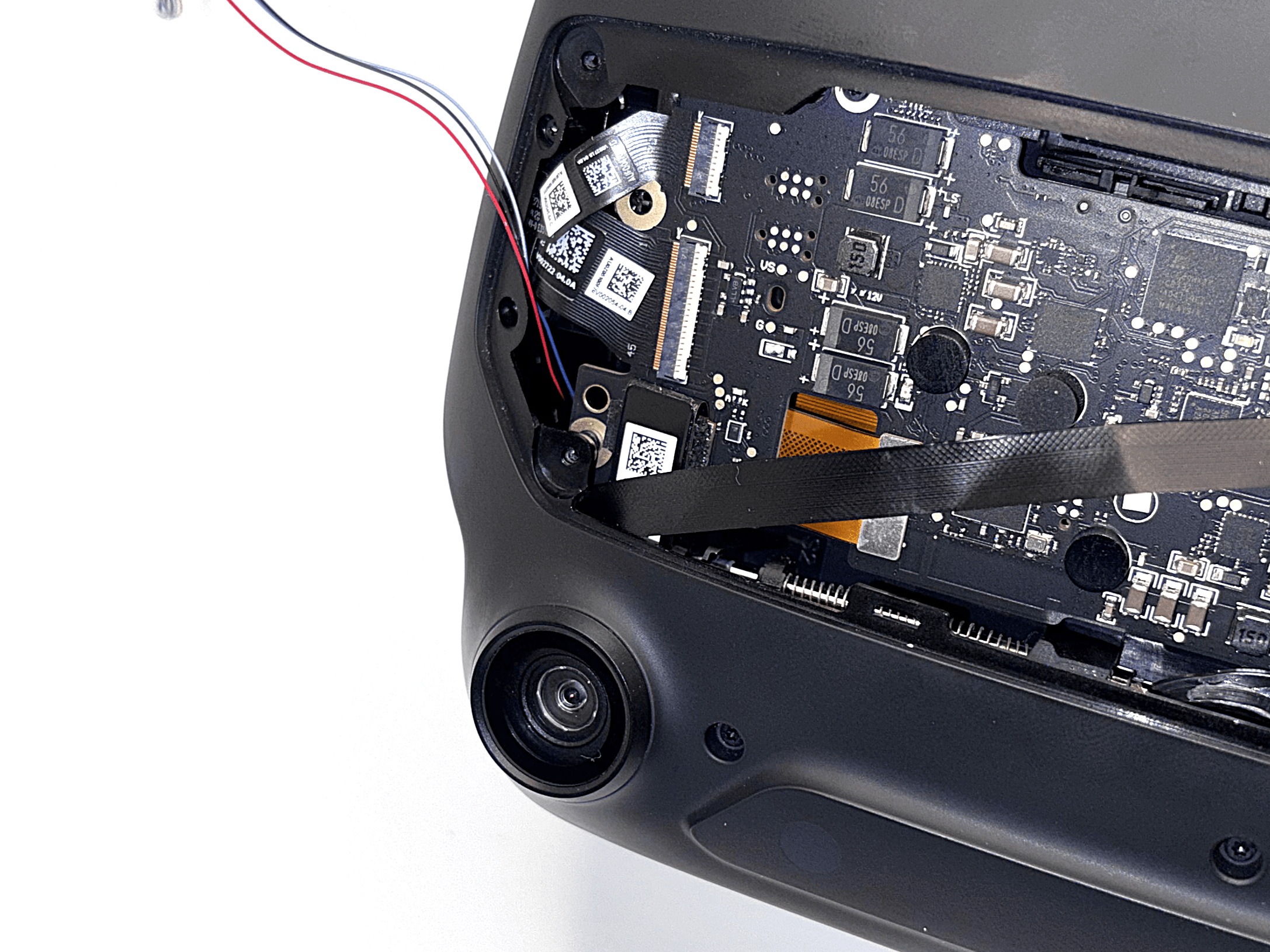

    Guiding the ribbon cable through the gap

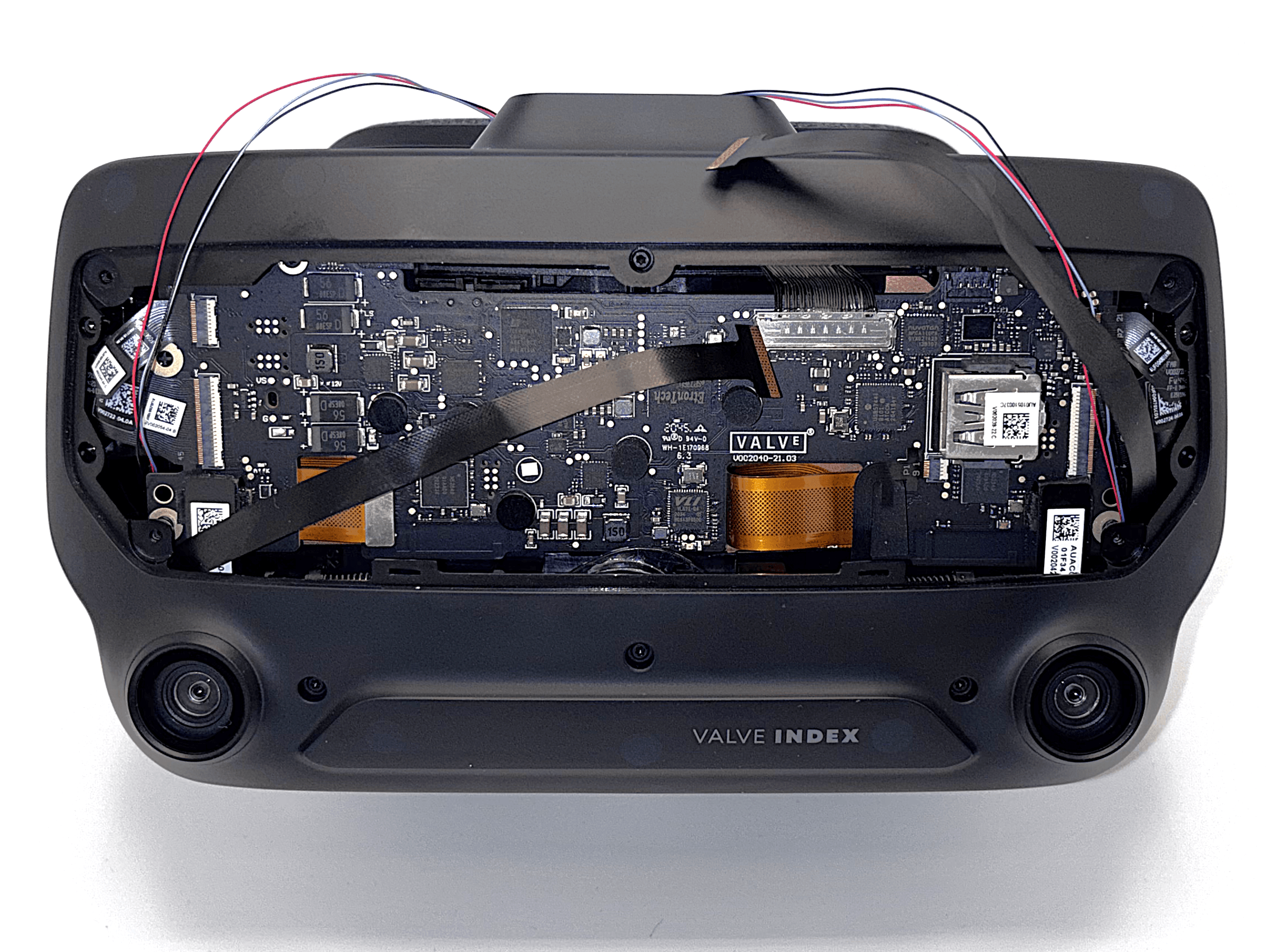

    Ribbon cable fully pushed through the gap
    1 / 4
    • Make sure the field-of-view adjustment is still fully extended and that the IPD is set to the lowest setting (lenses fully inward).
    • Guide the LEFT ribbon cable (when looking at the Index from the front) through the small gap between the plastic housing of the Index and the threaded insert, as shown in the pictures.

    Make absolutely sure that the ribbon cable is fully pushed through and not stuck in the gap. If the cable gets caught there, it will be permanently damaged beyond repair.

  13. 12

    Installing the Frunk

    Route the cables through the new frunk and secure it to the headset.

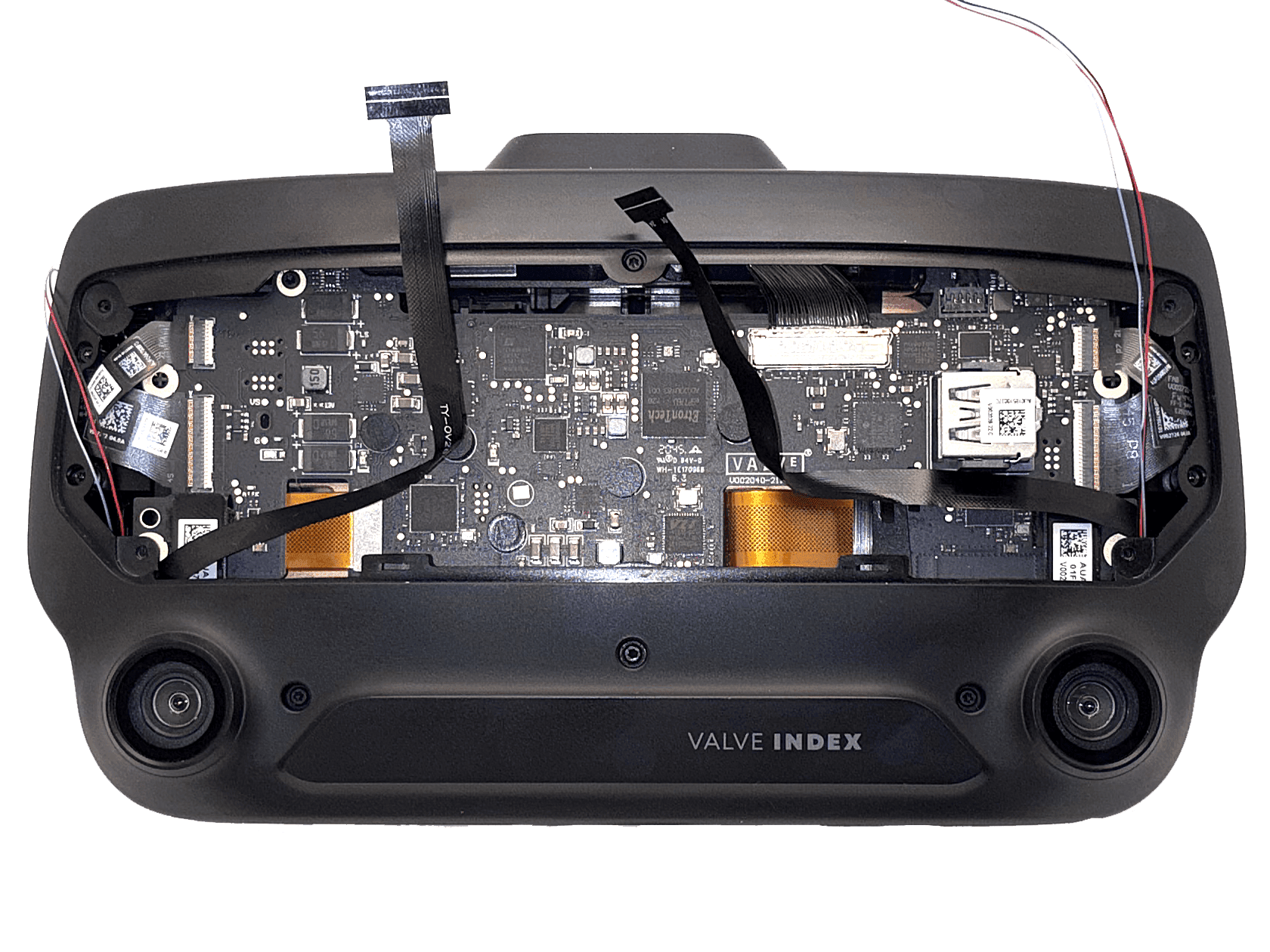

    Cables pre-bent and routed correctly through the frunk

    Read the entire step before you start!

    • Avoid sharp bends: The cables must not be sharply bent or creased. A gentle curve, as shown in the photos, is fine.
    • Do not pinch the cables: Make sure the ribbon cables are not pinched when attaching the new frunk. They should lie as flat as possible and must not stand on edge, as this could compress and damage them.

    This step requires some patience and finesse, because the cables tend to stand upright or shift out of position.

    Sometimes it helps to pre-bend the cables slightly so they naturally fall into the correct position during installation, as shown in the picture.

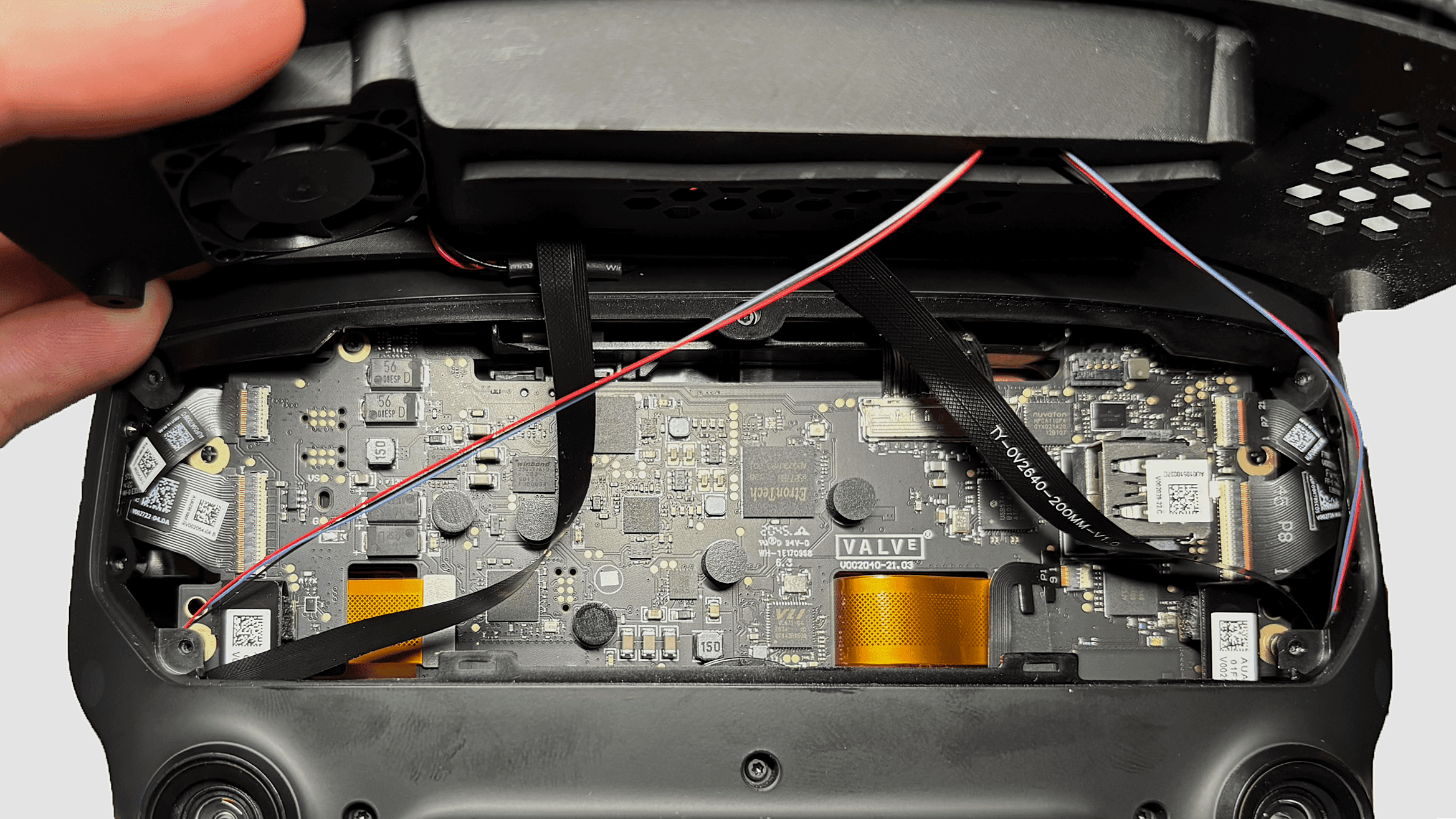

  14. Cable routing through the frunk, showing correct positions

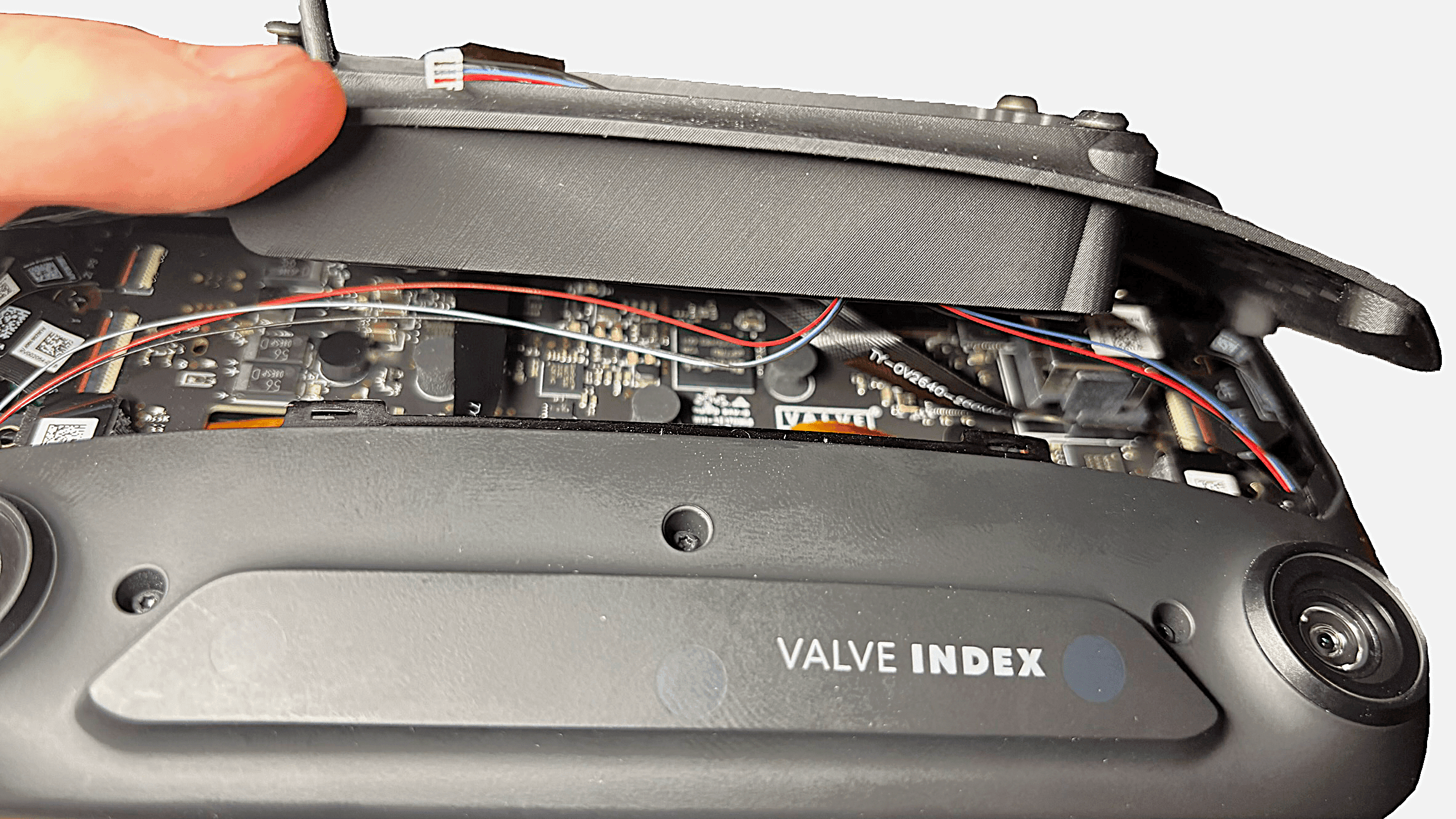

    Close-up of right cable near USB port, routed away from connector
    1 / 2

    When attaching the frunk, make sure the cables run roughly as shown in the pictures. The exact routing is not critical, but it is very important that they are not pinched or sharply bent.

    Pay special attention to the right cable near the USB port. In my experience, it tends to stand upright in front of the connector. The cable should route away from the USB port, not in front of it.

    You should not feel any significant resistance when placing the new frunk. If you have to use force to push it down, one of the ribbon cables is probably being pinched, most likely the right one when looking at the Index from the front.

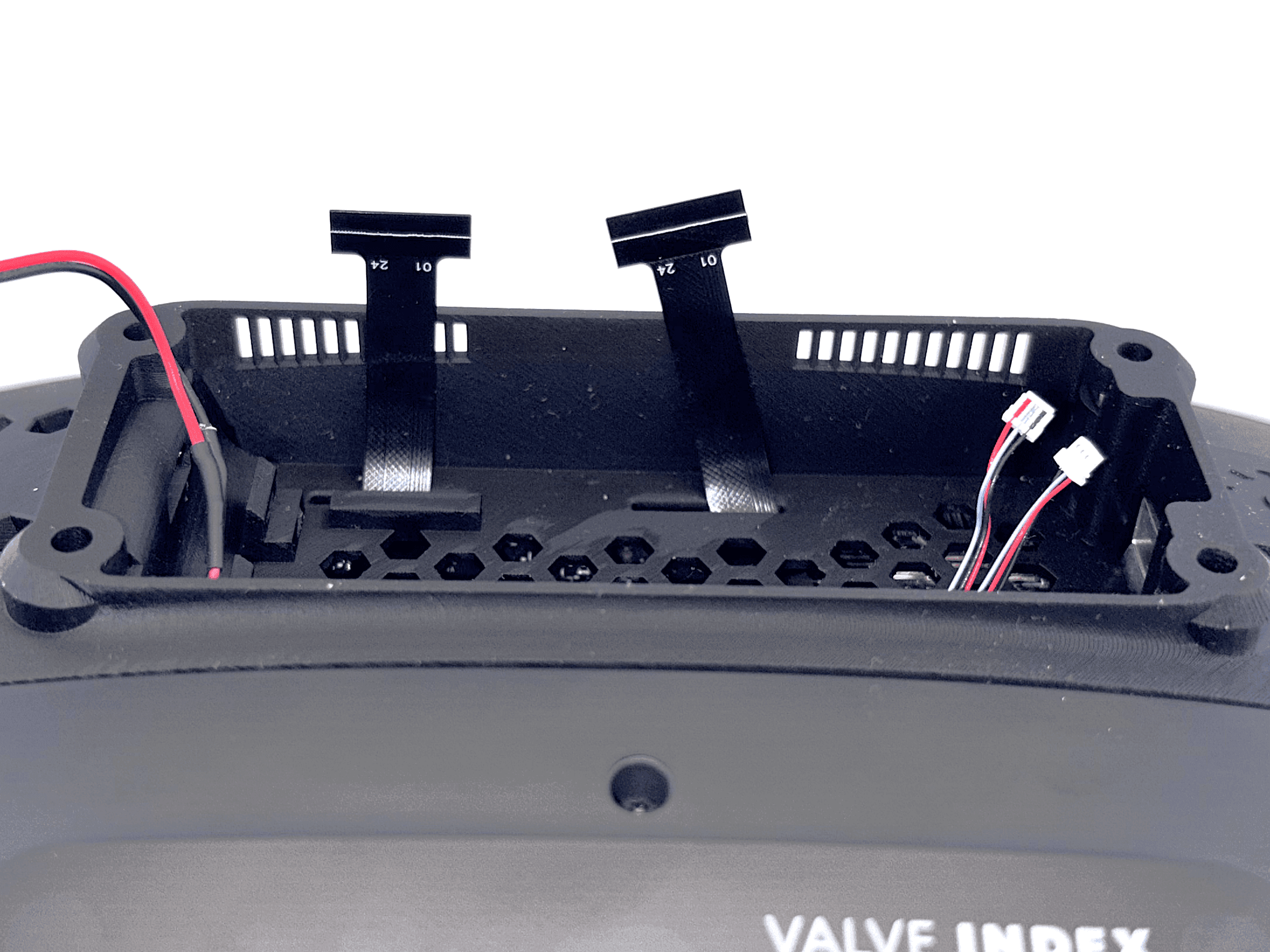

  15. Cables extending about 1 cm beyond the frunk edge

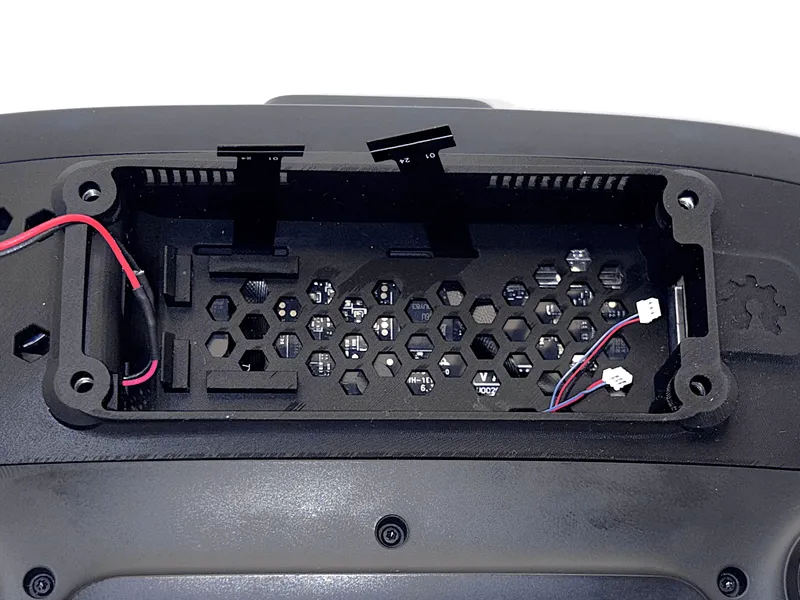

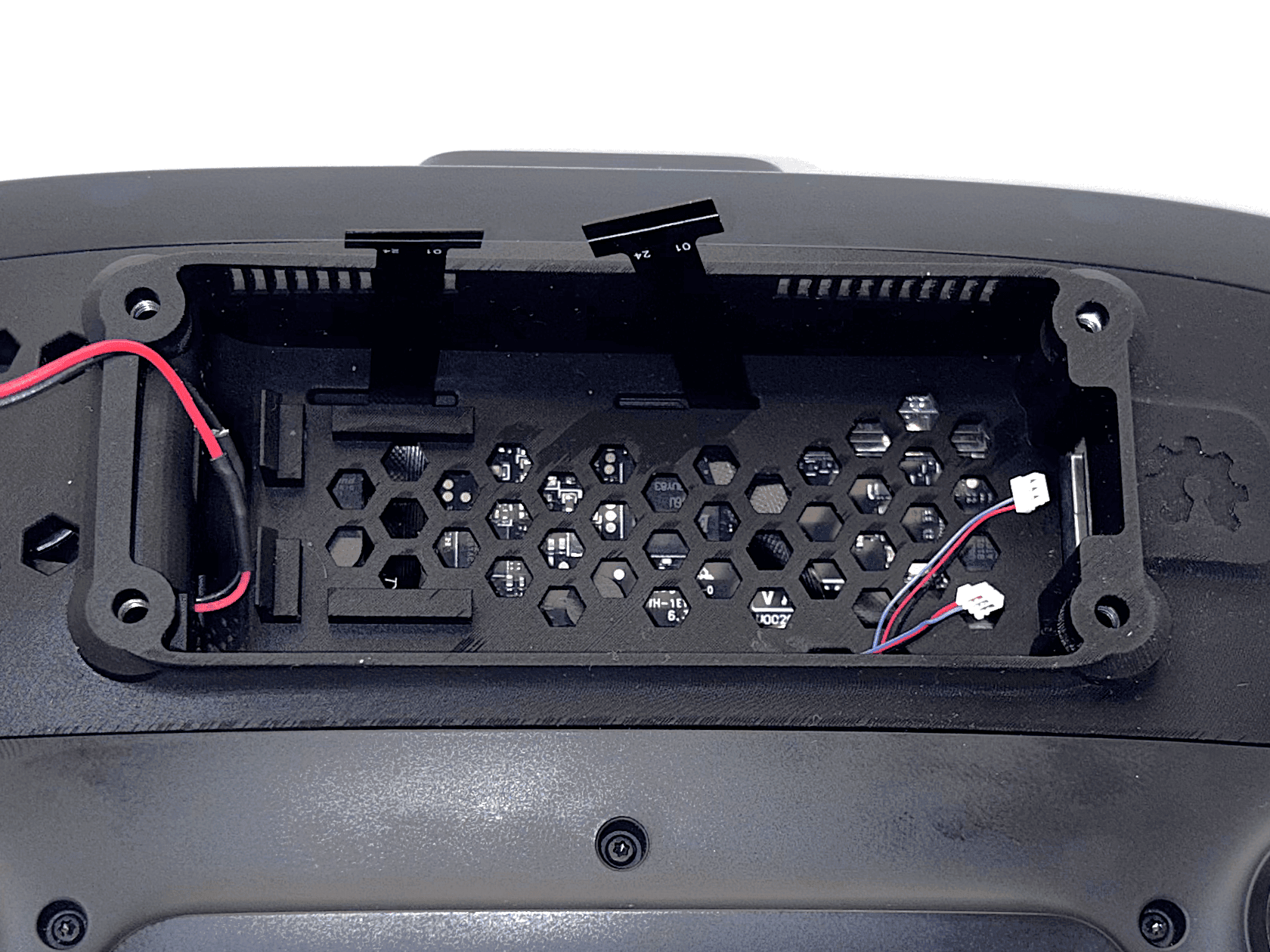

    Gold contacts of ribbon cables facing upward in the passthrough
    1 / 2

    The cables should extend about 1 cm beyond the edge of the frunk so you can easily connect them later. The exact length is not critical, as long as there is enough cable to plug them in comfortably.

    Before tightening the screws, make sure that no ribbon cable has shifted into the path of a screw (see step 11).

    Make sure the gold contact side of the ribbon cables is facing upward when you feed them through the passthrough.

  16. 13

    Installing the Mainboard

    Carefully insert the mainboard into the USB connector and secure it in place.

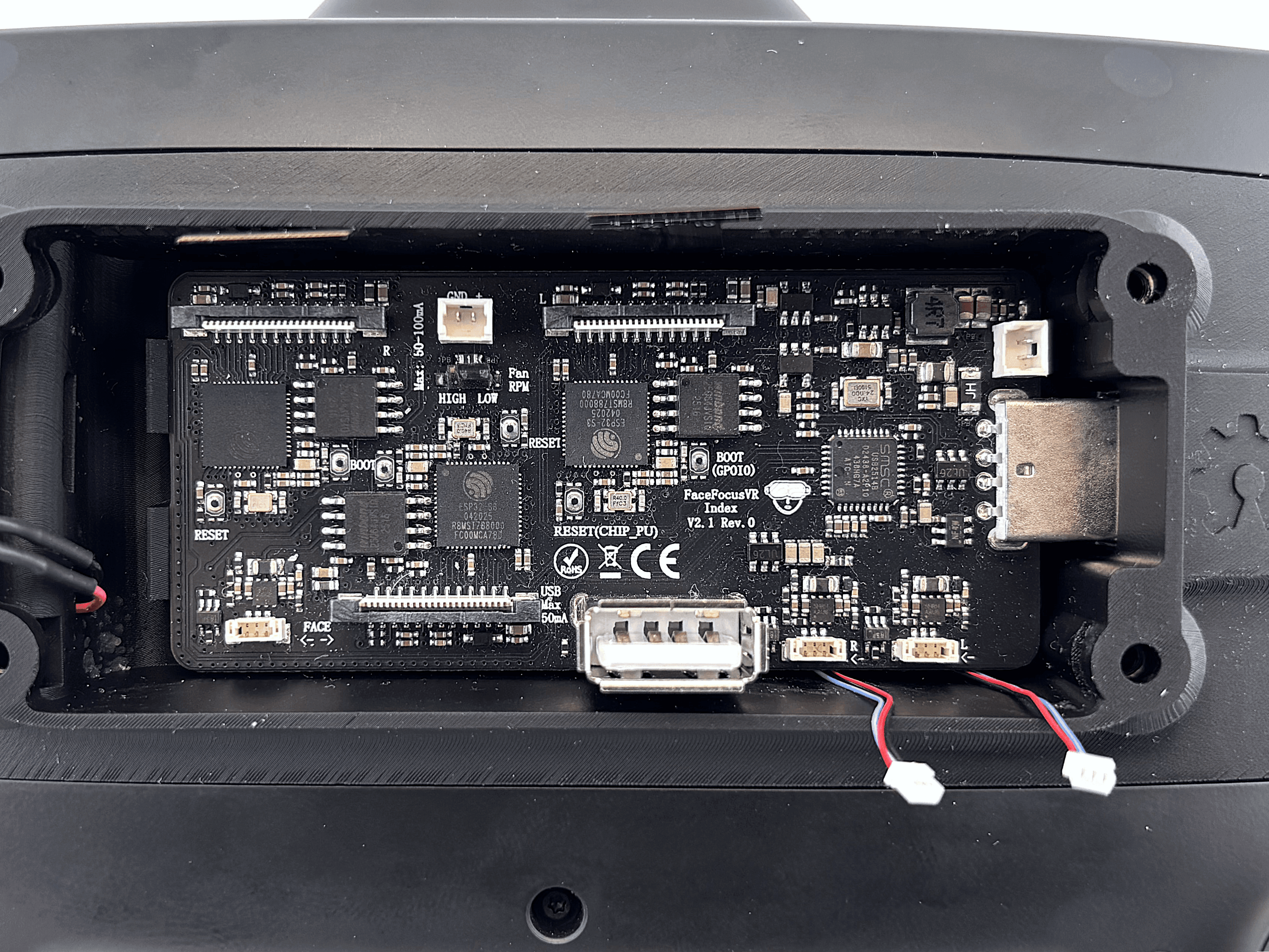

    Mainboard being inserted at an angle into the USB connector
    • Insert the mainboard at a slight angle into the USB connector. As soon as it clears the edge of the frunk, level it out so it slides straight into the USB connector.
    • Once the board is fully inserted, press down on the back until it clicks into the hook.
  17. 14

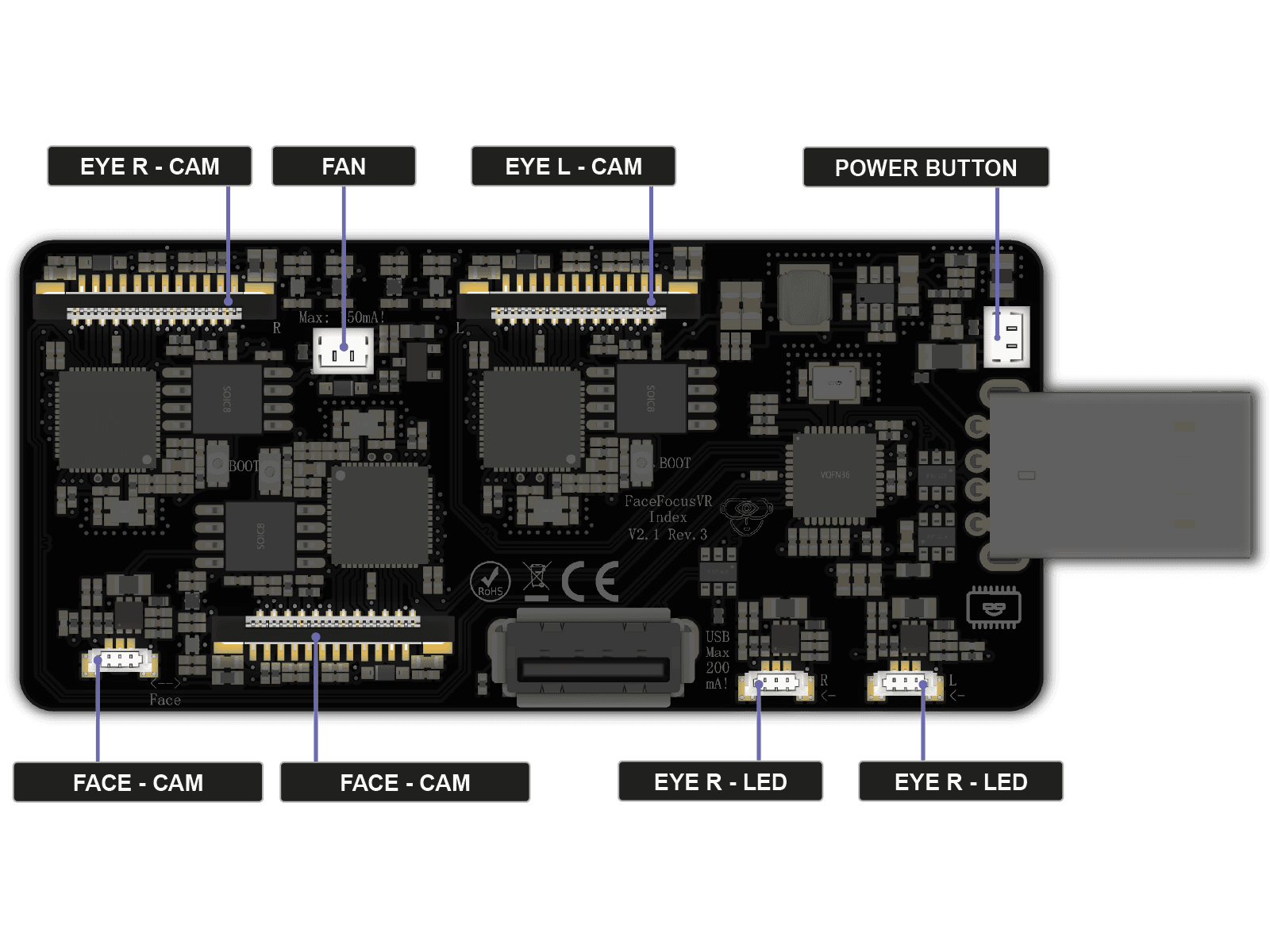

    Connect all Cables

    Connect the ribbon cables, LED connectors, and fan.

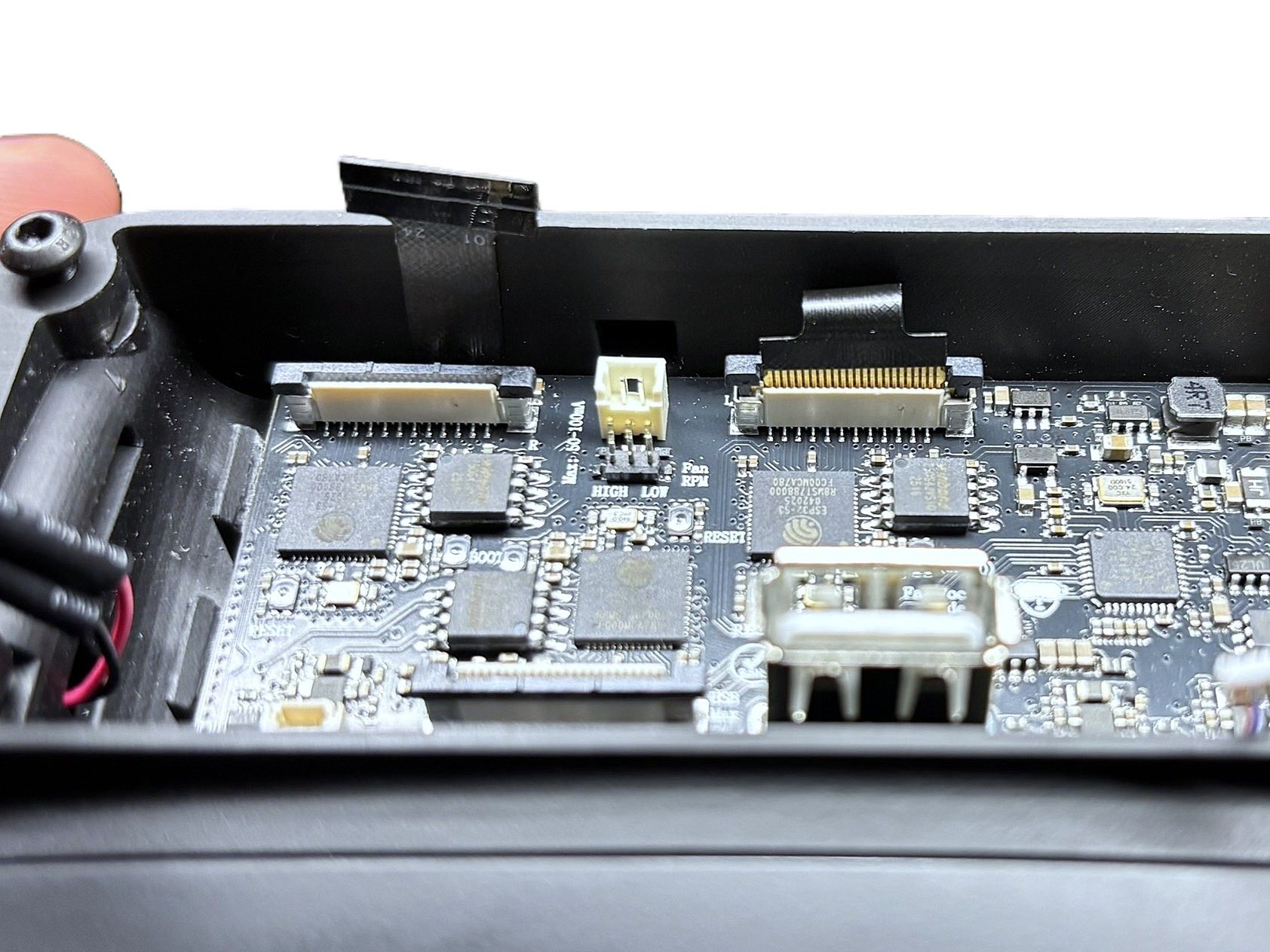

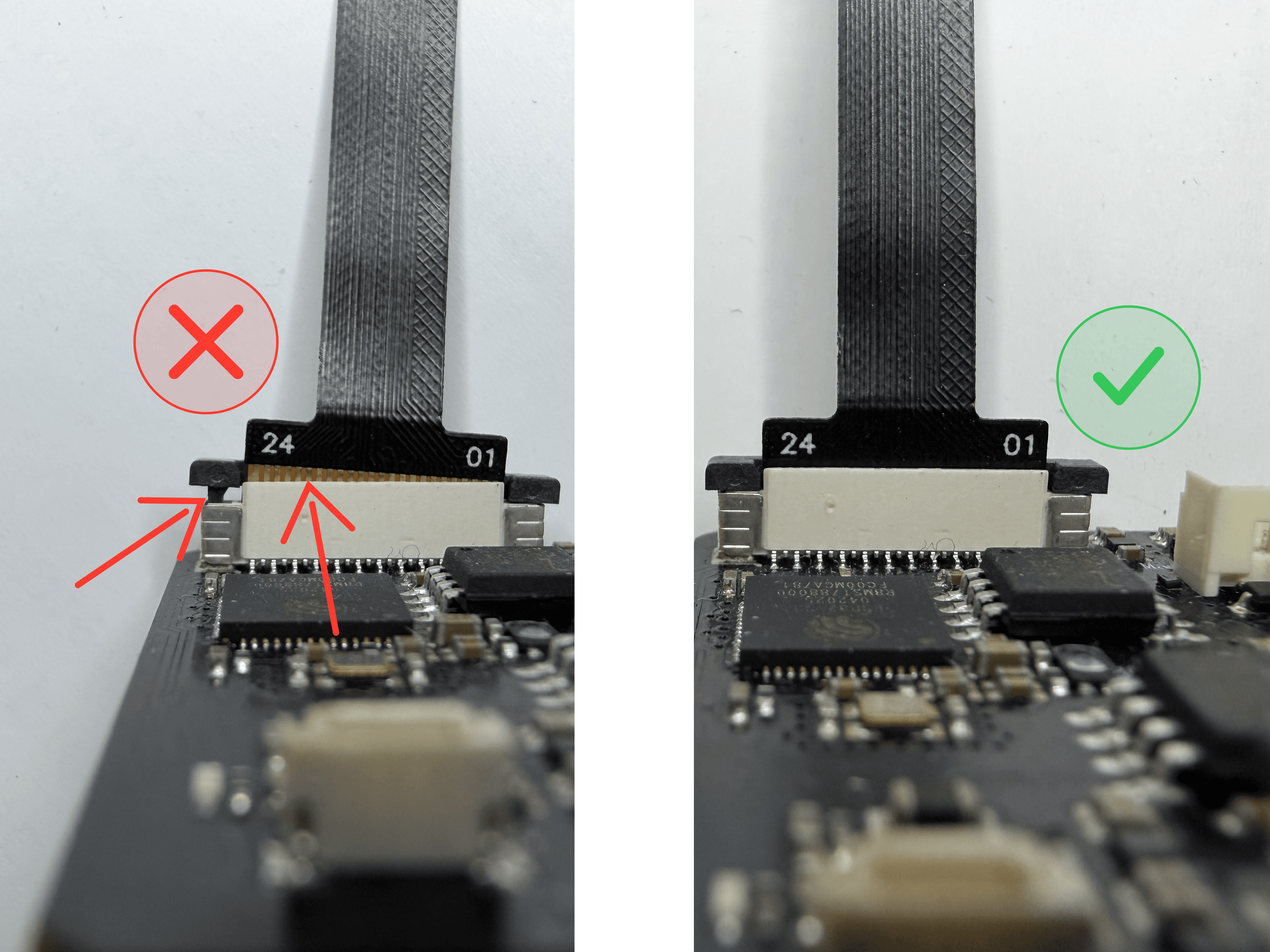

    Ribbon cable gently bent and connected to the mainboard

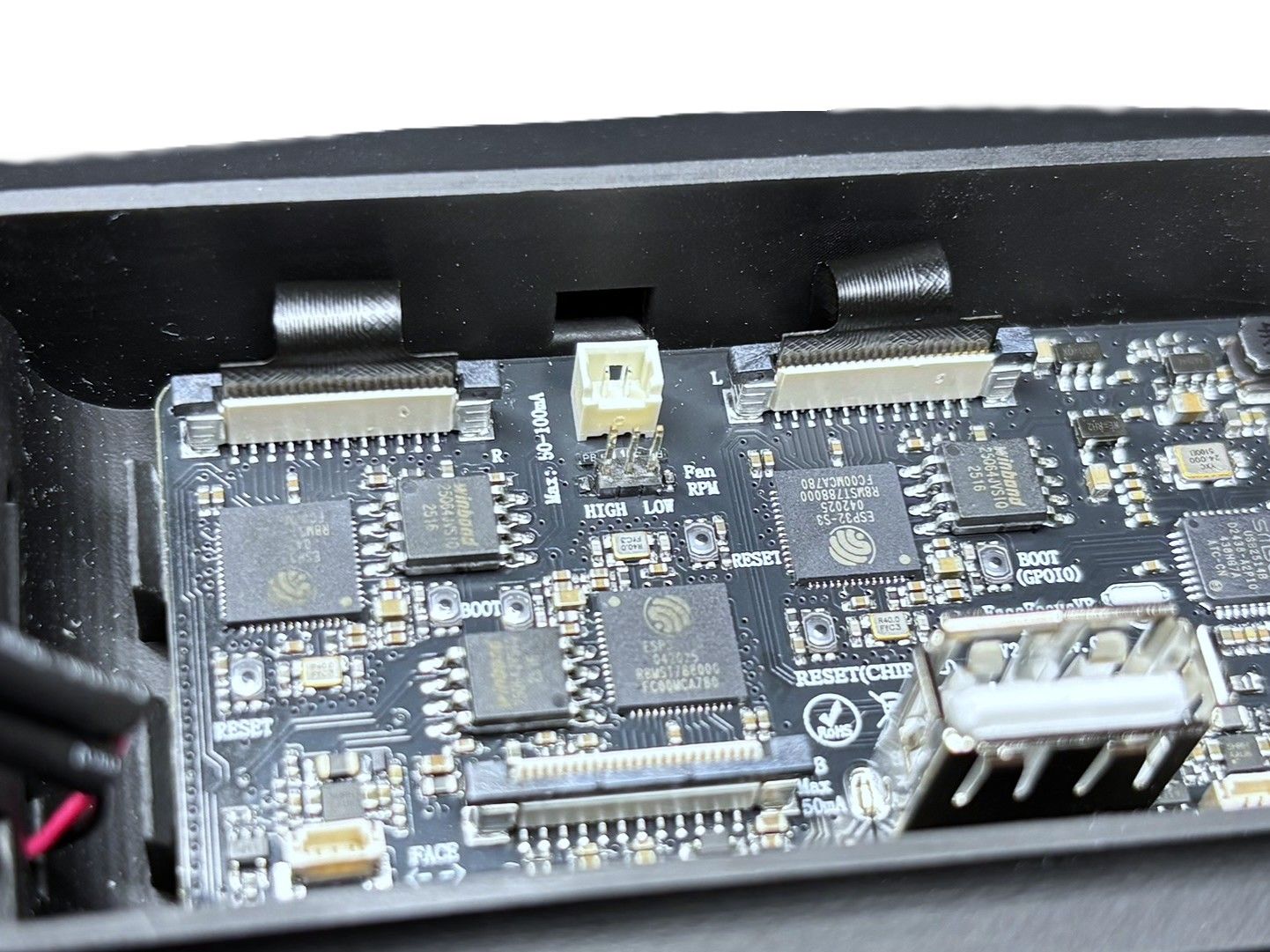

    Black connector tabs lifted upward to open the ZIF connector

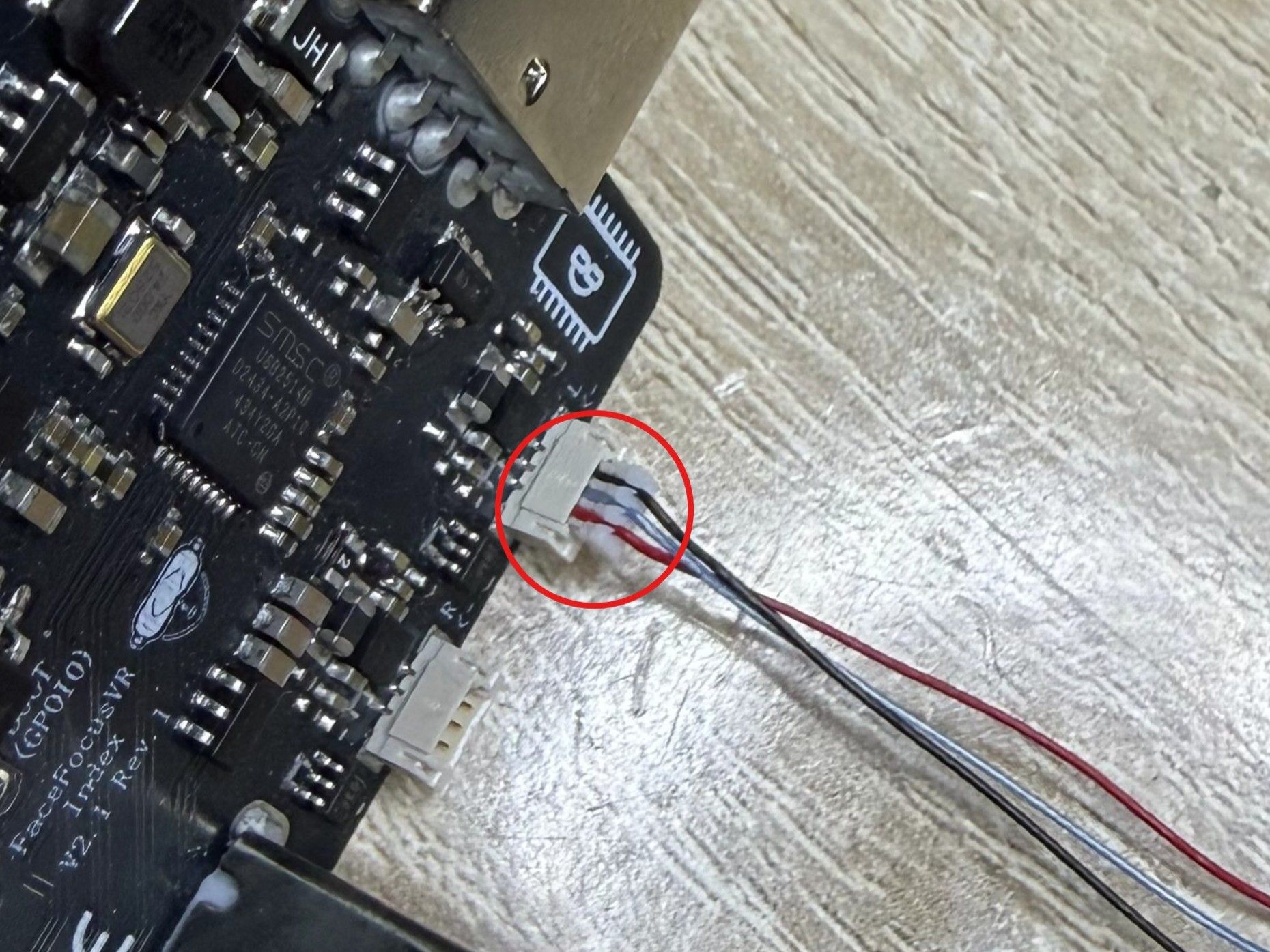

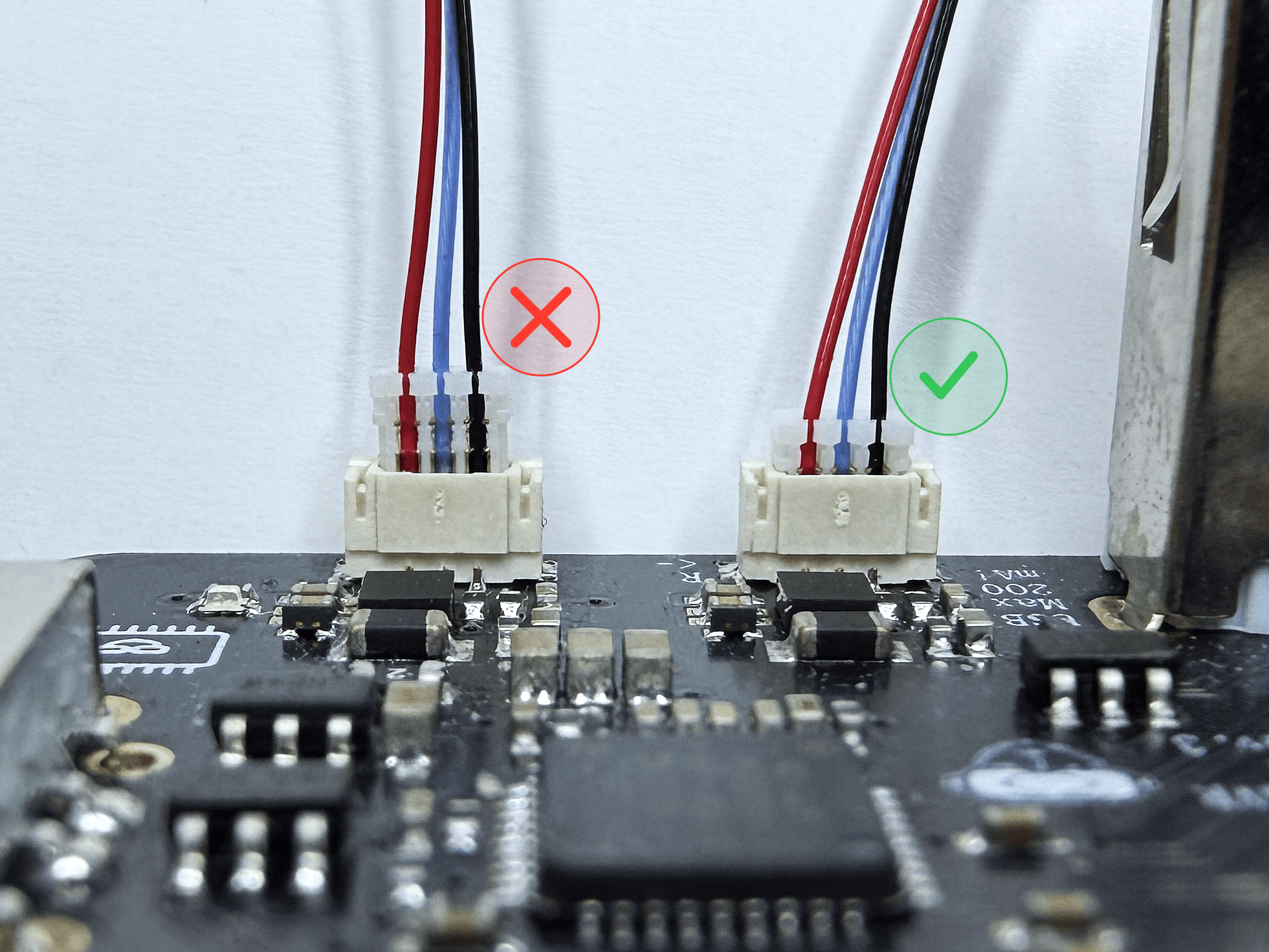

    LED connector orientation reference

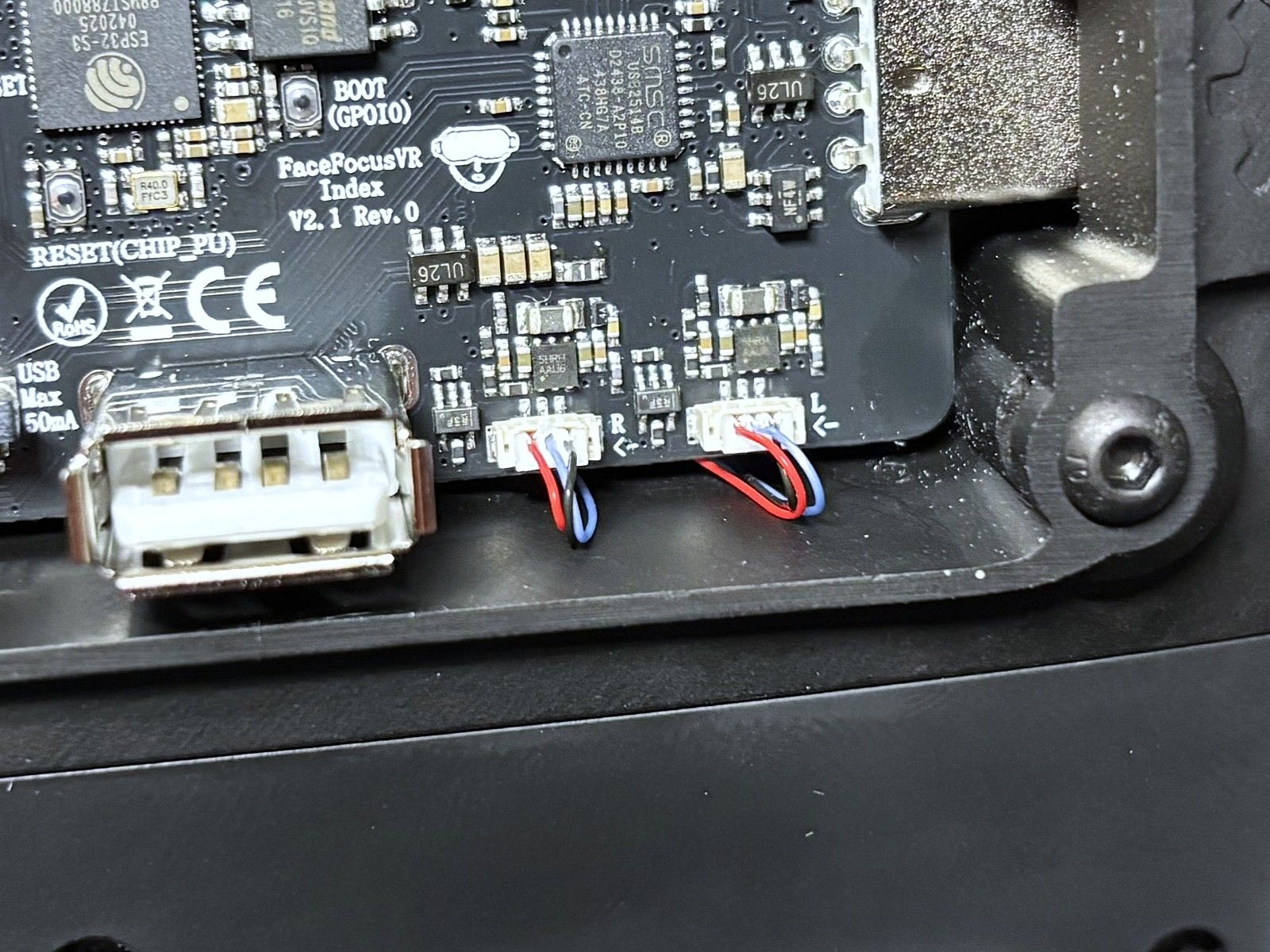

    LED connector with metal contacts facing downward

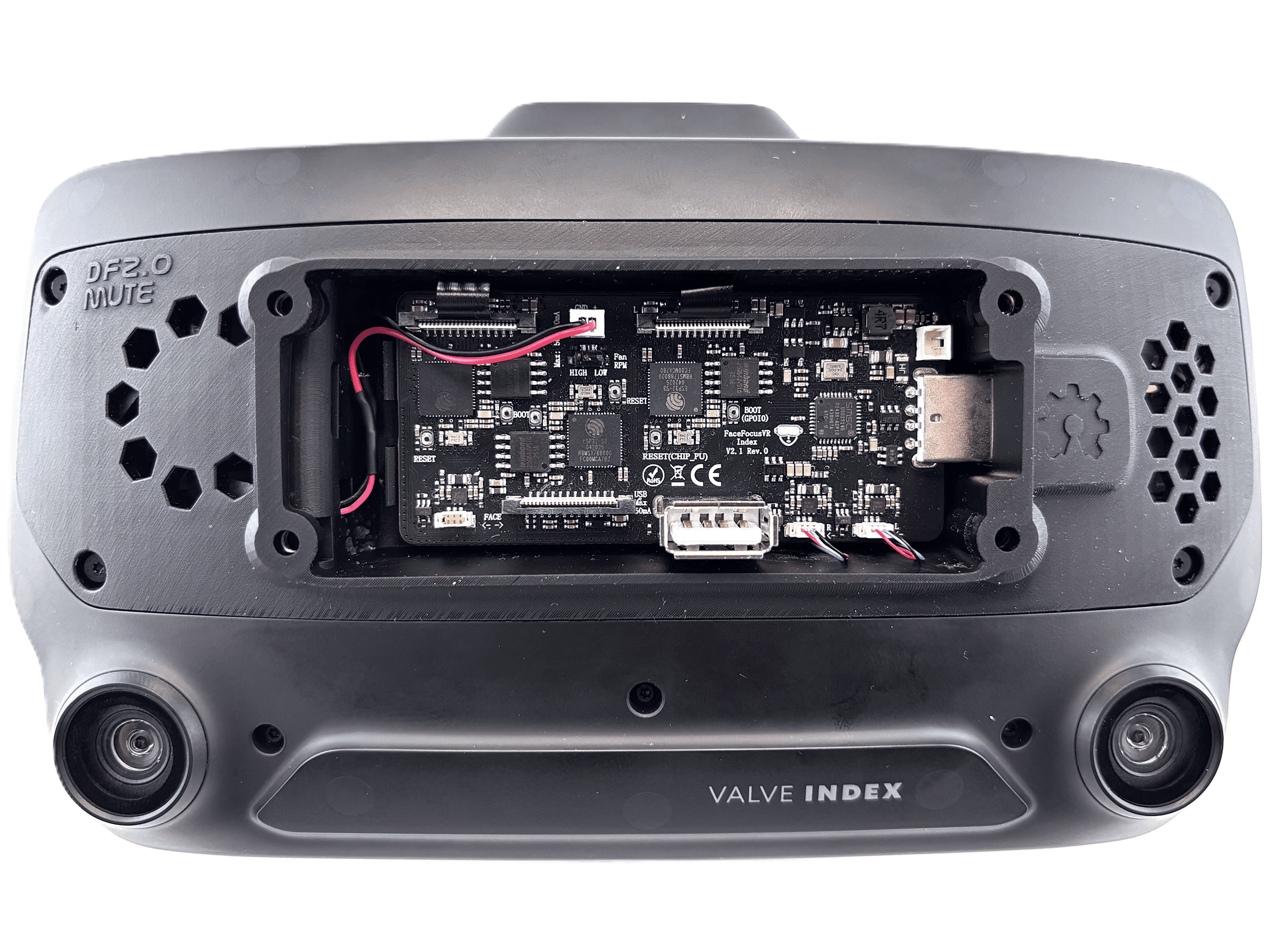

    Fan connector plugged into the mainboard
    1 / 5
    • Connect the ribbon cables. Do not crease them, bend them gently as shown in the picture.
    • Open the connectors by lifting the black tabs on the sides upward, as demonstrated in this video.
    • You can now also plug in the two connectors for the LEDs. Pay attention to the connector's orientation, as it only fits one way, do not force it. The cable colors and wire order do not matter. Just make sure the metal contacts of the connector are facing downward when plugging it in, as shown in the third picture.
    • Lastly, plug in the fan.

    Make sure the metal contacts of the LED connectors are facing downward when plugging in, it only fits one way, so do not force it.

  18. 15

    Front Cover

    Attach the front cover with the face tracking module and power switch.

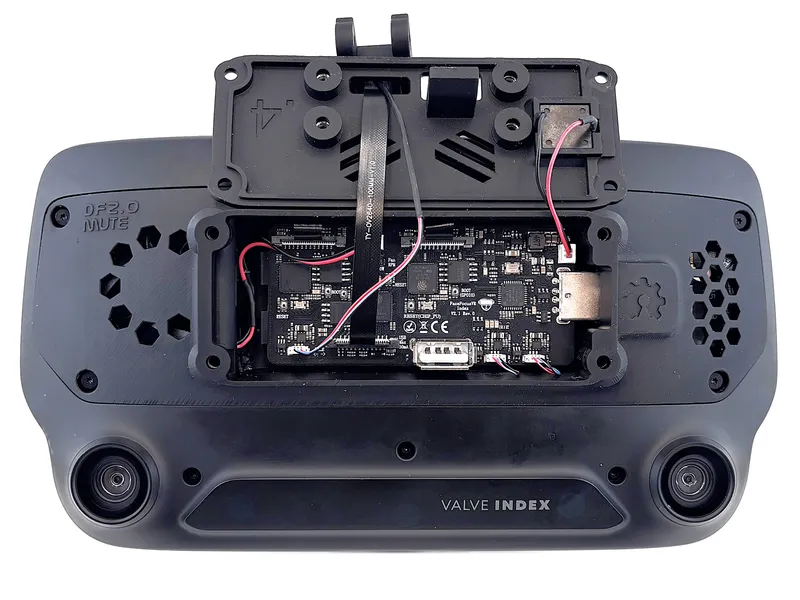

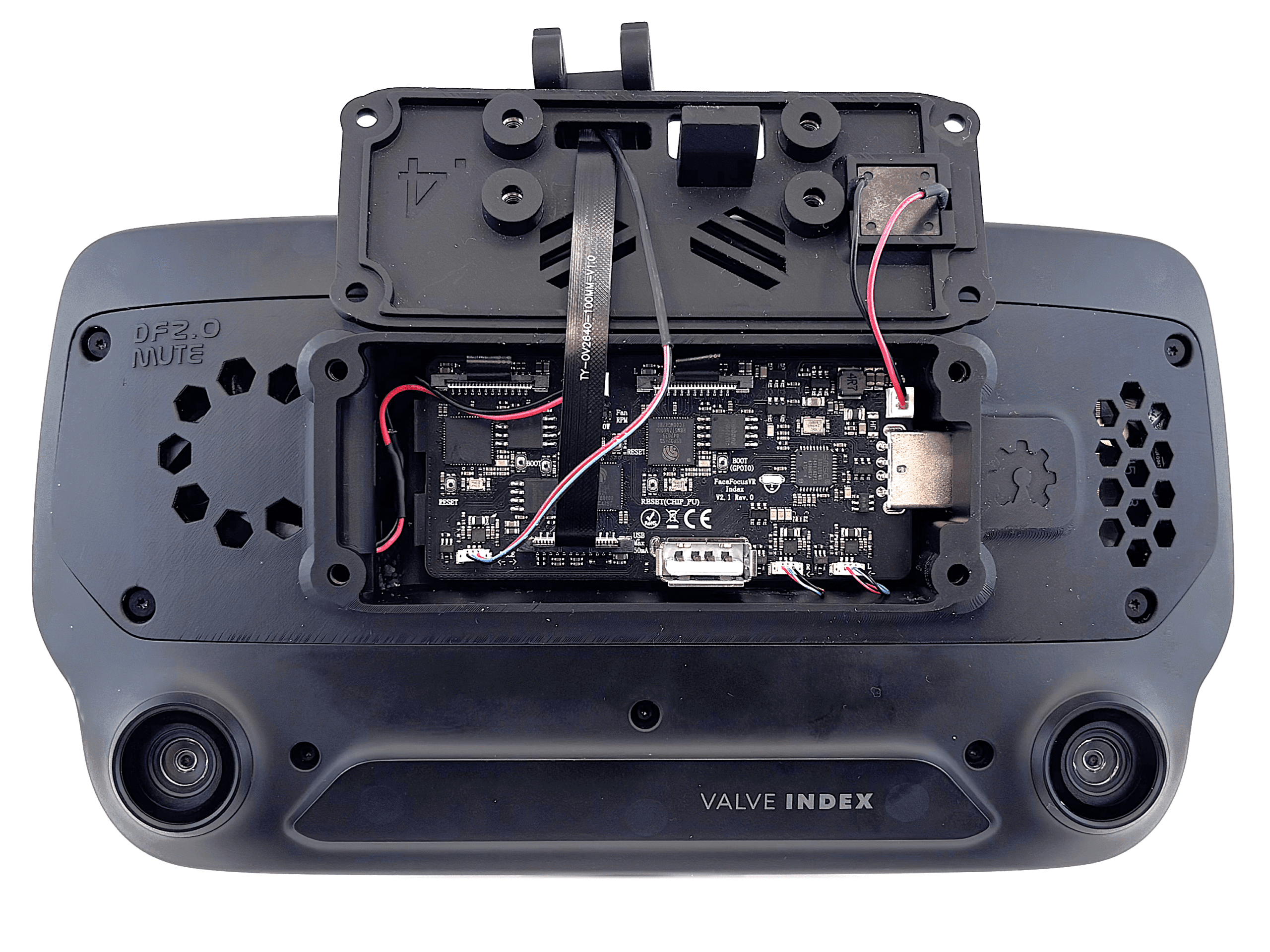

    Face tracking module fed through the front cover and connected to the board

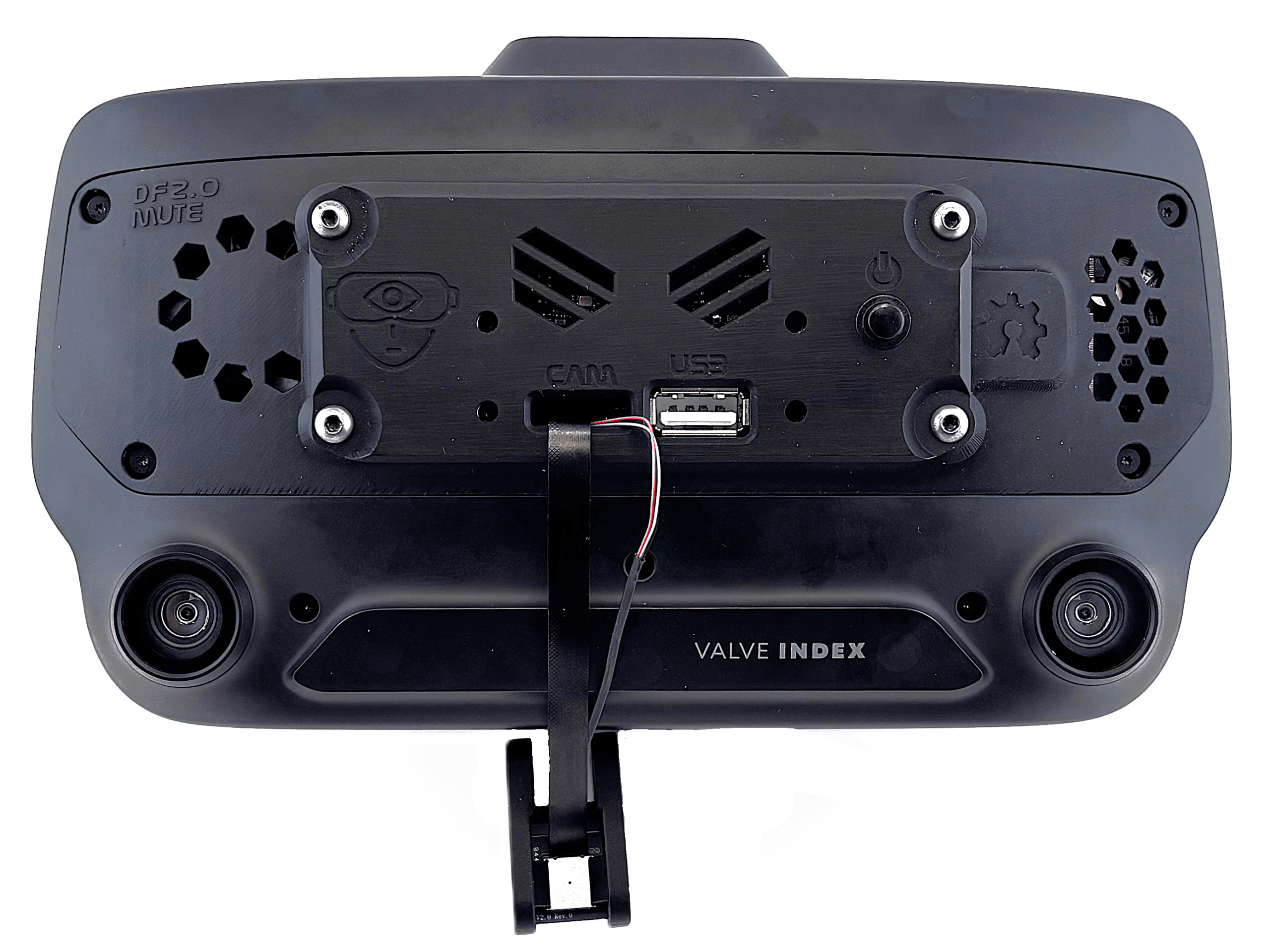

    Front cover secured with screws
    1 / 2
    • Feed the pre-assembled face tracking module through the front cover and connect it to the board as shown in the photo.
    • Connect the power switch to the board.
    • Secure the cover using the supplied screws.

    You are screwing into plastic, so do not overtighten. A snug hand-tight fit is all that is needed. Applying too much force risks stripping the threads permanently.

  19. 16

    Face Tracking Module Arm

    Route the ribbon cable through the holder and mount the arm to complete the installation.

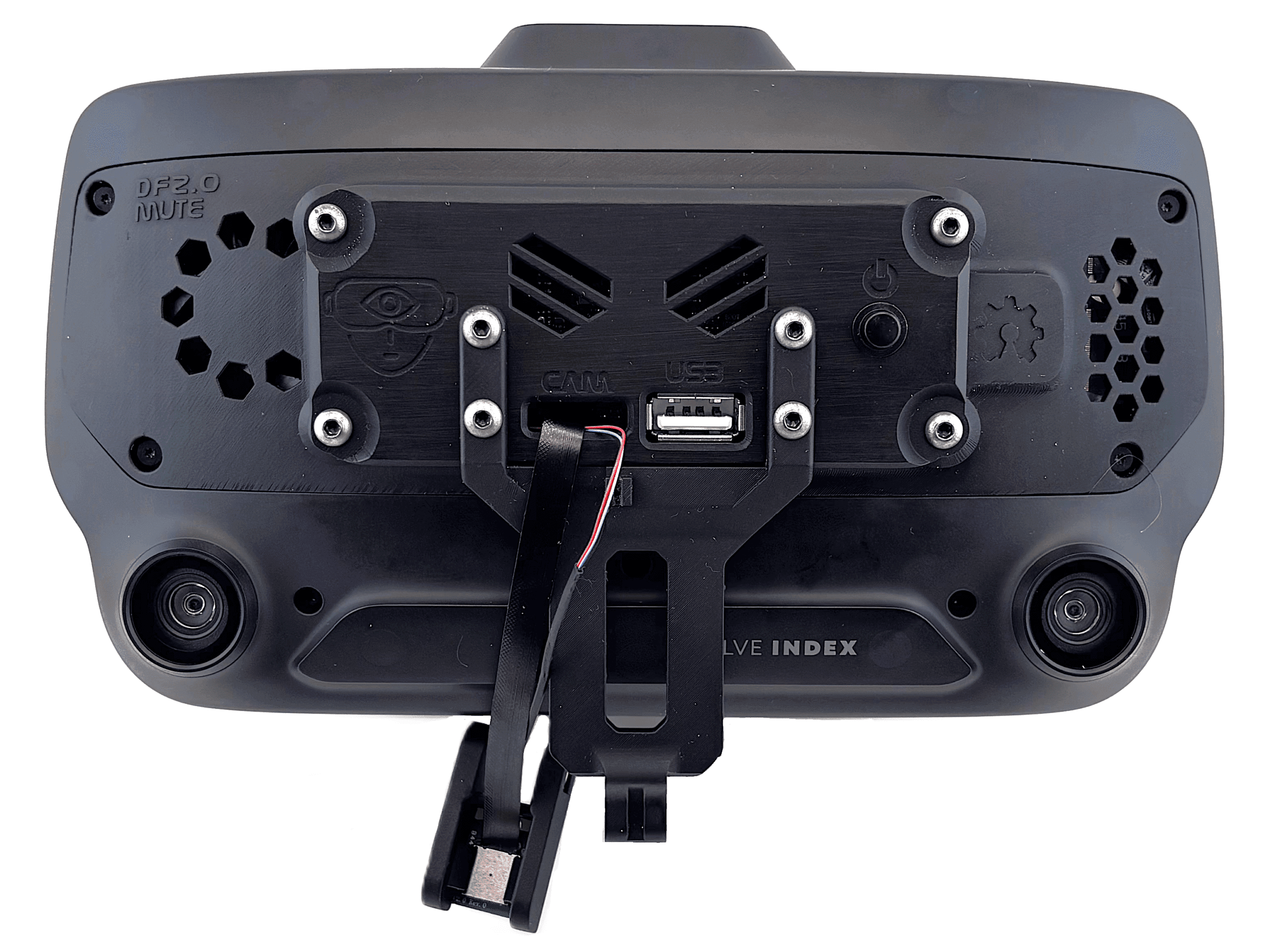

    Ribbon cable fed through the designated holder

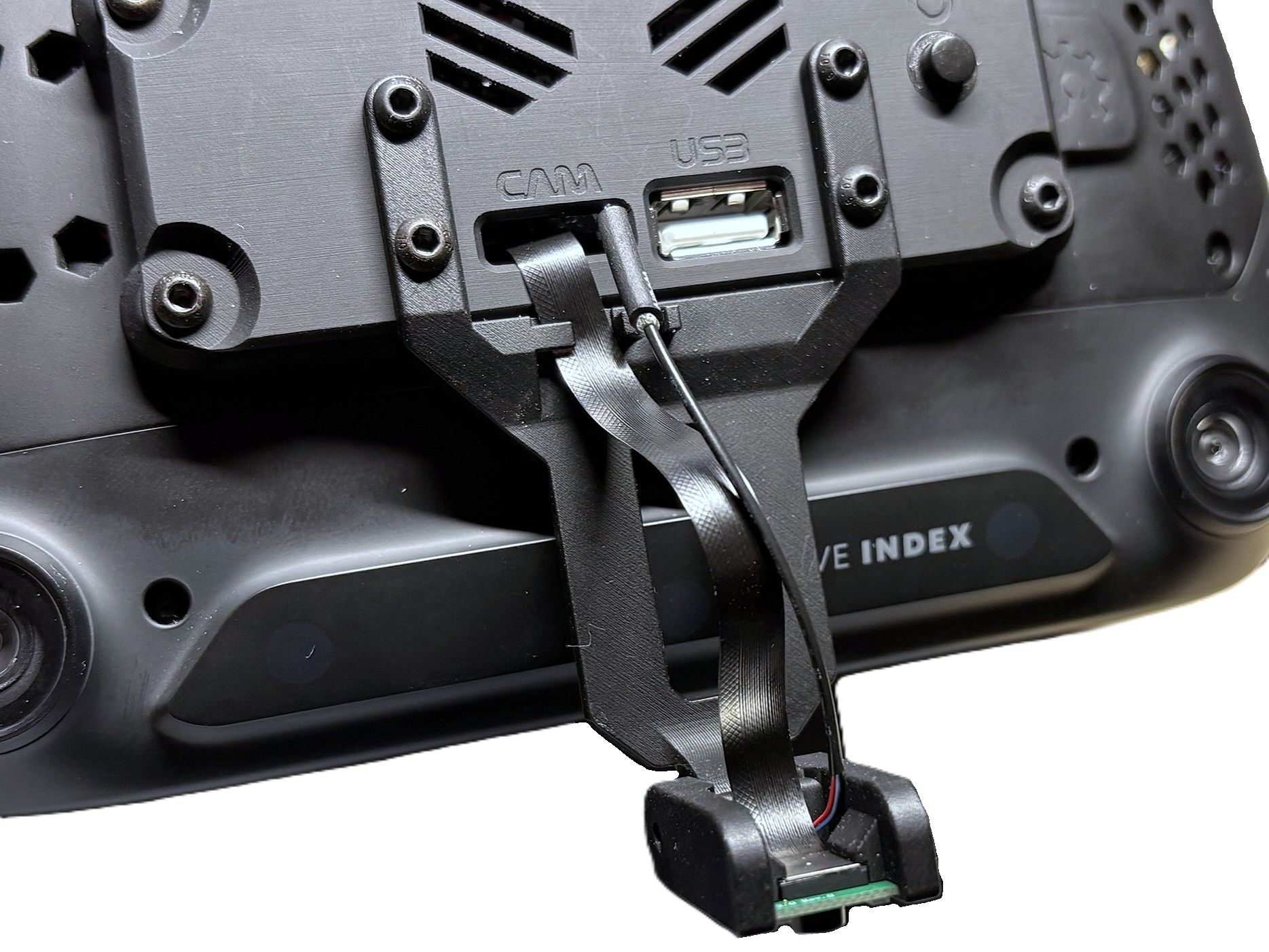

    Face tracking module arm installed at an angle to avoid cable tension

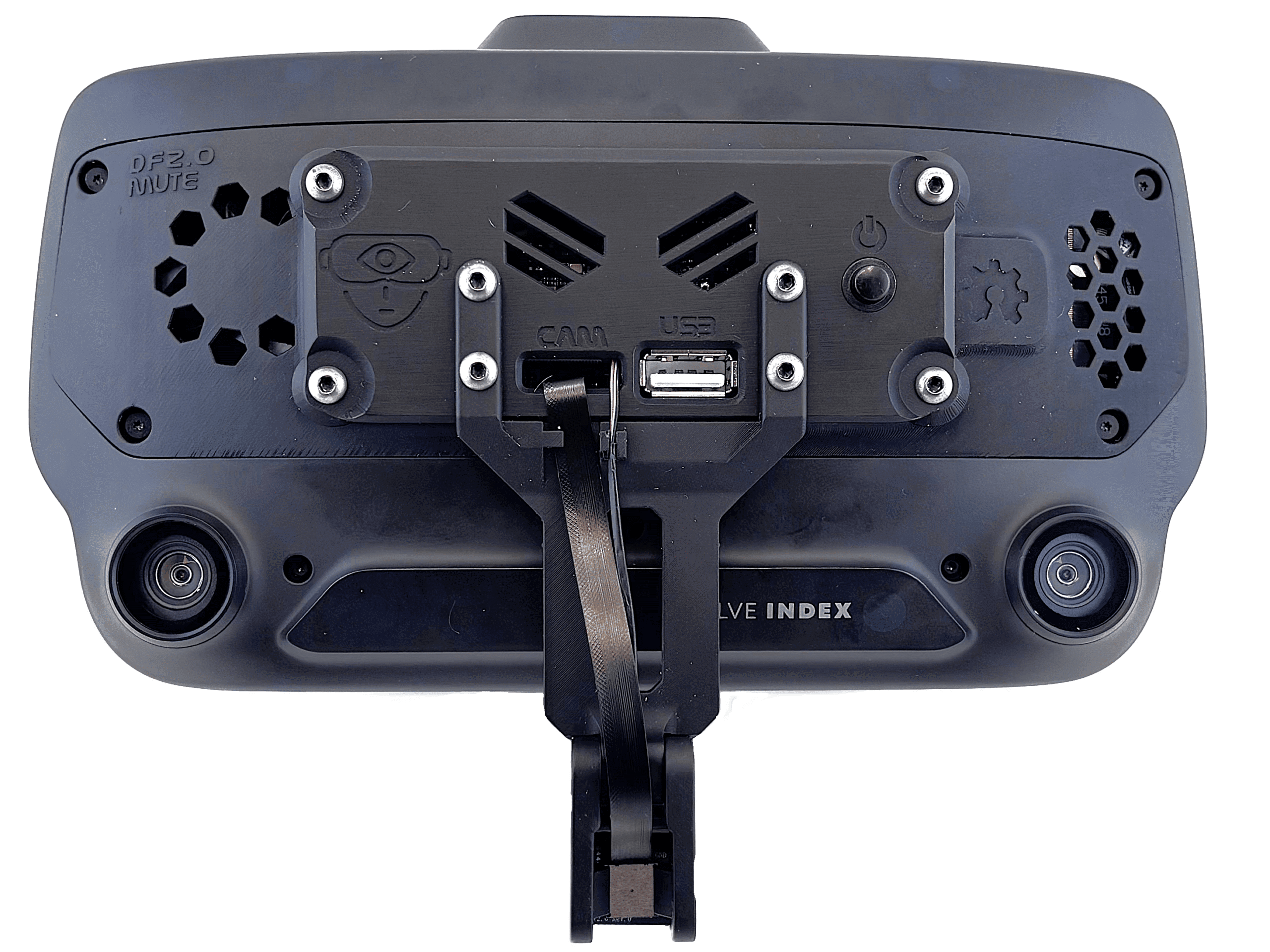

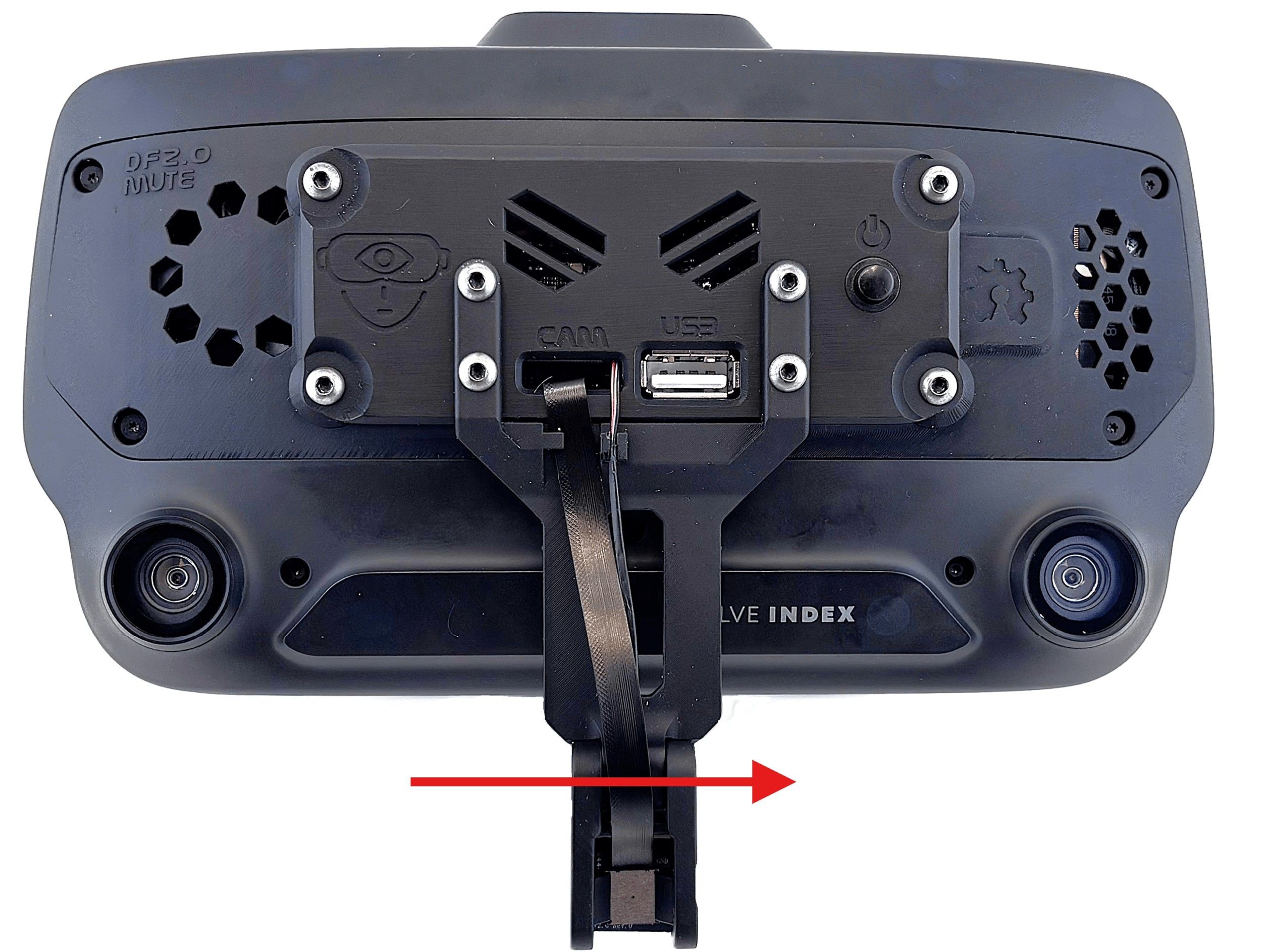

    Module adjusted toward face and long screw tightened
    1 / 3
    • Feed the ribbon cable through the designated holder and install the arm. The easiest way to do this is to temporarily position the face tracking module at an angle so the cables are not under tension.
    • Install the long screw that secures the face tracking module.
    • Adjust the module so it points toward your face, then tighten the screw. The installation is now complete.

    You are screwing into plastic, so do not overtighten. A snug hand-tight fit is all that is needed. Applying too much force risks stripping the threads permanently.

  20. Congratulations, you are done!

    Your hardware installation is complete. Follow the steps below to verify everything is working.

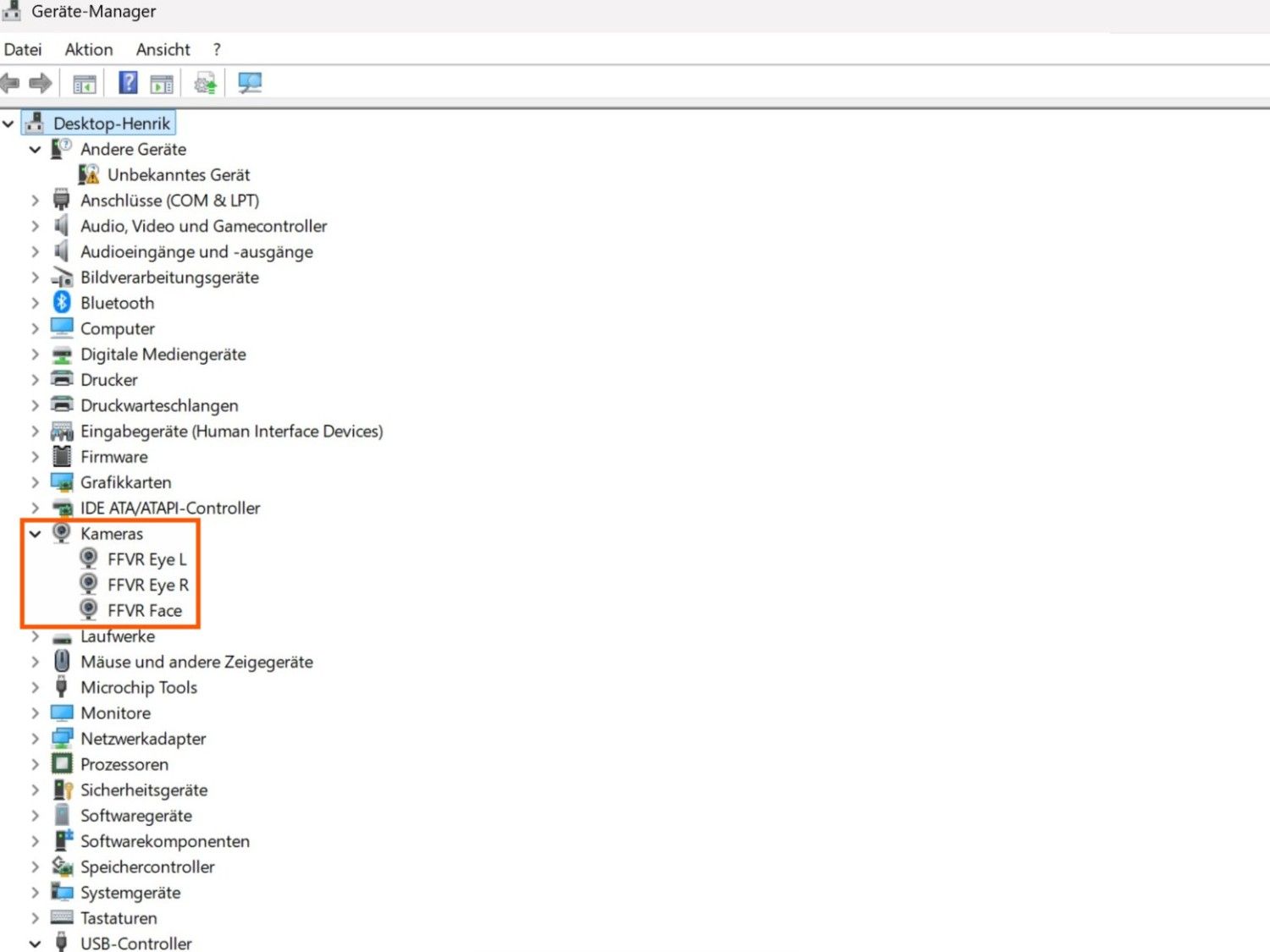

    Device Manager showing three camera devices confirming successful installation

    To test if everything is working, power on your Index and switch on your new hardware using the button on the front. A blue LED should light up on the board, visible through the top ventilation slots above the power button.

    Next, open the Device Manager. If you see three camera devices listed, as shown in the image on the right, the mainboard is working correctly. If you only see two, simply power-cycle the system once. This sometimes happens because Windows or the USB connection can be a bit wonky.

    Now open the Windows Camera app and try switching between all three video streams. If this works, congratulations, your hardware is installed and functioning correctly.

    Now move on to the software part.

Basics

This project focuses on hardware. Your computer sees the three cameras (Eye L, Eye R, Face) as standard UVC webcam streams at 240x240@60 FPS or 320x320@45 FPS on newer revisions. Any software that can process a webcam stream will work.

Popular tracking software includes ETVR, Ryan's Eye Tracking, and Project Babble. All of them are compatible with this hardware. I recommend Baballonia by Project Babble for the best results and ease of use, but feel free to try other options.

This guide covers the Baballonia setup.

  1. VRCFaceTracking

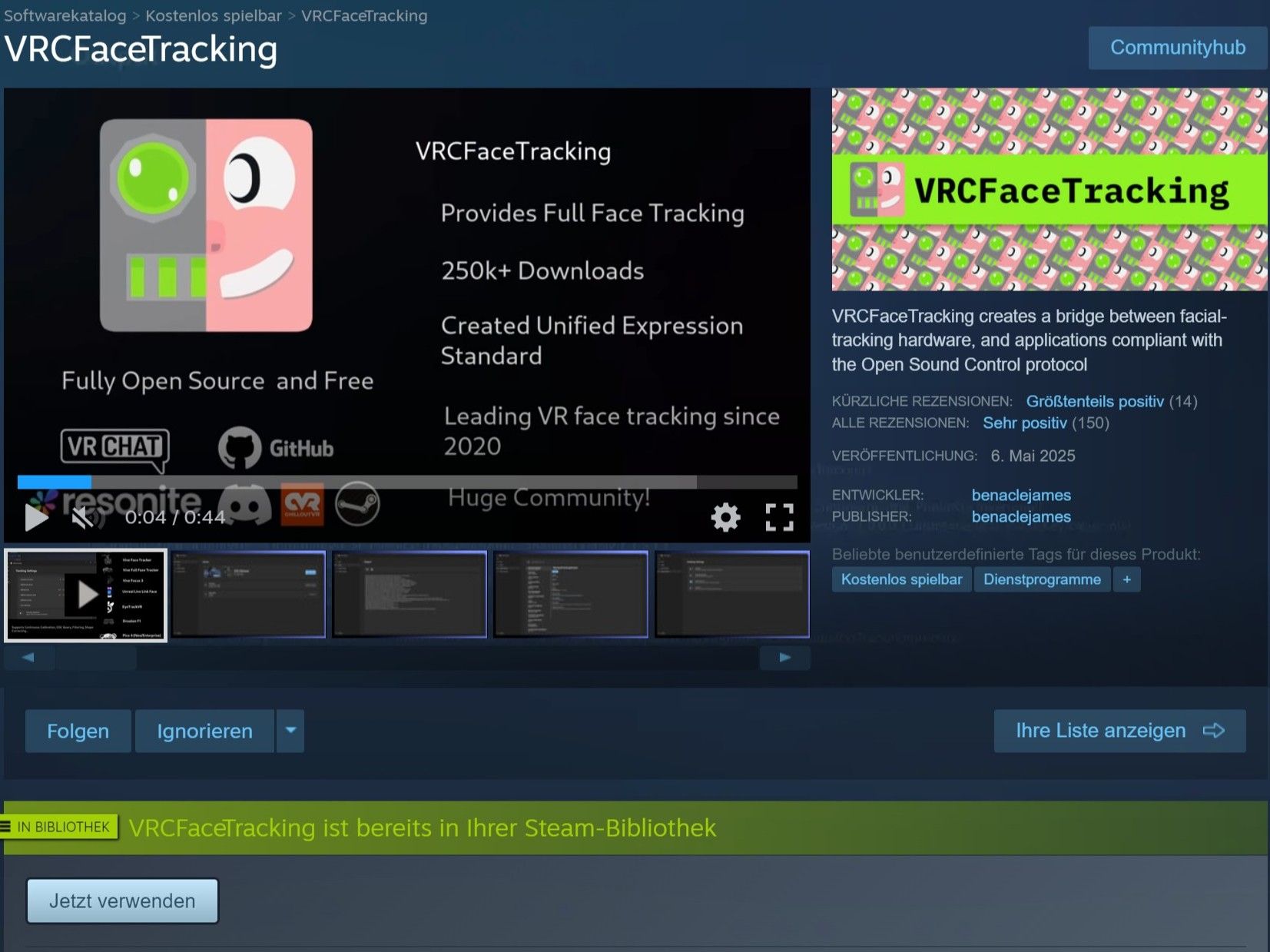

    VRCFaceTracking Module Registry

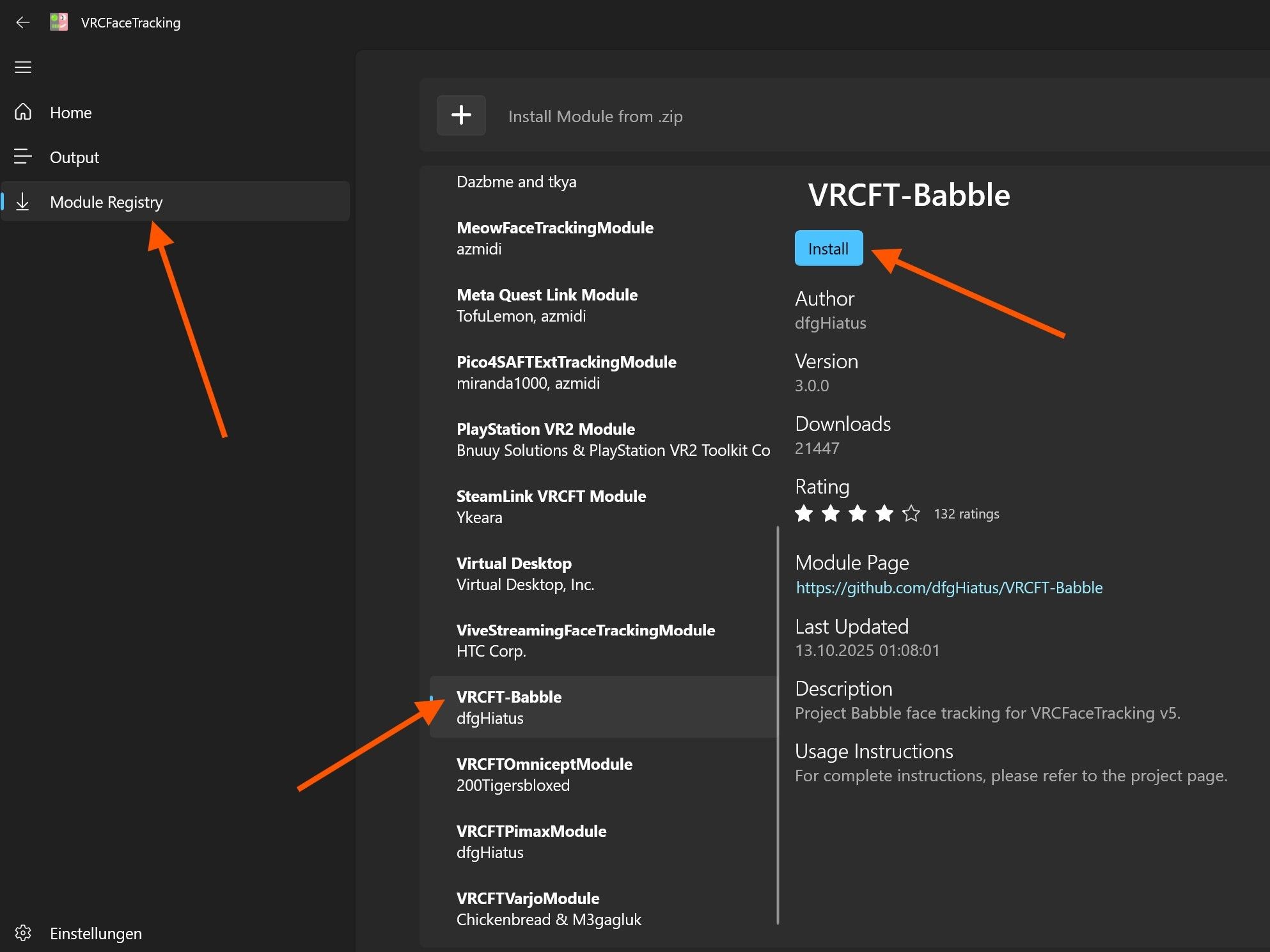

    VRCFT-Babble module search result

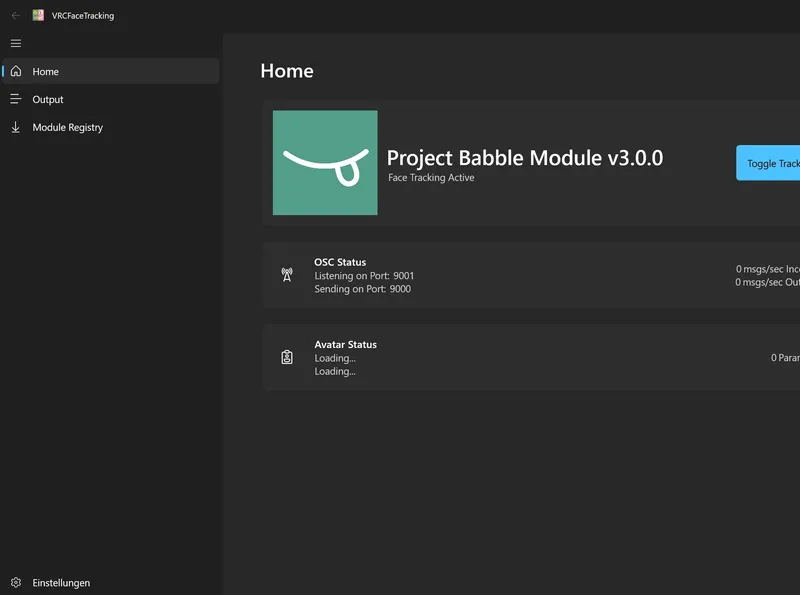

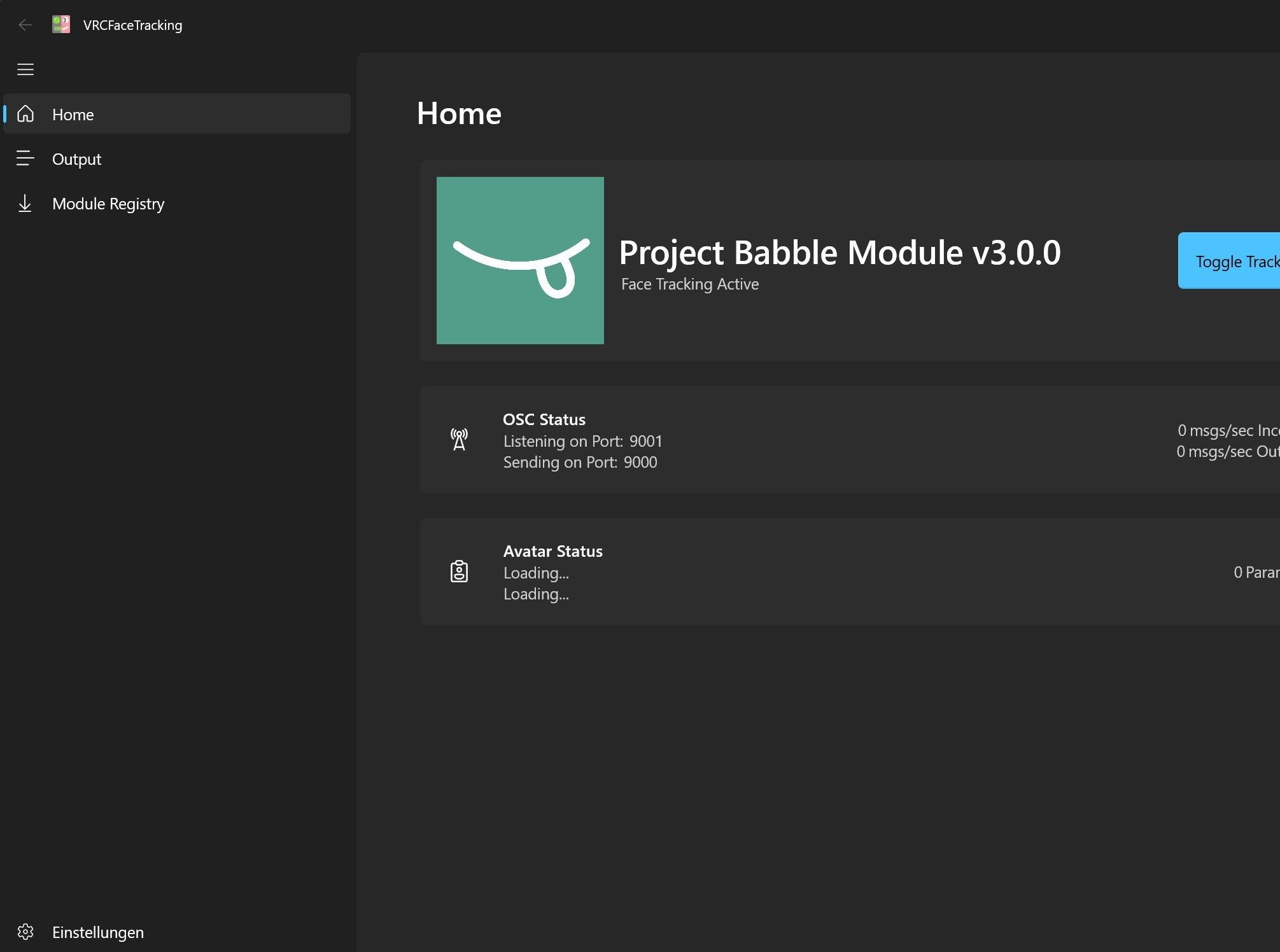

    Babble module installed on VRCFT home page
    1 / 3

    VRCFT acts as a translator for VRChat. It converts face-tracking values and eye-tracking data it gets from Baballonia into parameters that VRChat understands, allowing your avatar's expressions and movements to respond accordingly.

    If you want to use face tracking (and eye tracking) in VRChat, you will need VRCFT, regardless of whether you are using my hardware or any other face-tracking solution.

    • Download VRCFT on Steam: store.steampowered.com/app/3329480/VRCFaceTracking
    • After launching it, navigate to "Module Registry" and search for the module "VRCFT-Babble", then install it.
    • Restart VRCFT.
    • The Babble module should now appear on the home page of the VRCFT app, as shown in the last image. No further steps are required in VRCFT.

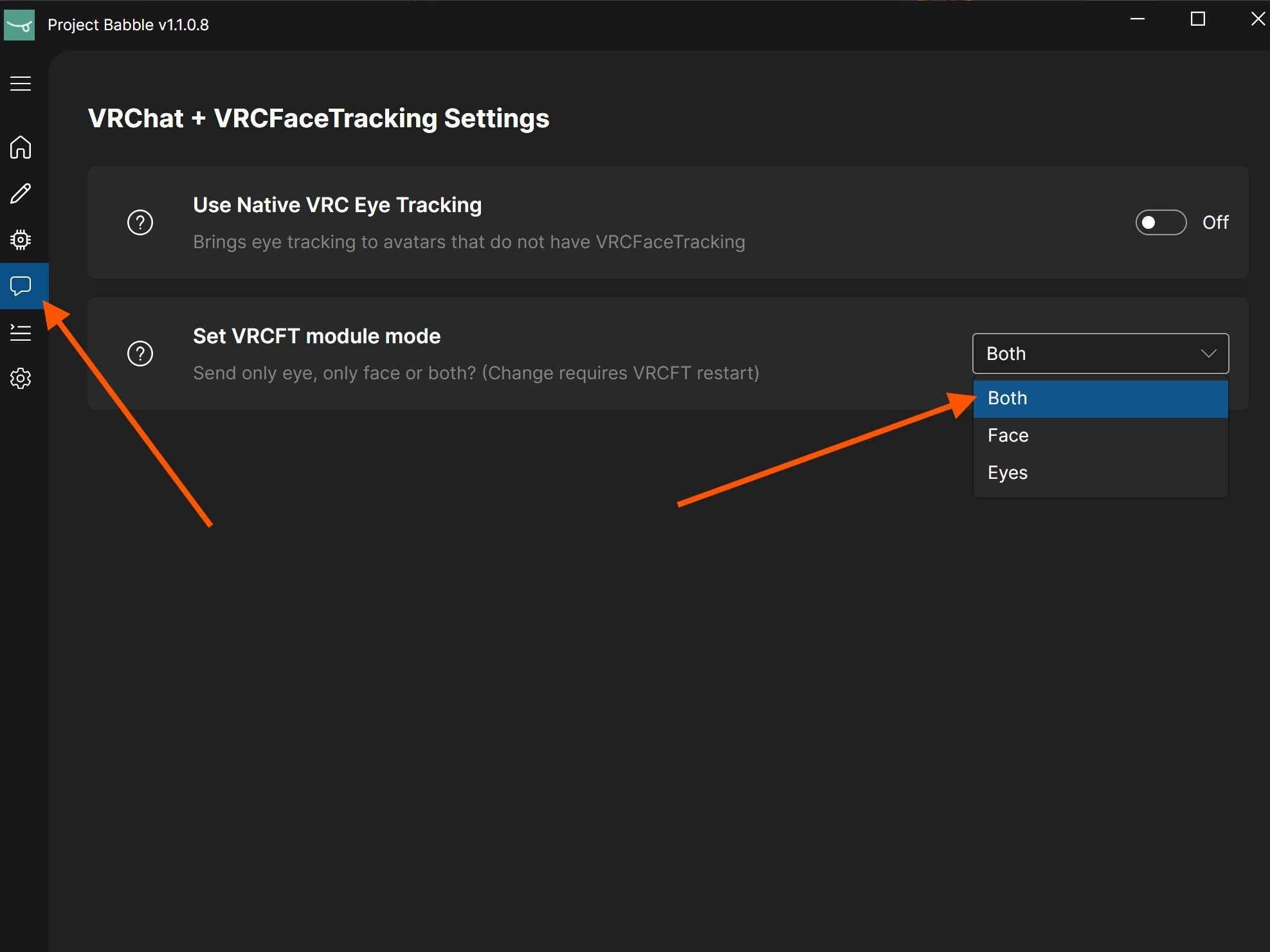

  2. Baballonia

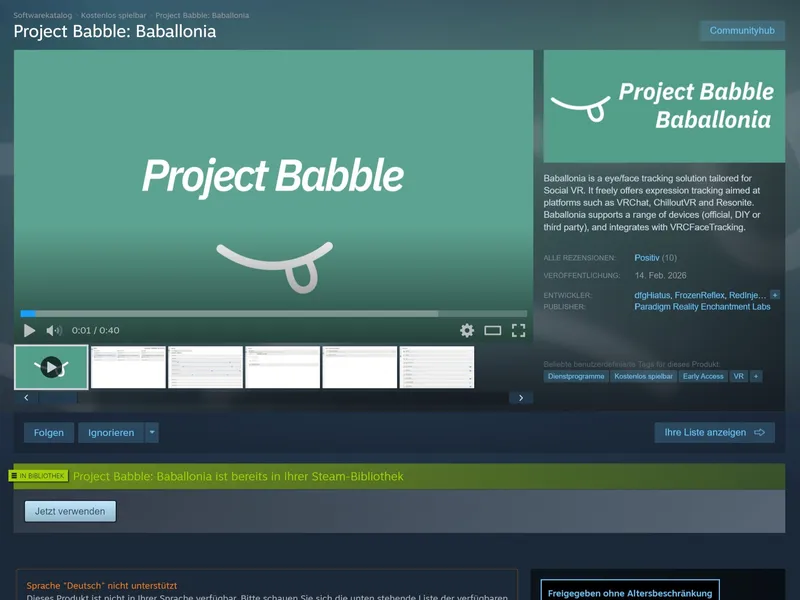

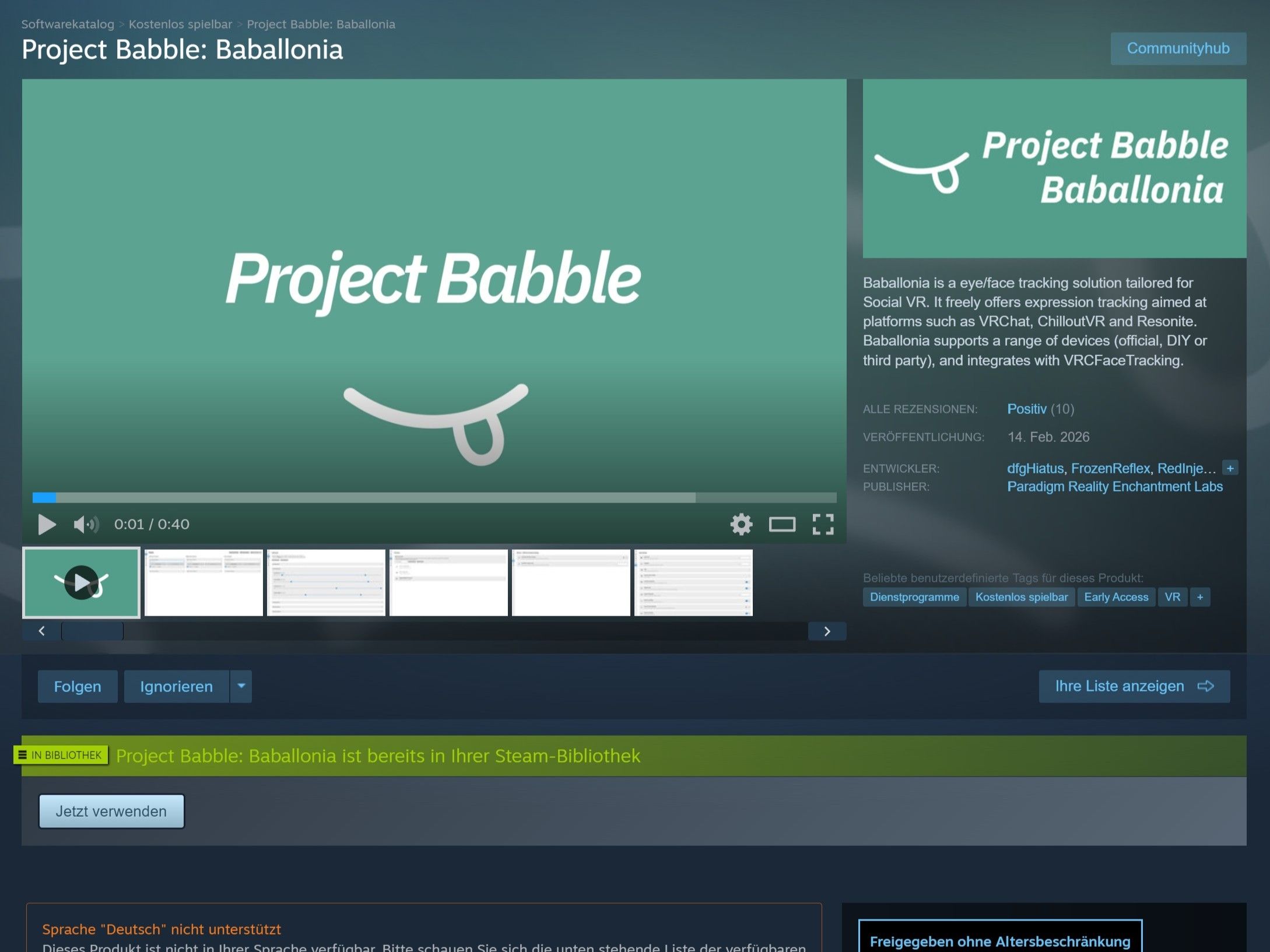

    Baballonia main interface

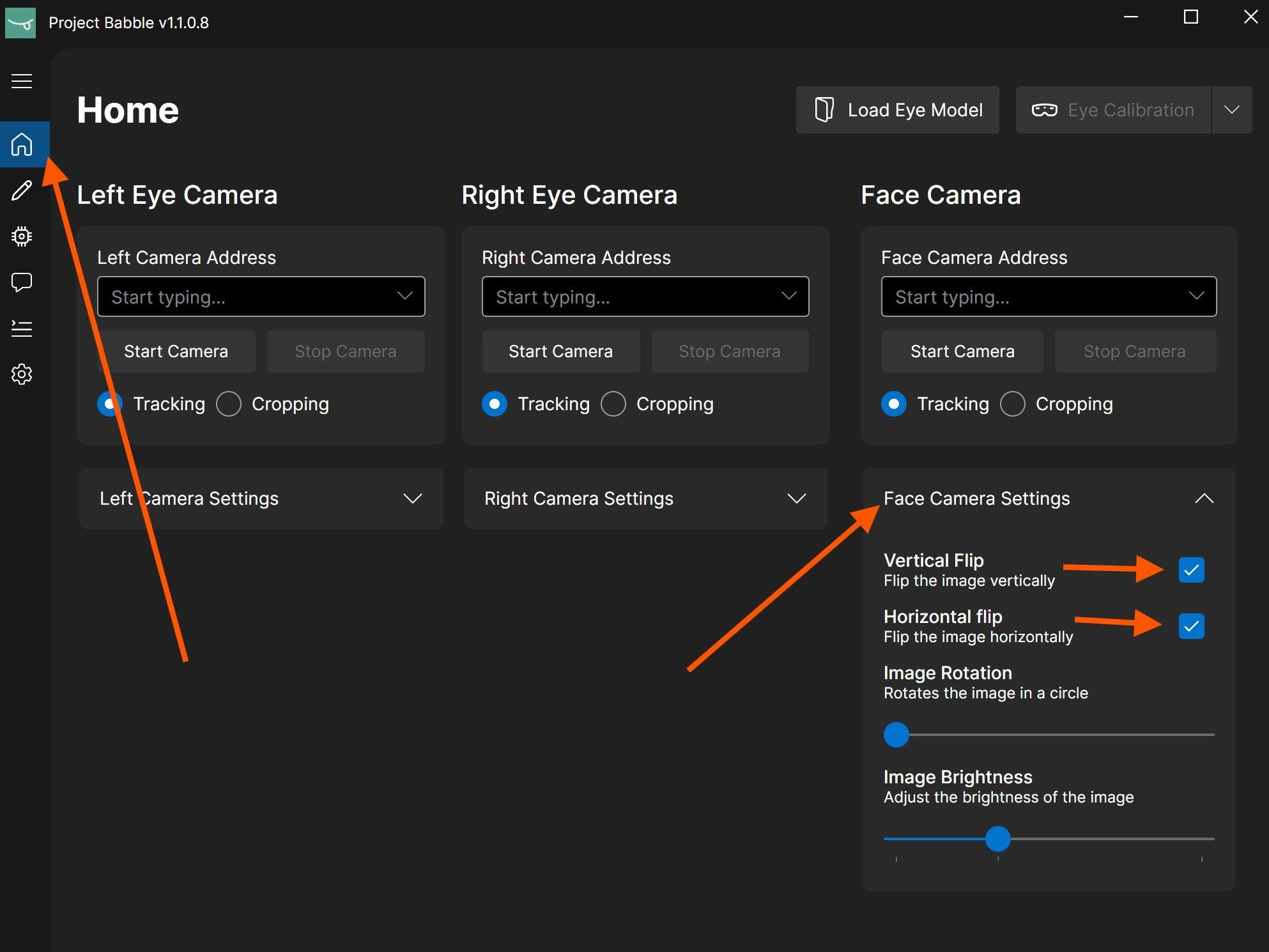

    Face Camera Settings with flip options enabled

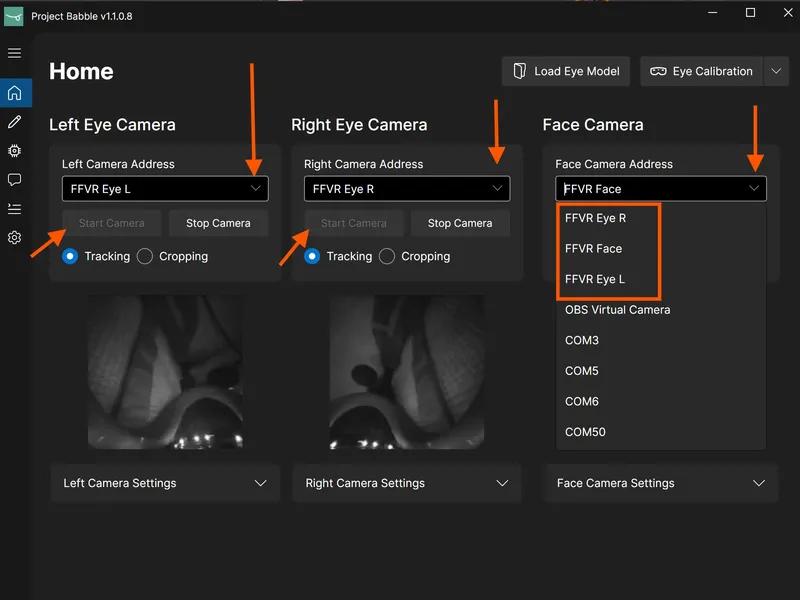

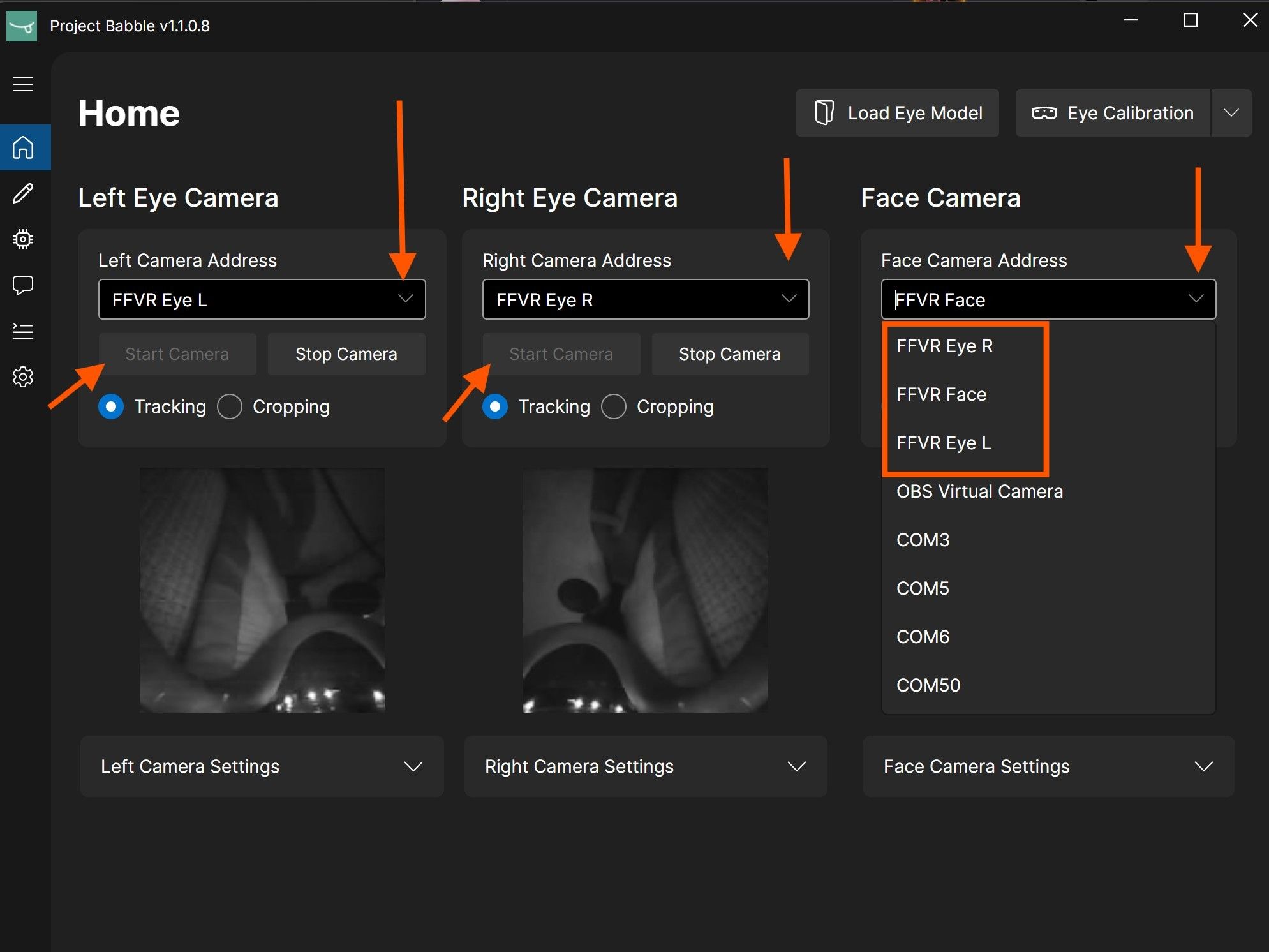

    Camera selection dropdown menu

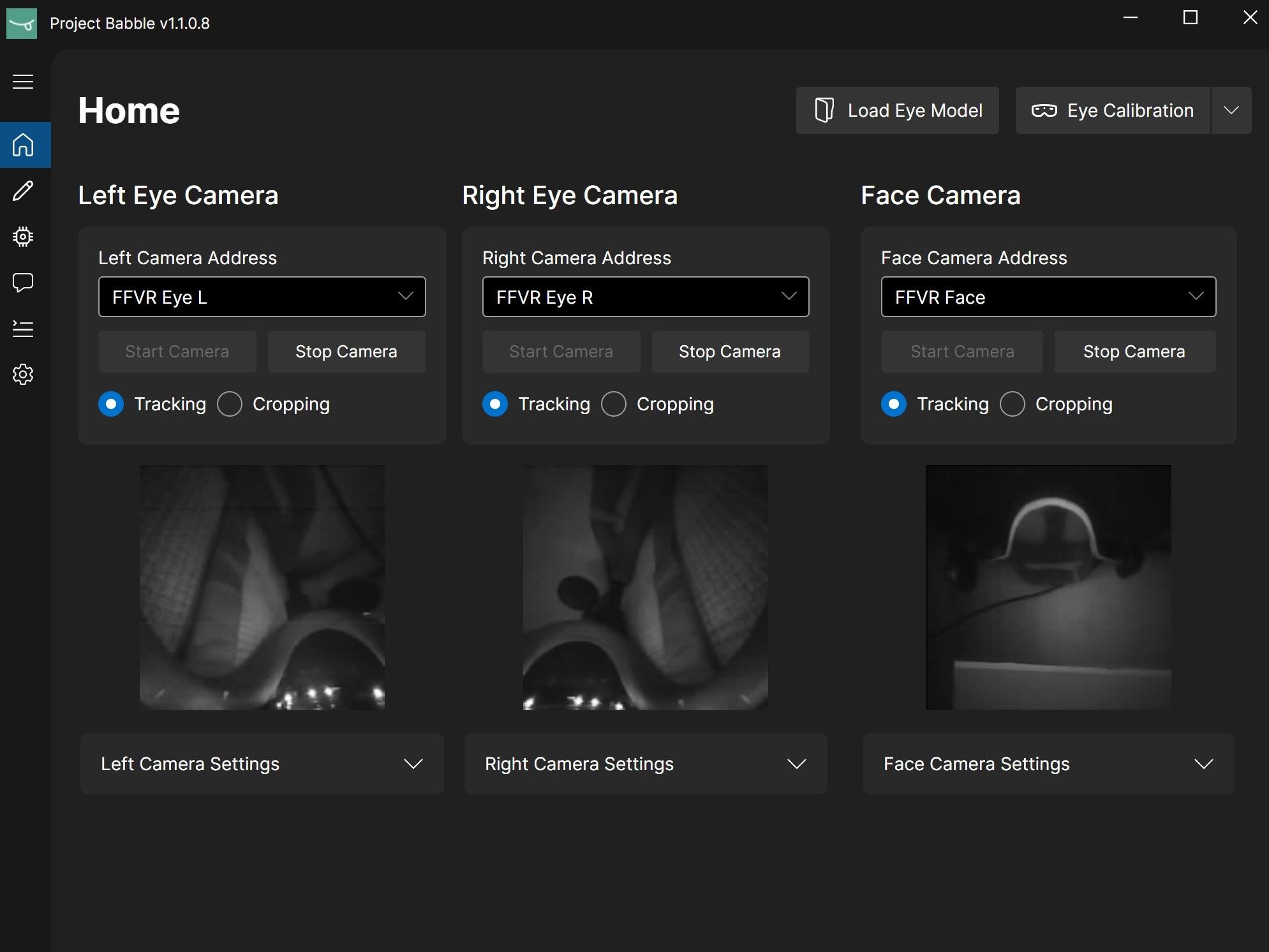

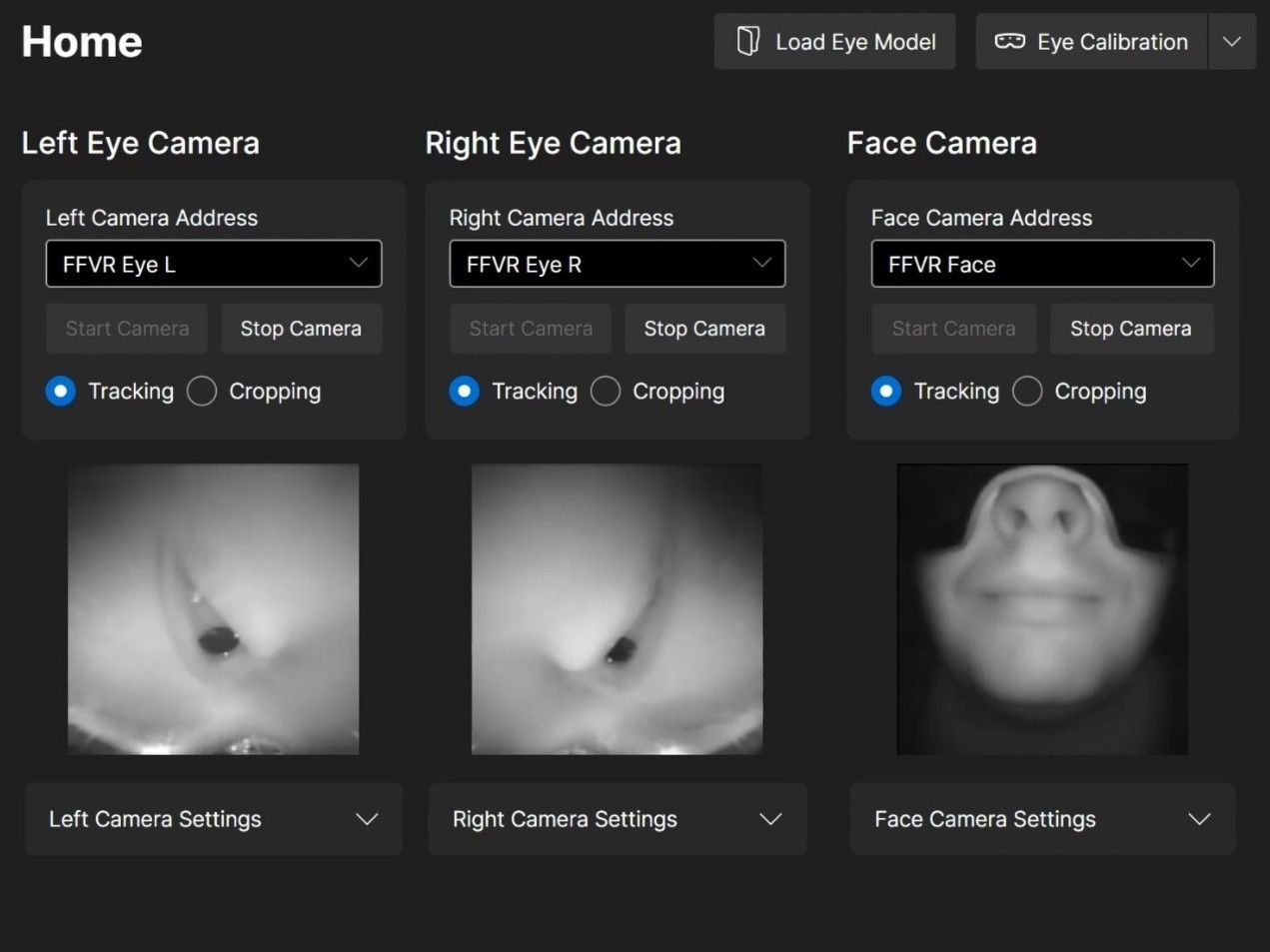

    All cameras started and tracking active
    1 / 4

    Baballonia analyzes the camera streams from your eyes and face to determine your gaze direction, eye openness, and facial expressions, then forwards this data to VRCFT.

    • Download Baballonia on Steam: store.steampowered.com/app/4091970/Project_Babble_Baballonia
    • Open Baballonia and skip the setup wizard.
    • Open the "Face Camera Settings" and enable both the vertical and horizontal flip options. In newer versions, the two mirror options are represented by pictograms. Do not adjust any camera settings for the eyes!
    • Make sure your Index and the hardware are powered on, then select the corresponding camera from the dropdown menu.
    • Once you've selected all the cameras, click "Start Camera" for each one.

  3. Almost done!

    All following steps need to be done while you are in VR. Yes, VRChat works too.

  4. Face Camera Cropping

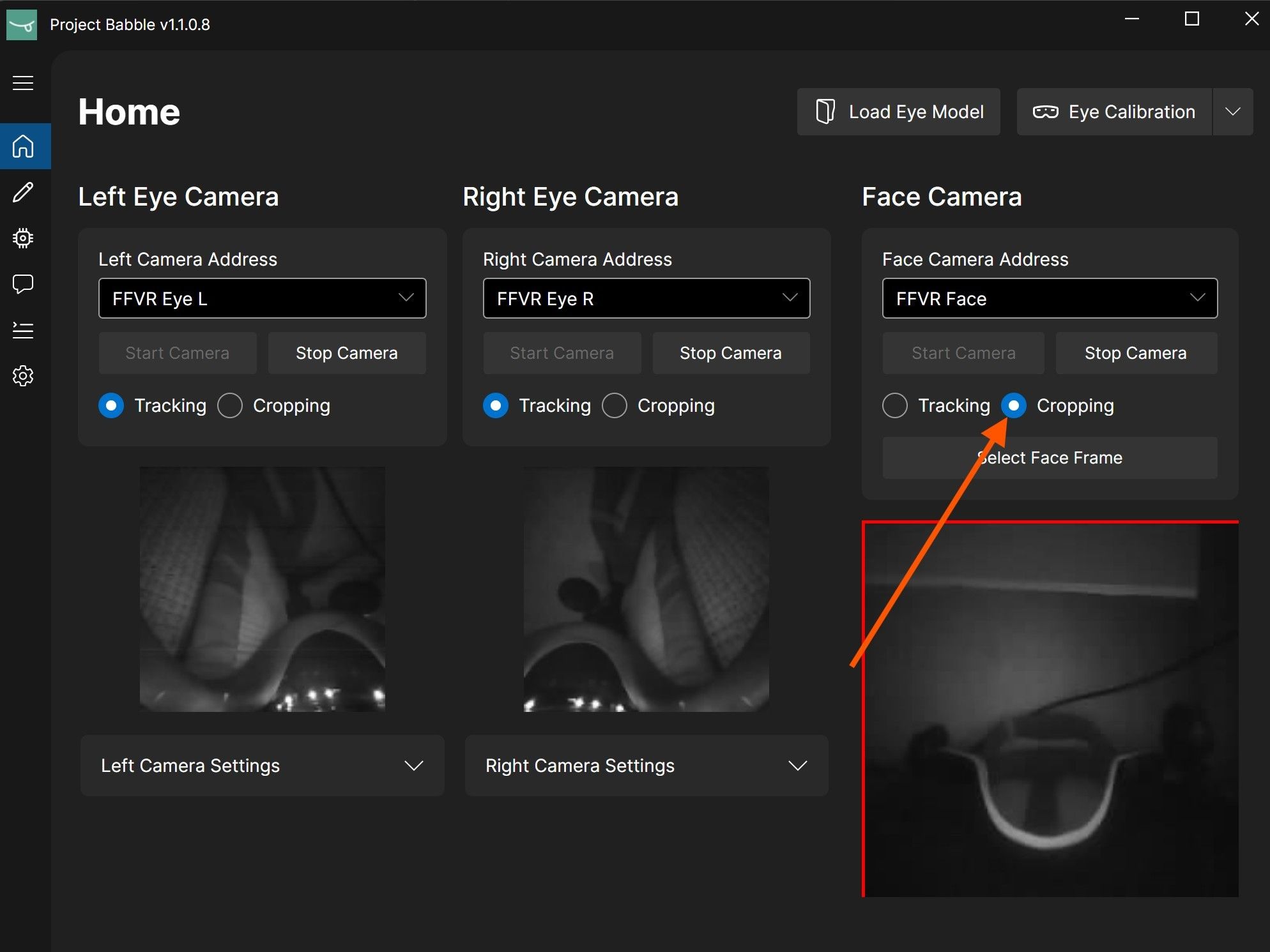

    Face camera cropping mode selected

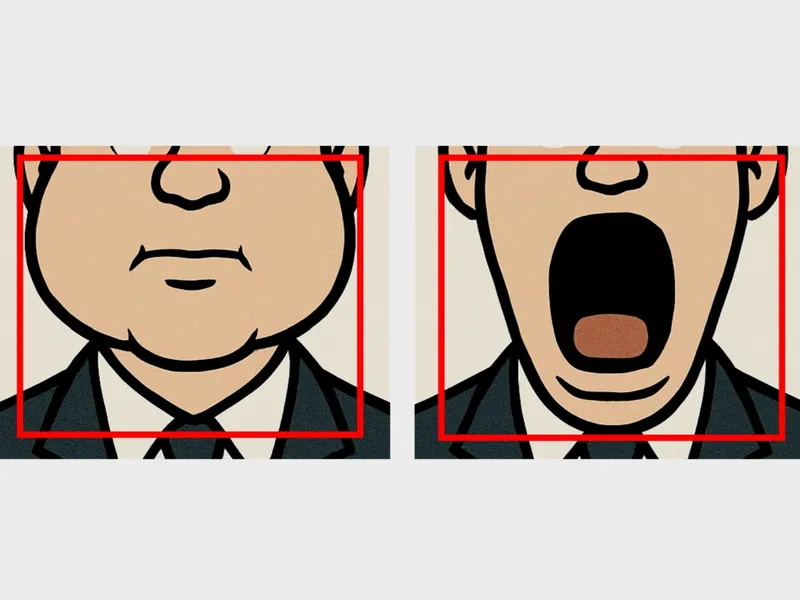

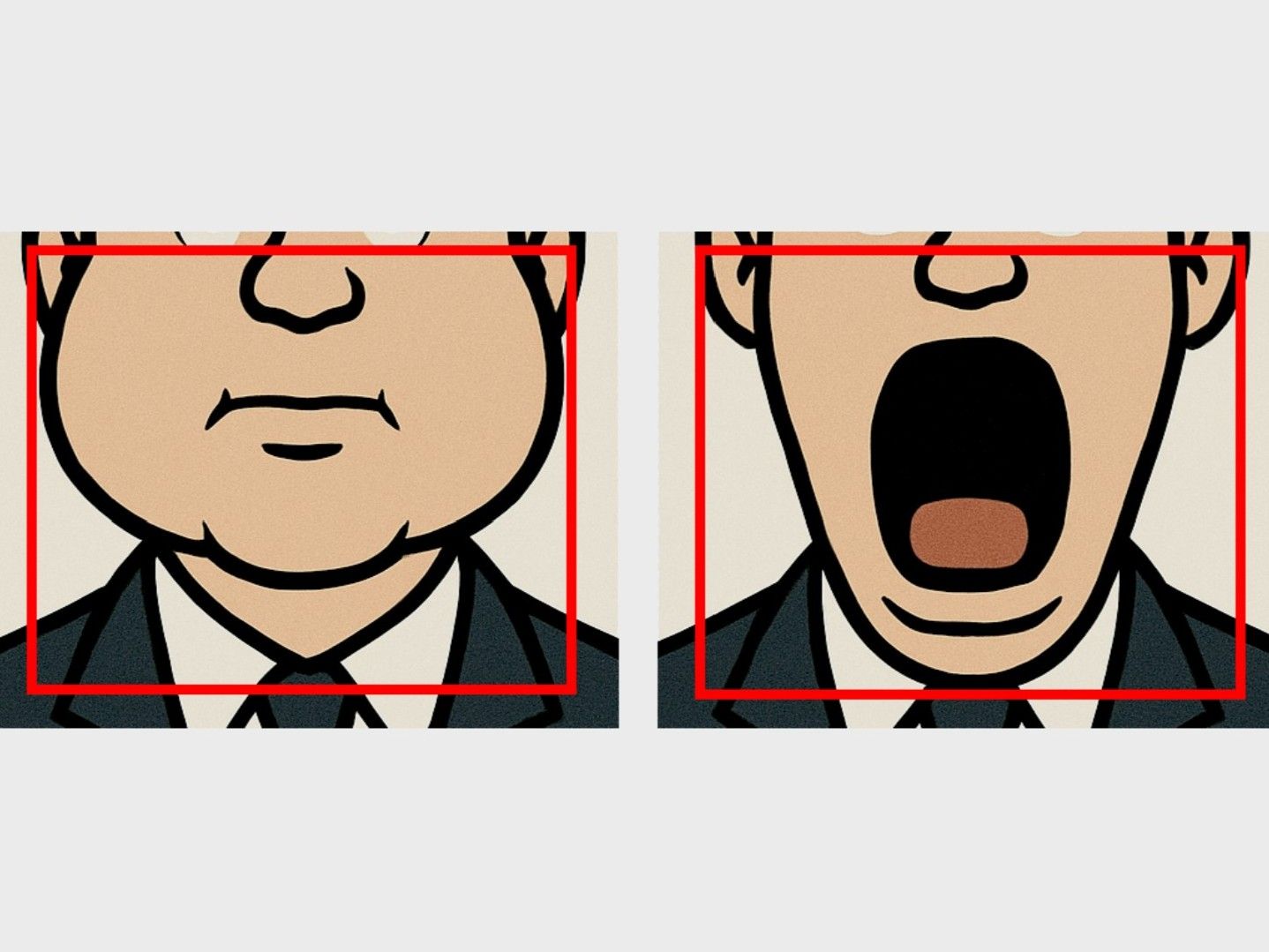

    Setting the crop boundaries with cheeks puffed

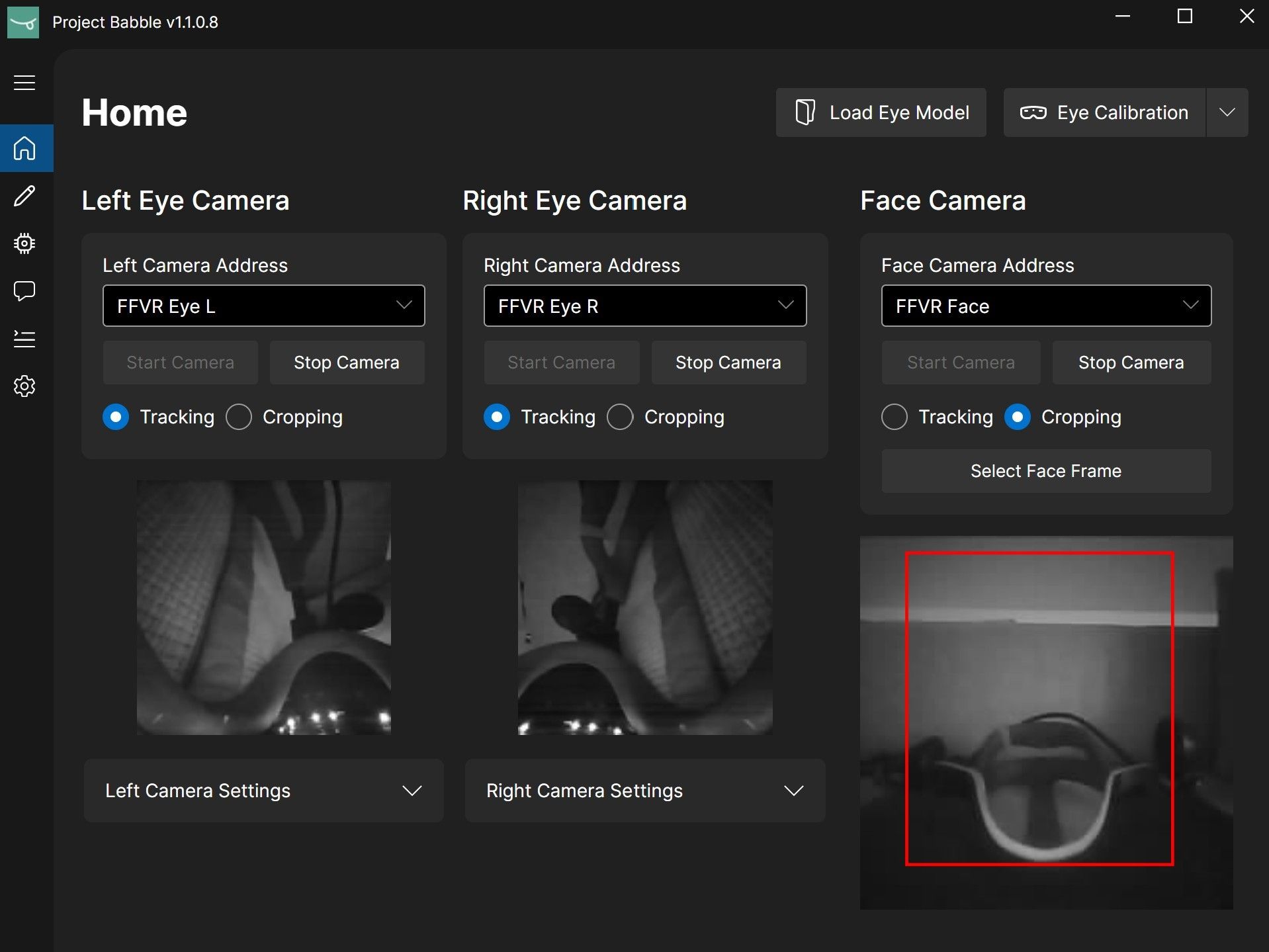

    Adjusting top boundary with nose visible
    Final crop result
    1 / 4

    For the face camera only, you need to set a crop that keeps your face visible in all extreme positions while including as little background as possible. I recommend the following approach:

    • Change the mode for the face camera from "Tracking" to "Cropping."
    • Puff out your cheeks as much as you can. This sets the side boundaries of the crop.
    • Open your mouth as wide as possible. This defines the bottom boundary.
    • Set the top boundary so that your nose remains visible, but minimize any static parts of the Index headset in the frame.
    • Try to keep the crop box as close to a square shape as possible.
    • That's it. Face tracking doesn't need any calibration. It automatically adjusts itself over time. Just use it for a few minutes and it will calibrate on its own.

    It doesn't have to be perfectly precise. From my testing, it's better to include a bit more background rather than accidentally cutting off parts of your face. In the end, your crop will likely look similar to mine shown in the last image.

  5. Eye Tracking Calibration

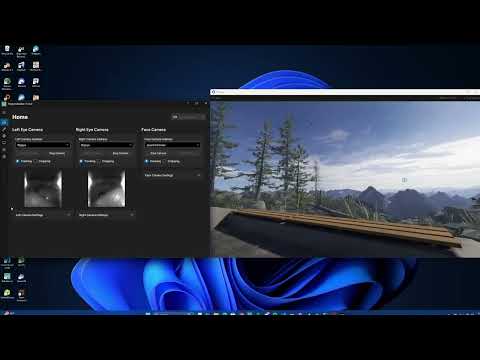

    I highly recommend watching the video before starting the calibration process.

    • Stand in the middle of your playspace facing your forward direction. If you're unsure which way that is, recenter your playspace.
    • After clicking "Eye Calibration," a SteamVR overlay will appear showing a short video of the required head movements.
    • Once the 60-second timer ends, repeat those head movements for about 3 minutes. The exact order doesn't matter. What's important is that your eyes always stay focused on the ball and that you move your head so your eyes reach their extreme positions.
    • When this part is done, you'll receive feedback. Then a message will appear saying: "When the countdown finishes, close your eyes."
    • When the timer reaches 2 seconds, close your eyes and keep them fully closed until you receive another confirmation.
    • While your eyes are closed, blink or press each eye twice and make two "surprised" expressions (everything with eyes closed). Moving the headset during this phase can also help.

    The goal is to teach the software what your eyes look like when closed, since this can vary depending on facial expression or headset position.

  6. You're all set!

    Eye and face tracking is now ready to use. Try this avatar for testing in VRChat.

    The next sections are optional. Check them out if you want to fine-tune your tracking, fix issues with blinking or winking, or exaggerate certain expressions.

  7. Improving Tracking

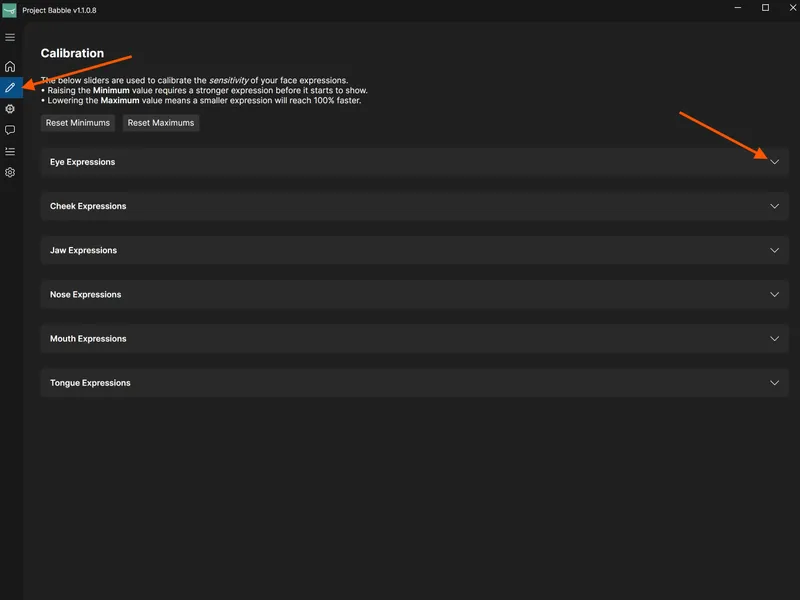

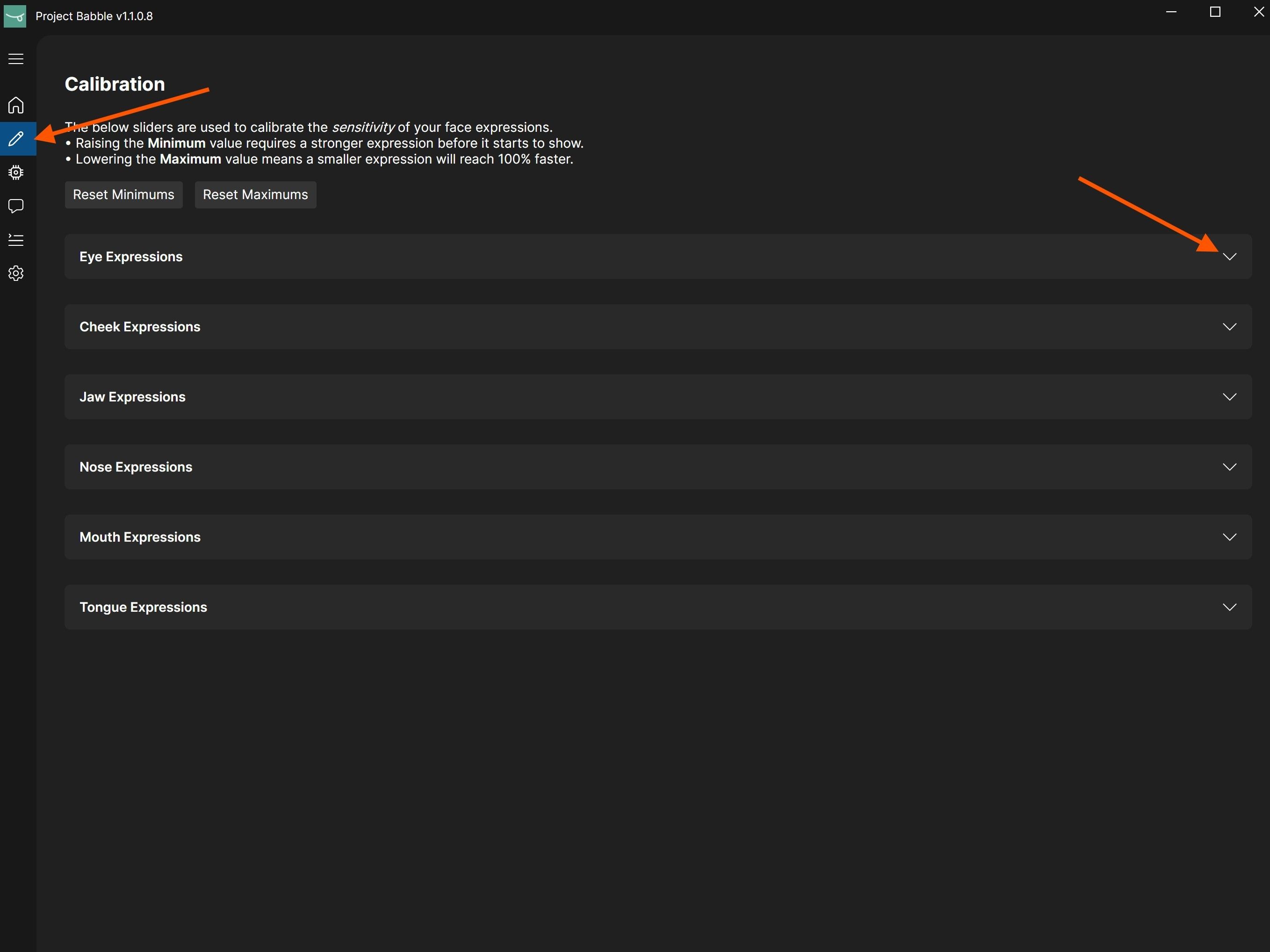

    Baballonia calibration window overview

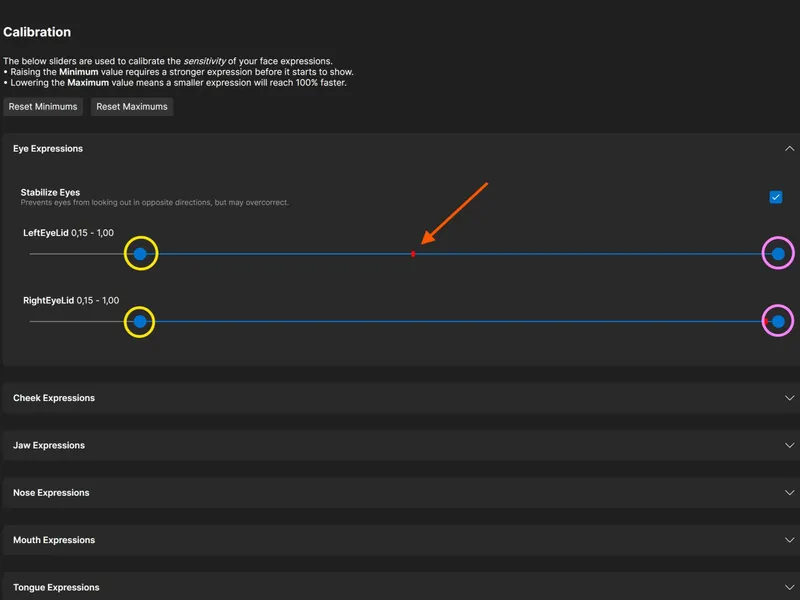

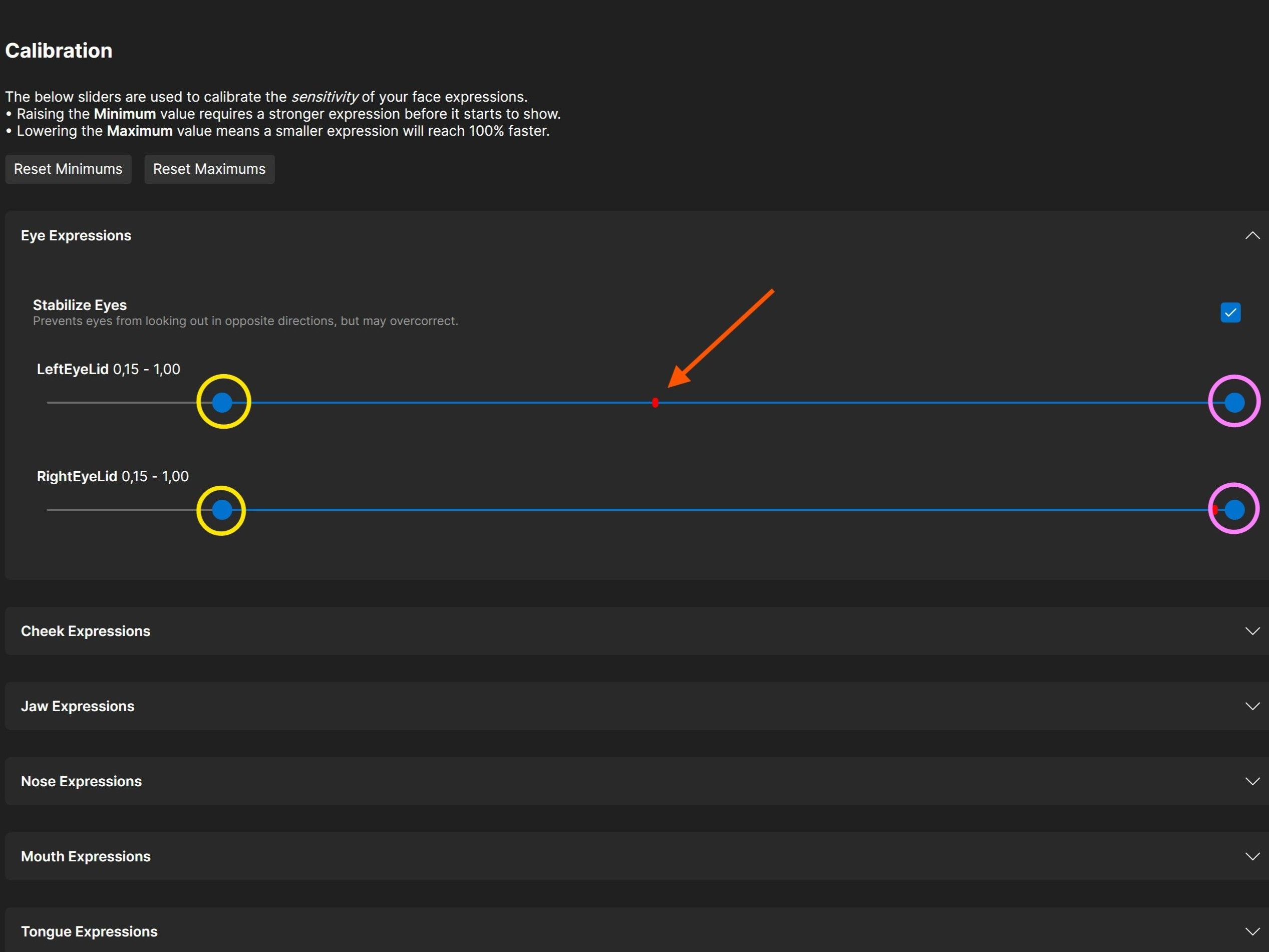

    Parameter sliders with minimum (yellow) and maximum (pink) controls
    1 / 2

    If your avatar isn't blinking correctly, or you want smiles and other expressions to appear more or less intense, you can fine-tune them in the Baballonia app by adjusting the threshold settings.

    • Navigate to the calibration window in the Baballonia app (pencil icon) and open the parameter group that contains the parameters you want to adjust (for example "smile").
    • DO NOT blindly copy my settings, as they are different for everyone. It's better to understand what each slider does to achieve the best results.

    Each parameter, such as LeftEyeLid, RightEyeLid, or any face parameter like smile, has two controls: a minimum (circled in yellow) and a maximum (circled in pink). The red dot shows the current state and moves based on your expression. For example, when your face is relaxed it moves to the left, and when you start smiling it moves to the right.

    The minimum value defines when a shape starts activating. Raise it if the shape triggers too early or stays active while idle. The maximum value controls how far the shape can move. Lowering it exaggerates the motion within the new range.

  8. Improving Tracking - Blinking / Winking

    Eyelid parameter with minimum slider adjusted for blink detection

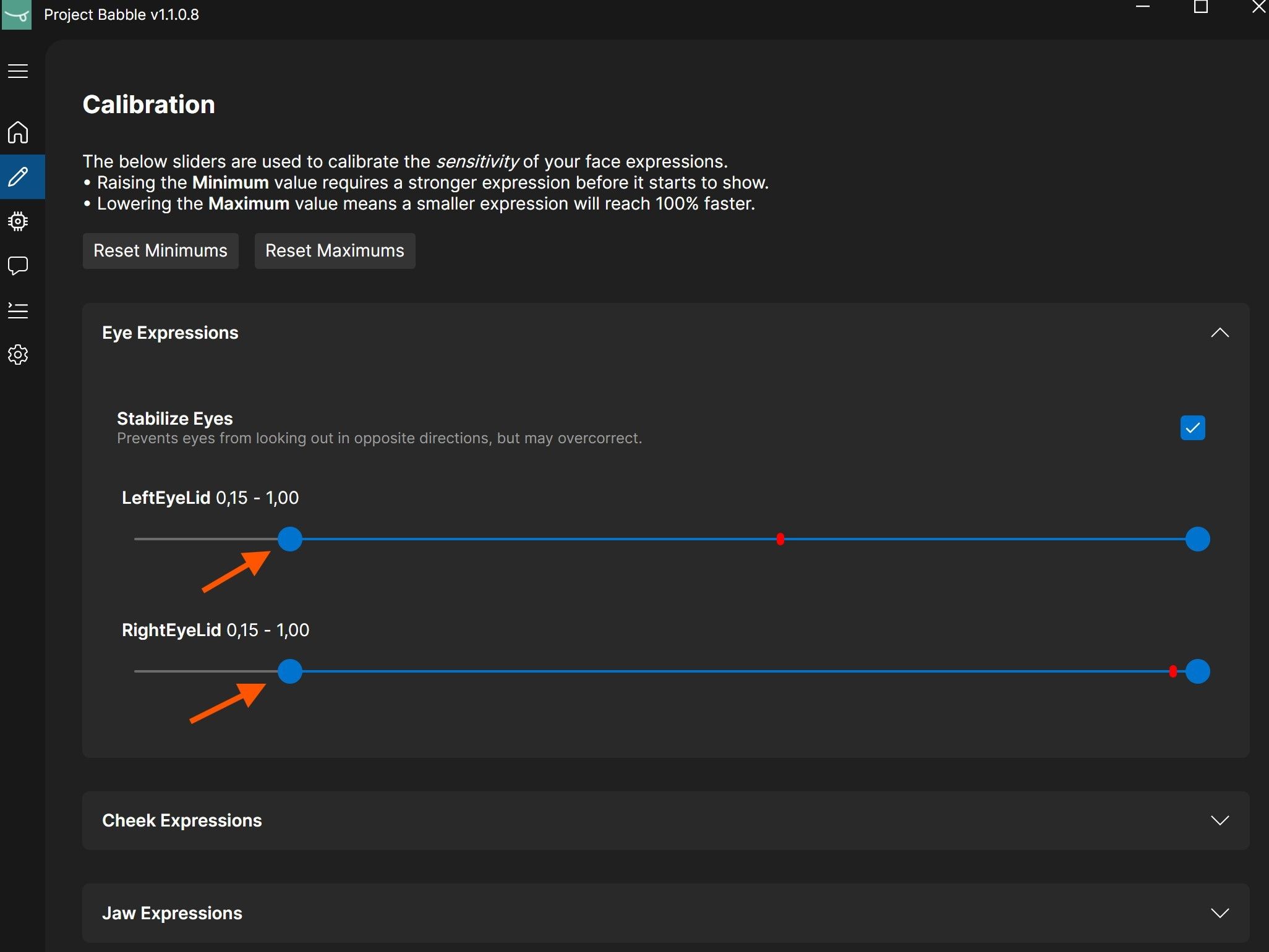

    Eyelid parameter with adjusted blink values
    1 / 2

    If your avatar's blinking or winking doesn't behave as expected, or it doesn't blink at all, you can raise the minimum value of the eyelids. This makes the blink trigger earlier and appear faster.

    • Blink several times and watch how far the red indicator moves to the left.
    • Move the left minimum slider to that position, or slightly to the right of where the red indicator reaches.

    The value will likely be higher than the one shown in the image. Based on the calibration, mine is normally between 0.15 and 0.4.

  9. Improving Tracking - Exaggerated Expression

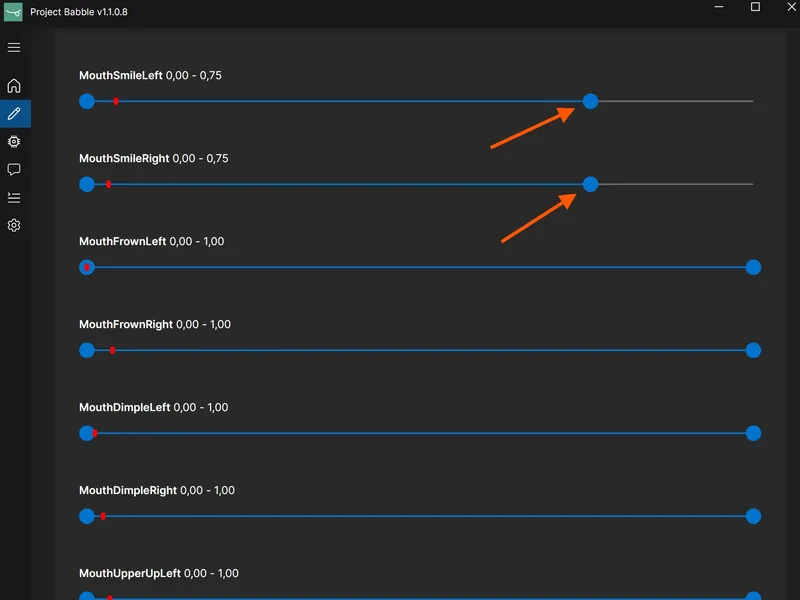

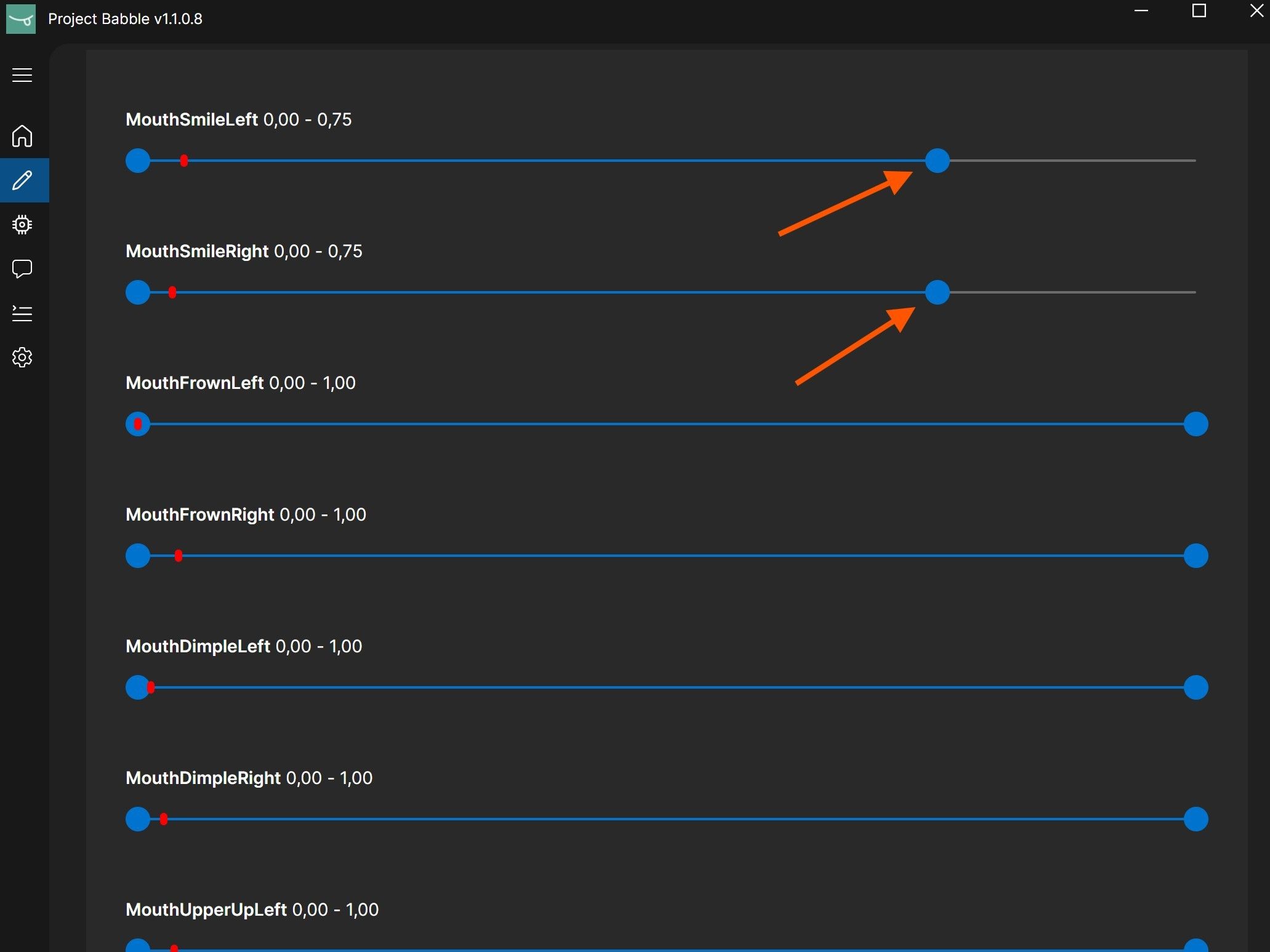

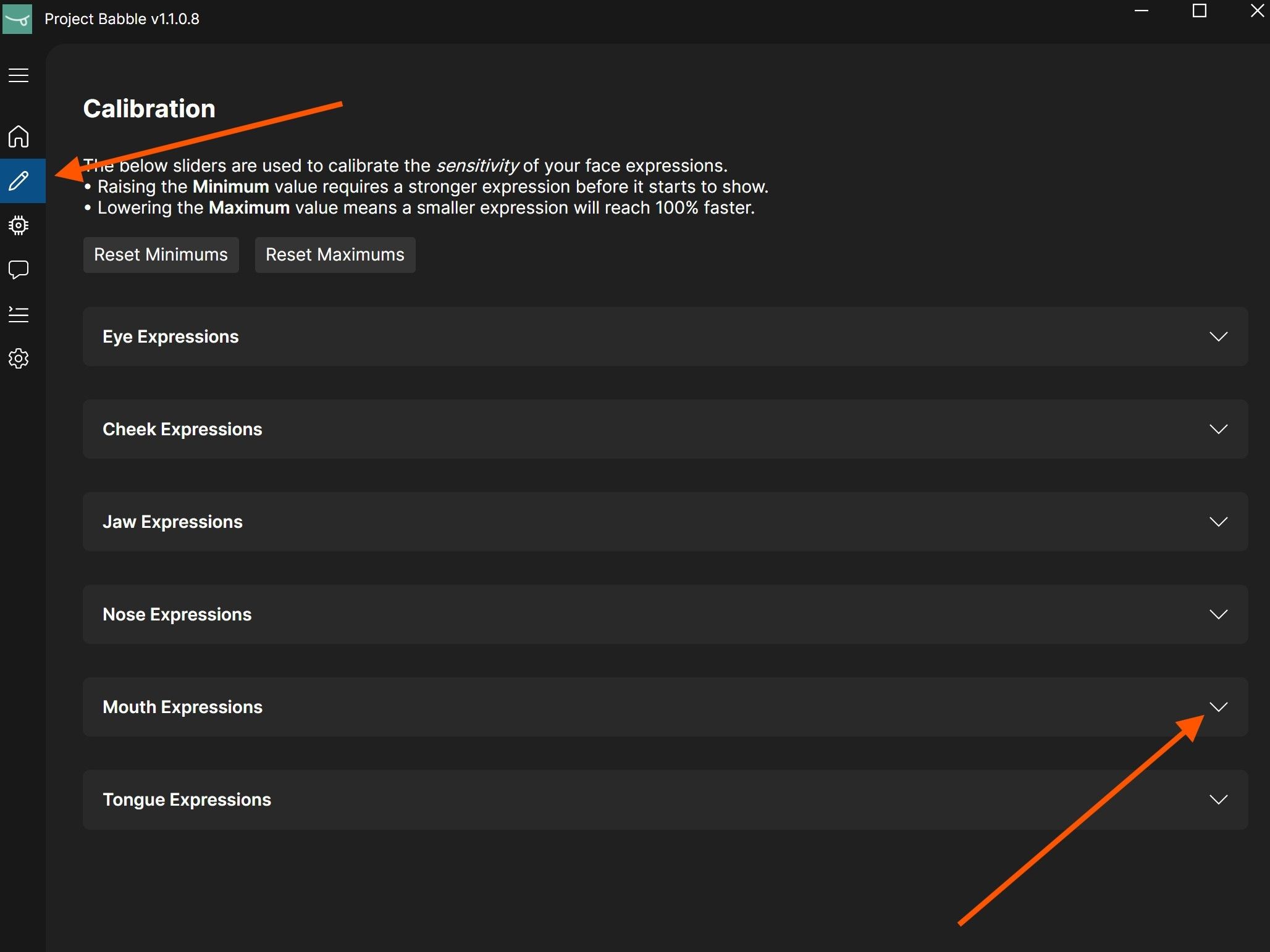

    Smile parameter with lowered maximum for a subtle resting smile
    Experimenting with expression parameters in VRChat mirror
    1 / 2

    Sometimes you may want an expression to trigger earlier, stay slightly active all the time, or be exaggerated.

    A good example is smiling. If you want your avatar to keep a slight smile even when your face is mostly relaxed, simply lower the maximum value for the smile parameter.

    I highly recommend just playing VRChat with your avatar, looking in a mirror, and experimenting with the parameter minimums and maximums. The values update live, so you don't need to switch between tabs to see the results.

  10. Improving Tracking - Expression Too Early

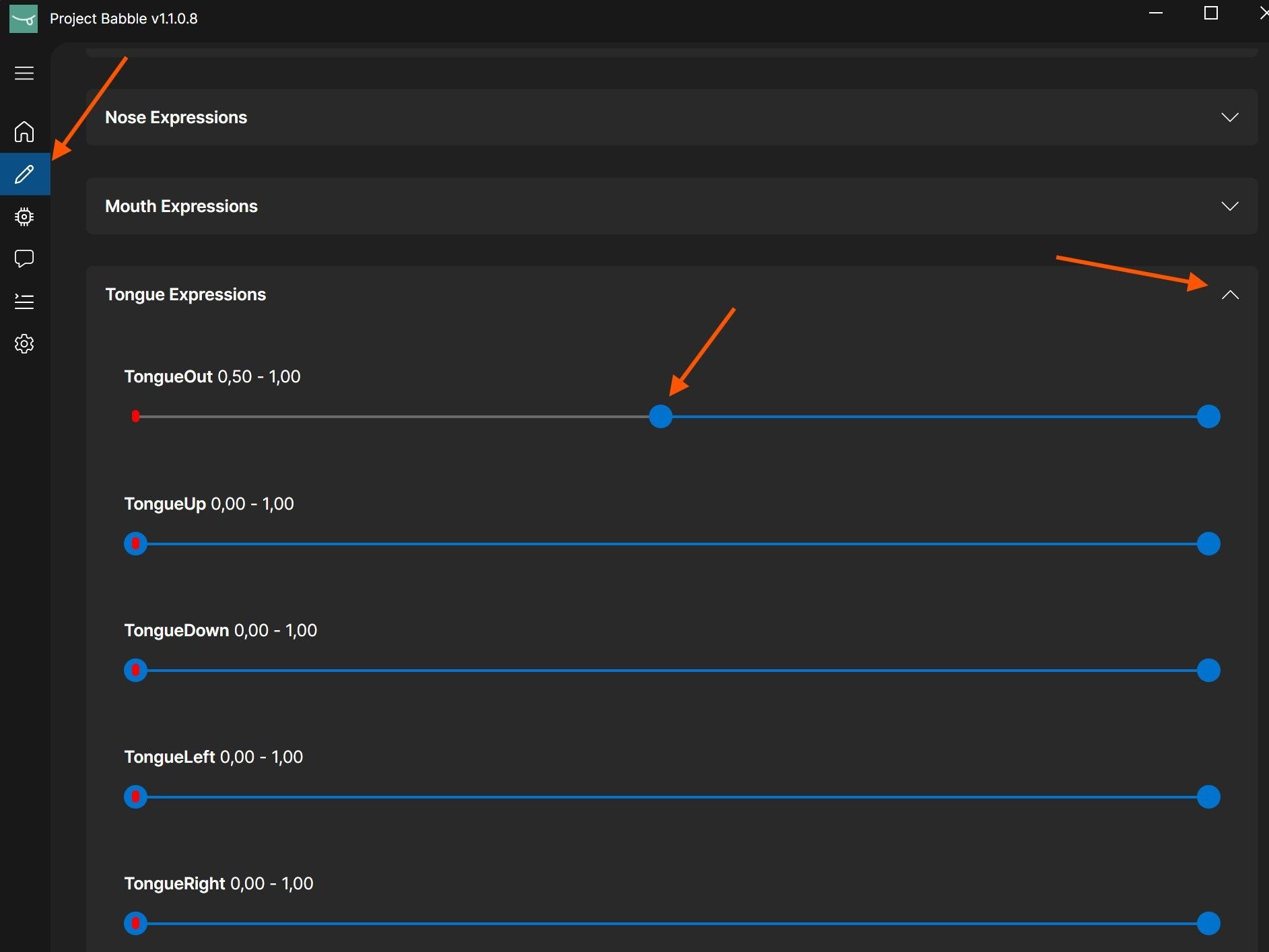

    Adjusting the minimum value to prevent an expression from triggering too early

    Sometimes an expression might trigger too early, for example when you open your mouth and your avatar sticks out the tongue even though you are not actually doing that.

    In those cases, you can adjust the minimum value of the corresponding parameter so the expression only activates when it should.

    I highly recommend just playing VRChat with your avatar, looking in a mirror, and experimenting with the parameter minimums and maximums. The values update live, so you don't need to switch between tabs to see the results.

This section is coming soon. Join our Discord for updates.

This section is coming soon. Join our Discord for updates.
